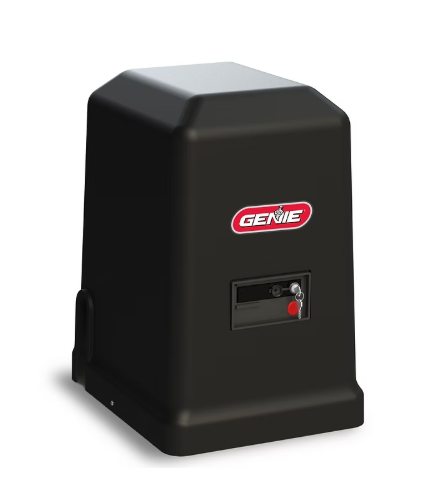

Genie GRSL24V Residential Slide Gate Operator
The Genie GRSL24V is a residential vehicular slide gate operator for select slide gate applications. It is designed for residential gates where the gate length, gate weight, track condition, roller condition, chain alignment, duty cycle, and monitored safety-device layout meet Genie installation specifications.
This is a slide gate operator, not a swing gate operator, garage door opener, barrier arm, access control keypad, or safety device. The GRSL24V must be matched to the gate size, gate weight, gate travel, track condition, chain setup, power source, accessory load, and required entrapment protection before ordering.
Primary Use
- Residential vehicular slide gate automation for select rolling, track-style, or properly supported slide gates
- Residential gates up to 25 ft long or 850 lb where the gate and installation conditions meet Genie specifications
- Applications requiring 24VDC motor operation with line-voltage power and battery backup support
- Installations requiring monitored safety inputs, onboard solar charge controller, Genie Intellicode radio control, and auxiliary relay options
- Supported primary/secondary slide gate applications where Genie documentation confirms the correct dual-gate setup
Compatible With
Use the Genie GRSL24V only where the slide gate and installation site match the operator specifications. Published length and weight ratings do not guarantee proper operation if the gate is dragging, binding, leaning, wind-loaded, poorly supported, or installed with worn rollers, damaged track, or incorrect chain alignment.
- Select residential slide gates up to 25 ft long or 850 lb where Genie installation requirements are met
- Residential vehicular slide gate applications with up to 120 cycles per day where the duty cycle is within specification
- Applications using compatible Genie 315/390 MHz Intellicode transmitters where programmed to the onboard receiver
- Installations requiring monitored safety photo eyes, monitored safety edges, or other approved UL325 entrapment-protection devices
- Solar-capable installations where the solar panel, battery capacity, sun exposure, accessory draw, and daily cycles are properly matched
- Aladdin Connect applications where the optional compatible Wi-Fi board is added and the site has suitable network coverage
- Dual slide gate applications only where the primary/secondary control setup is supported and wired according to Genie documentation
Features and Specifications
| Specification | Details |
| Brand | Genie |
| Model | GRSL24V |
| Product Type | Residential vehicular slide gate operator |
| Gate Type | Residential slide gate |
| Maximum Gate Rating | Up to 25 ft long or 850 lb where the gate and installation conditions meet Genie specifications |
| Daily Cycle Rating | Up to 120 cycles per day |
| Duty Cycle | 50% |
| Motor | 24VDC motor |
| Drive Design | Direct drive motor to worm gear reduction |
| Primary Power | 115VAC, field adjustable to 230VAC where installed according to Genie documentation |
| Battery Backup | Battery backup supported; two 12V 7Ah batteries are commonly listed with the operator |
| Battery Backup Cycles | Up to 150 cycles on fully charged batteries, depending on gate condition, accessory load, temperature, and battery condition |
| Solar Support | Onboard solar charge controller; solar panel and sizing should be confirmed separately |
| Radio Receiver | Advanced 315/390 MHz Genie Intellicode receiver with storage for up to 250 transmitters |
| Accessory Power | 24VDC switched and constant accessory power, up to 800mA combined where specified |
| Safety Inputs | Four monitored safety inputs for approved entrapment-protection devices |
| Auxiliary Relays | Two auxiliary relays, configurable from the LCD interface where supported |
| Control Interface | Dual-line backlit LCD display with adjustable settings |
| Limit System | Electro-mechanical limits designed to stay synced through power loss |
| Timed Functions | Timer-to-close and built-in 7-day timer where configured |
| Dual Gate Function | Primary/secondary control for supported dual slide gate applications |
| Smart Control | Aladdin Connect ready with optional compatible Wi-Fi board |
| Manual Release | Keyed release lever disconnects drive for manual operation |
| Temperature Range | -20 degrees C to +60 degrees C; optional heater may support colder applications where specified |
| UL Listing | UL325 listed for Class I and II applications where installed as required |

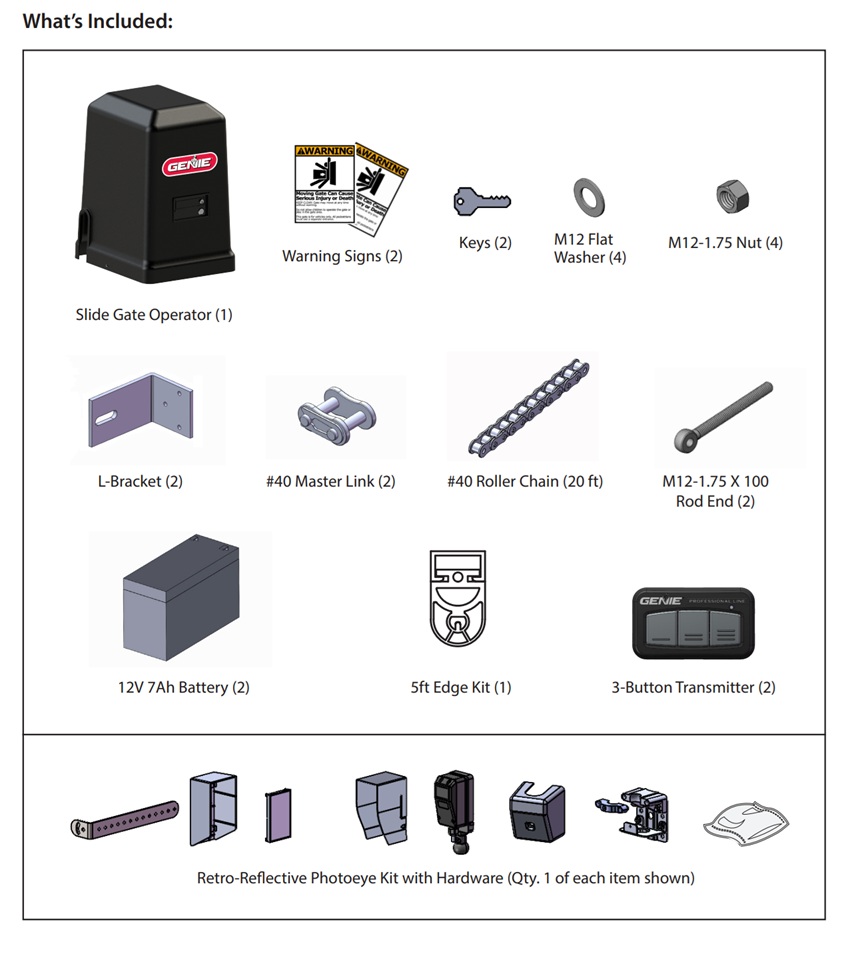

Typical Package Content Notes
Package contents can vary by supplier SKU and production version. Confirm the current package contents before ordering, especially if the installation needs monitored safety devices, chain, mounting hardware, batteries, remotes, solar equipment, heater kit, vehicle detection, or access control accessories.
- Slide gate operator chassis/control enclosure, where included by the supplier package
- Control board and operator drive components, where factory-installed
- Two 12V 7Ah batteries, commonly listed with the GRSL24V operator
- Remote transmitters, monitored safety devices, chain, mounting hardware, and warning signs should be confirmed before ordering
- Optional heater, solar panel, Aladdin Connect Wi-Fi board, keypad, vehicle detector, exit device, and additional safety devices are not assumed included unless specifically listed
Important Comparison With Similar Genie Gate Operators
Genie offers residential slide and swing gate operators with similar 24V features, but the operator type and gate application are different. Confirm the gate style before ordering.
- GRSL24V: Residential slide gate operator for select slide gates up to 25 ft or 850 lb where specifications are met.
- GLA24V: Residential linear actuator swing gate operator. This is for swing gates, not slide gates.
- GRSW24V: Residential swing gate operator in a different swing-arm style. This is not the same as the GRSL24V slide operator.
- Dual GRSL24V setup: Primary/secondary control may be supported, but a dual slide gate job may require a second operator and correct interconnection. Do not assume one operator moves two separate sliding gates.
- Aladdin Connect Wi-Fi board: Optional accessory for smart control readiness. It is not included unless the package specifically lists it.
- Solar panel kit: The operator has an onboard solar charge controller, but the solar panel and sizing should be confirmed separately.
- Safety photo eyes and edges: Required monitored entrapment-protection devices are separate safety components unless specifically included in the package.
Also Known As / Related Part Numbers
- GRSL24V
- Genie GRSL24V
- Genie GRSL24V slide gate operator
- Genie GRSL24V residential slide gate operator
- Genie residential vehicular slide gate operator
- Genie 24VDC slide gate operator
- Genie battery backup slide gate operator
- Genie residential slide gate opener
- Residential Slide Gate Operator
- GLA24V - related Genie residential swing gate operator, not for slide gates
- GRSW24V - related Genie residential swing gate operator, not the same slide operator
Technician Notes
- Check the gate before sizing the operator. A slide gate that is dragging, leaning, binding, or running on damaged track can overload the operator even when the weight rating appears acceptable.
- Inspect the track, V-groove wheels, guide rollers, chain path, idler location, stops, catch post, and gate frame before installation.
- Confirm the full gate travel, tail space, operator pad location, chain height, and drive chain alignment before ordering or mounting the operator.
- Do not overlook wind load. A long solid-panel slide gate can be harder on an operator than an open-frame gate of similar weight.
- Battery backup performance depends on battery age, charge level, gate condition, accessory load, temperature, and the number of cycles during the outage.
- For solar installations, size the solar panel and batteries based on daily cycles, accessory draw, shade, local weather, and recovery time. Do not assume the onboard solar charge controller alone makes every installation solar-ready.
- Confirm monitored safety devices before installation. Slide gates typically require protection for open and close entrapment zones based on the gate layout.
- For primary/secondary slide gate applications, confirm whether the job requires a second operator, proper communication wiring, and correct programming before ordering.
Before Ordering Checklist
- Confirm the exact model is Genie GRSL24V.
- Confirm the application is a residential slide gate, not a swing gate.
- Confirm the gate is within the 25 ft or 850 lb rating and rolls freely by hand.
- Confirm the daily cycle requirement is within the 120 cycles per day rating.
- Inspect track condition, wheels, guide rollers, chain path, stops, catch post, gate alignment, and operator mounting pad location.
- Confirm line voltage requirements, including 115VAC or field-adjusted 230VAC setup by a qualified installer.
- Confirm required monitored photo eyes, safety edges, warning signs, and other UL325 safety devices for the specific slide gate layout.
- Confirm whether the package includes batteries, remotes, chain, mounting hardware, monitored photo eyes, keys, warning signs, and installation hardware.
- Confirm whether optional items such as Aladdin Connect Wi-Fi, solar panel, heater kit, keypad, exit loop, vehicle sensor, receiver, or additional safety devices are needed.
- Confirm whether a primary/secondary dual-slide setup requires a second operator and additional wiring or accessories.
Professional Advisory
A slide gate operator installation involves moving gate panels, pinch points, monitored safety devices, high-voltage line power, low-voltage controls, batteries, solar charging, radio programming, chain alignment, limit setup, and possible access control wiring. Installation should be performed by a qualified gate operator technician, especially where the gate is heavy, wind-loaded, dual-slide, damaged, or connected to access control, fire access, vehicle detection, or safety equipment. Do not bypass monitored photo eyes, safety edges, inherent entrapment protection, warning devices, fuses, grounding, or operator control protections.
Product Q&A
What type of gate is the Genie GRSL24V made for?
The Genie GRSL24V is made for select residential vehicular slide gates. It should be installed only where the gate length, gate weight, track condition, roller condition, chain setup, and safety-device layout match Genie specifications.
What size gate can the Genie GRSL24V operate?
The GRSL24V is rated for slide gates up to 25 ft long or 850 lb where the gate is properly built, aligned, and free-rolling. Track damage, worn rollers, wind load, poor alignment, and chain issues can reduce real-world performance.
Is the Genie GRSL24V for swing gates?
No. The Genie GRSL24V is a slide gate operator. For Genie residential swing gate applications, compare against GLA24V or GRSW24V where the gate layout and specifications match.
Does the Genie GRSL24V include battery backup?
Yes. The GRSL24V supports battery backup and is commonly listed with two 12V 7Ah batteries. Backup performance depends on battery condition, gate condition, accessory load, temperature, and the number of cycles during an outage.
Is the Genie GRSL24V solar compatible?
The GRSL24V includes an onboard solar charge controller, but the solar panel and battery sizing must be matched to the site. Shade, accessory load, daily cycles, and local weather can affect solar performance.
Does the Genie GRSL24V work with Aladdin Connect?
The GRSL24V is Aladdin Connect ready when the compatible optional Wi-Fi board is added. Do not assume Wi-Fi control is included with the base operator unless the package contents specifically list the Wi-Fi board.
What safety devices are needed with the Genie GRSL24V?
The GRSL24V has monitored safety inputs and must be installed with the required entrapment-protection devices for the slide gate layout. Photo eyes, safety edges, warning signs, and other safety devices should not be bypassed or omitted.
