Genie GRSW24V Residential Swing Gate Operator
The Genie GRSW24V is a residential vehicular swing gate operator designed for select swing gate applications. It uses an articulated-arm operator design and should be matched to the gate weight, gate length, hinge condition, post layout, opening angle, duty cycle, and safety-device requirements before ordering.
This is a residential swing gate operator, not a slide gate operator, garage door opener, barrier arm, access control keypad, or safety device. The GRSW24V must be installed with the proper power, brackets, monitored entrapment protection, gate stops, operator settings, and accessory wiring required for the specific site.
Primary Use
- Residential vehicular swing gate automation for select swing gate installations
- Articulated-arm style operation where the gate and post layout match Genie requirements
- Residential swing gates up to 16 ft wide or 1000 lb where the gate rating chart and site conditions confirm fitment
- Single swing gate installations where one operator is required, depending on package configuration
- Dual swing gate installations where a proper primary/secondary setup is supported and the required additional equipment is included or ordered separately
- Applications requiring monitored safety inputs, battery backup, onboard solar charge control, auxiliary relays, and Genie Intellicode receiver support
Compatible With
Use the Genie GRSW24V only where the gate and installation site match the operator specifications. A published gate rating does not guarantee proper operation if the gate is dragging, binding, sagging, wind-loaded, poorly hinged, or installed with incorrect arm geometry.
- Select residential vehicular swing gates where the gate weight and gate length are within Genie specifications
- Residential swing gate applications with up to 250 cycles per day where the duty cycle is within specification
- Applications using compatible Genie 315/390 MHz Intellicode transmitters where programmed to the onboard receiver
- Installations requiring monitored photo eyes, monitored safety edges, or other approved UL325 entrapment-protection devices
- Dual gate applications where Genie primary/secondary control is supported and the correct second operator, wiring, wireless link, or accessories are used
- Solar-capable installations where the solar panel, battery capacity, sun exposure, accessory load, and daily cycles are properly matched
- Aladdin Connect applications where the optional compatible Wi-Fi board is added and the site has suitable network coverage
Features and Specifications
| Specification | Details |
| Brand | Genie |
| Model | GRSW24V |
| Product Type | Residential vehicular swing gate operator |
| Operator Style | Articulated-arm swing gate operator |
| Gate Type | Residential vehicular swing gate |
| Maximum Gate Rating | Up to 16 ft wide or 1000 lb where the gate rating chart and installation conditions are within Genie specifications |
| Gate Weight / Length Chart | 1000 lb at 6 ft, 800 lb at 8 ft, 700 lb at 10 ft, 600 lb at 12 ft, 500 lb at 14 ft, and 400 lb at 16 ft where site conditions allow |
| Daily Cycle Rating | Up to 250 cycles per day |
| Duty Cycle | 50% |
| Motor | 24VDC motor |
| Drive Design | Direct drive motor to dual gearboxes with worm-in-oil-bath reduction |
| Primary Power | 115VAC, field adjustable to 230VAC where installed according to Genie documentation |
| Battery Backup | Battery backup supported; two 12V 7Ah batteries are commonly listed with the operator |
| Battery Backup Cycles | Up to 150 cycles on fully charged batteries, depending on gate condition, accessory load, temperature, and battery condition |
| Optional Battery Upgrade | 33Ah batteries may be supported as an option where installed according to Genie documentation |
| Solar Support | Onboard solar charge controller; solar panel and sizing should be confirmed separately |
| Radio Receiver | Advanced 315/390 MHz Genie Intellicode receiver with storage for up to 250 transmitters |
| Accessory Power | 24VDC switched and constant accessory power, up to 800mA combined where specified |
| Safety Inputs | Four monitored safety inputs for approved entrapment-protection devices |
| Auxiliary Relays | Two auxiliary relays, configurable from the LCD interface where supported |
| Control Interface | Dual-line backlit LCD display with adjustable settings |
| Limit System | Electro-mechanical limits designed to stay synced through power loss |
| Manual Release | Adjustable clutch hub with manual release lever |
| Service Access | Split cover allows access to the operator without removing the arm |
| Dual Gate Function | Primary/secondary control for supported dual swing gate applications |
| Timed Functions | Timer-to-close and built-in 7-day timer where configured |
| Smart Control | Aladdin Connect ready with optional compatible Wi-Fi board |
| Temperature Range | -20 degrees C to +60 degrees C; optional heater may support colder applications where specified |
| UL Listing | UL325 listed for Class I and II applications where installed as required |

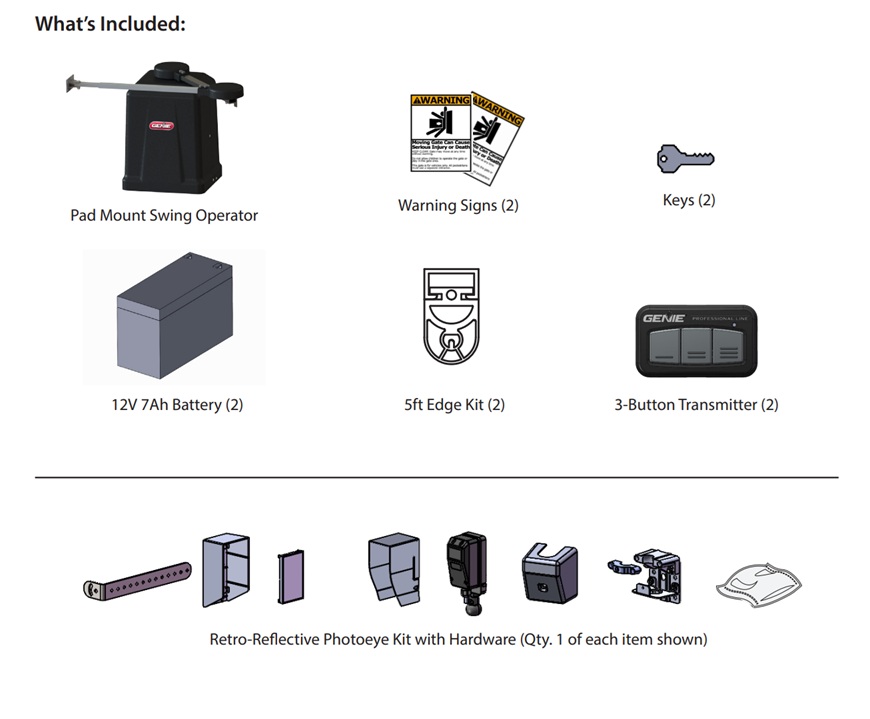

Typical Package Content Notes
Package contents can vary by supplier SKU and production version. Confirm the current package contents before ordering, especially if the installation needs a second operator, monitored safety devices, brackets, mounting hardware, remotes, solar equipment, batteries, or access control accessories.
- GRSW24V swing gate operator, where included by the supplier package
- Operator arm components, where included by the supplier package
- Two 12V 7Ah batteries, commonly listed with the GRSW24V operator
- Control electronics and enclosure components, where factory-installed
- Remote transmitters, monitored safety devices, post mounting kit, wireless primary/secondary link, heater kit, solar panel, and Wi-Fi board should be confirmed separately before ordering
Important Comparison With Similar Genie Gate Operators
Genie offers residential swing and slide gate operators with similar 24V controls, but the operator style and gate application are different. Confirm the gate type and arm style before ordering.
- GRSW24V: Residential articulated-arm swing gate operator for select residential vehicular swing gates.
- GLA24V: Residential linear actuator swing gate operator. This is a different swing operator style and should not be treated as the same as the GRSW24V.
- GRSL24V: Residential slide gate operator. This is for slide gates, not swing gates.
- Dual GRSW24V setup: Primary/secondary control is supported where properly configured, but a dual swing gate installation may require additional operator hardware or a wireless primary/secondary link.
- Aladdin Connect Wi-Fi board: Optional accessory for smart control readiness. It is not included unless the package specifically lists it.
- Solar panel kit: The operator has an onboard solar charge controller, but the solar panel and sizing should be confirmed separately.
- Safety photo eyes and edges: Required monitored entrapment-protection devices are separate safety components unless specifically included in the package.
Also Known As / Related Part Numbers
- GRSW24V
- Genie GRSW24V
- Genie GRSW24V swing gate operator
- Genie GRSW24V residential swing gate operator
- Genie residential vehicular swing gate operator
- Genie 24VDC swing gate operator
- Genie articulated arm swing gate operator
- Genie residential swing gate opener
- Residential Swing Gate Operator
- GLA24V - related Genie linear actuator swing gate operator, not the same operator style
- GRSL24V - related Genie residential slide gate operator, not for swing gates
Technician Notes
- Check the gate before selecting the operator. A gate that sags, drags, binds, flexes, or has worn hinges can overload the operator even when the weight rating appears acceptable.
- Use the gate weight and length chart instead of only the maximum 1000 lb rating. Longer gates have lower allowable weight ratings.
- Inspect hinge condition, gate stops, post strength, opening angle, arm clearance, and mounting surface before installation.
- Do not overlook wind load. A solid-panel swing gate can be harder on the operator than an open-frame gate of similar weight.
- Plan primary/secondary wiring or wireless primary/secondary link requirements before quoting a dual swing gate installation.
- Battery backup performance depends on battery condition, gate condition, accessory load, temperature, and the number of cycles during the outage.
- For solar installations, size the solar panel and batteries based on daily cycles, accessory draw, shade, local weather, and recovery time. The onboard solar charge controller does not make every site suitable for solar by itself.
- Confirm monitored safety devices before installation. Swing gates may create entrapment zones in both open and close directions, depending on the layout.
Before Ordering Checklist
- Confirm the exact model is Genie GRSW24V.
- Confirm the application is a residential swing gate, not a slide gate.
- Confirm the gate weight and gate length are within the Genie rating chart.
- Confirm the gate swings freely by hand and is not dragging, binding, sagging, or wind-loaded beyond the operator rating.
- Confirm hinge condition, gate stops, post strength, opening angle, arm clearance, and mounting dimensions.
- Confirm whether the installation is single-leaf or dual-leaf and whether a second operator, wireless primary/secondary link, or extra accessories are needed.
- Confirm line voltage requirements, including 115VAC or field-adjusted 230VAC setup by a qualified installer.
- Confirm required monitored photo eyes, safety edges, warning signs, and other UL325 safety devices for the specific swing gate layout.
- Confirm whether the package includes batteries, remotes, brackets, post mounting kit, monitored safety devices, keys, warning signs, or installation hardware.
- Confirm whether optional items such as Aladdin Connect Wi-Fi, solar panel, heater kit, keypad, exit loop, vehicle sensor, receiver, 33Ah batteries, or additional safety devices are needed.
Professional Advisory
A swing gate operator installation involves moving gate panels, pinch points, monitored safety devices, high-voltage line power, low-voltage controls, batteries, solar charging, radio programming, limit setup, arm geometry, and possible access control wiring. Installation should be performed by a qualified gate operator technician, especially where the gate is heavy, wind-loaded, dual-leaf, damaged, or connected to access control, fire access, vehicle detection, or safety equipment. Do not bypass monitored photo eyes, safety edges, inherent entrapment protection, warning devices, fuses, grounding, or operator control protections.
Product Q&A
What type of gate is the Genie GRSW24V made for?
The Genie GRSW24V is made for select residential vehicular swing gates. It uses an articulated-arm operator design and should be installed only where the gate weight, gate length, hinges, post layout, and safety-device setup match Genie specifications.
What size gate can the Genie GRSW24V operate?
The GRSW24V is rated for swing gates up to 16 ft wide or 1000 lb, but the allowed weight drops as gate length increases. Verify the gate using the Genie weight and length chart before ordering.
Is the Genie GRSW24V the same as the Genie GLA24V?
No. GRSW24V is an articulated-arm swing gate operator, while GLA24V is a linear actuator swing gate operator. The correct model depends on the gate layout, mounting geometry, clearance, and installation requirements.
Can the Genie GRSW24V be used on dual swing gates?
GRSW24V supports primary/secondary control for dual gates where properly configured, but a dual installation may require a second operator, proper wiring, wireless primary/secondary link, or additional accessories. Confirm the package and layout before ordering.
Does the Genie GRSW24V include battery backup?
Yes. The GRSW24V supports battery backup and is commonly listed with two 12V 7Ah batteries. Backup performance depends on battery condition, gate condition, accessory load, temperature, and the number of cycles during an outage.
Is the Genie GRSW24V solar compatible?
The GRSW24V includes an onboard solar charge controller, but the solar panel and battery sizing must be matched to the site. Shade, accessory draw, daily cycles, weather, and battery capacity all affect solar performance.
What safety devices are needed with the Genie GRSW24V?
The GRSW24V has monitored safety inputs and must be installed with the required entrapment-protection devices for the swing gate layout. Photo eyes, safety edges, warning signs, and other safety devices should not be bypassed or omitted.
