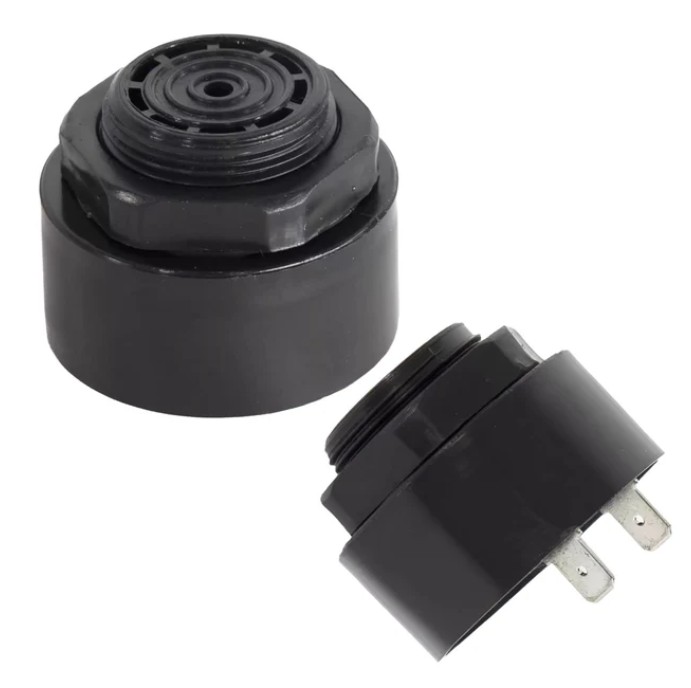

HySecurity MX001036 Piezo Buzzer Details
The HySecurity MX001036 is a replacement piezo buzzer used on select HySecurity gate operator assemblies. This buzzer is commonly associated with the operator's audible alert or warn-before-operate function, helping provide sound output when the operator is preparing to move, alerting, or responding to certain control conditions.
This is an electrical warning component, not a complete controller, siren assembly, alarm system, or safety sensor. It is commonly ordered when the existing buzzer is missing, physically damaged, no longer producing sound, producing weak sound, buzzing intermittently, or has failed after exposure to moisture, corrosion, wiring damage, or age.
Official HySecurity parts diagrams identify MX001036 as a piezo buzzer for WedgeSmart DC and StrongArmPark DC models. Public distributor listings also associate MX001036 with several additional HySecurity operator families. Because HySecurity operators vary by model, generation, control board, and parts diagram, this buzzer should be matched by part number and operator documentation before ordering.
Compatible With
The HySecurity MX001036 piezo buzzer is commonly associated with the following operator and service applications:
- HySecurity WedgeSmart DC operators where the parts diagram calls for MX001036
- HySecurity StrongArmPark DC operators where the parts diagram calls for MX001036
- Nice HySecurity operator assemblies using MX001036 as the piezo buzzer
- Warn-before-operate audible alert applications on compatible HySecurity operators
- Electrical service repairs where the original buzzer is identified as MX001036
- Select Smart DC control box applications that use the MX001036 buzzer
Additional Publicly Listed Operator Associations
Some public distributor listings also associate the HySecurity MX001036 buzzer with the following operator families. Verify the exact parts diagram before using this buzzer on these models:
- HySecurity StrongArmPark DC
- HySecurity SlideSmart DC
- HySecurity SlideDriver
- HySecurity SwingSmart DC
- HySecurity SwingRiser
- HySecurity HydraSwing
- HySecurity HydraLift
- HySecurity WedgeSmart DC
- HySecurity StrongArmCrash
- HySecurity HydraWedge
- HySecurity HydraSupply XL
Not Intended For
- Replacing a Smart DC controller board, power supply board, relay board, detector, transformer, or complete electrical assembly.
- Replacing monitored entrapment protection devices such as photo eyes, safety edges, vehicle loops, or monitored sensors.
- Silencing an operator by bypassing a required warning function or safety-related audible alert.
- Universal buzzer replacement where voltage, wiring, connector style, mounting style, and control board output have not been verified.
- Operators with control board faults, wiring damage, incorrect settings, or active alarm conditions that are causing the buzzer to sound continuously.
- Any HySecurity operator model where MX001036 is not shown in the correct parts diagram.
Important Ordering Warnings
- Confirm the exact HySecurity part number before ordering. This listing is for MX001036.
- Official HySecurity parts diagrams identify MX001036 as a piezo buzzer on WedgeSmart DC and StrongArmPark DC operator assemblies.
- Broader compatibility lists may appear in distributor listings, but the operator parts diagram should be used as the final fitment check.
- Do not order by appearance alone. Piezo buzzers can look similar but may differ in voltage, tone type, mounting style, connector style, and control board compatibility.
- If the buzzer is sounding continuously, the buzzer may not be the failed part. The control board may be commanding the buzzer because of an alarm, fault, setting, or safety condition.
- Do not bypass or disable audible warning functions that are required for the operator's safe operation.
- Disconnect all power sources before servicing internal electrical components.
Features & Specifications
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX001036 |
| Product Type | Piezo Buzzer / Audible Warning Device |
| Common Description | Buzzer, Piezo / Piezo Buzzer Warn Before Operate |
| Application | Audible alert or warn-before-operate sound output on compatible HySecurity operators |
| Official Parts Diagram References | WedgeSmart DC and StrongArmPark DC diagrams list MX001036 as Buzzer, Piezo |
| Commonly Listed Operator Families | Select HySecurity Smart DC and HySecurity operator families where MX001036 is shown in the parts diagram |
| Function | Produces audible buzzer tone when commanded by the operator control system |
| Included Items | Piezo buzzer only, unless otherwise stated by the product listing |
| Accessory Type | Warning device / audible indicator |
| Important Notes | Verify operator model, wiring, connector style, control board output, and parts diagram before ordering. |
Also Known As / Related Part Numbers
- HySecurity MX001036
- Nice HySecurity MX001036
- MX001036
- HySecurity Buzzer, Piezo
- Buzzer, Piezo
- HySecurity Piezo Buzzer
- Piezo Buzzer Warn Before Operate
- HySecurity Piezo Buzzer Warn Before Operate
- Warn Before Operate Buzzer
- HySecurity Audible Warning Buzzer
- HySecurity Warning Device Buzzer
- HYP-MX001036 - related distributor SKU format used by some sellers
Common Related Items
Depending on the reason the buzzer is being replaced, the following related components may also need to be inspected:
- Smart DC controller board or operator control board
- Buzzer wiring and connectors
- Power supply board or low-voltage power circuit
- Operator alarm or warn-before-operate settings
- Switch, hold open / hold close, where used on the operator
- On/off switch or internal reset switch, depending on operator model
- Vehicle detector or safety-related input devices if the buzzer is sounding because of a fault
- Operator cover, enclosure, or internal mounting hardware if the buzzer was physically damaged
Technician Note
A failed buzzer and an active operator alert can look similar from the outside. If the buzzer is silent when it should sound, inspect the buzzer, wiring, connector, and control board output. If the buzzer is sounding continuously, check the operator display, fault history, safety inputs, control settings, and alarm conditions before assuming the buzzer is defective.
The audible warning function may be part of the operator's normal warning sequence. Do not remove, bypass, or intentionally disable a required warning device just to quiet the operator. If the sound is abnormal or continuous, the correct repair is to diagnose why the operator is commanding the buzzer.
Before Ordering, Confirm
- The required replacement part number is HySecurity MX001036.
- The operator parts diagram identifies MX001036 as the correct piezo buzzer.
- The operator model and generation match the intended application.
- The buzzer wiring and connector are not damaged, loose, corroded, or cut.
- The control board output is actually commanding the buzzer when expected.
- The buzzer is not sounding because of an active fault, alarm, setting, or safety input condition.
- The replacement is for the buzzer only, not a complete controller, power supply, or safety device.
- The audible warning function is not being bypassed or disabled as part of the repair.
Professional Advisory
Replacing a piezo buzzer requires access to internal operator electrical components. Disconnect all power sources before service, including AC power, DC battery power, and any connected solar charging circuit. Gate operators can move unexpectedly if power remains connected or if the control system receives an input command during service.
If the operator is beeping continuously, showing faults, failing to move, or giving repeated warning tones, troubleshooting should be handled by a qualified gate technician. The buzzer may only be reporting a condition from the control system, not causing the problem.
Product Questions & Answers
What is the HySecurity MX001036 used for?
The HySecurity MX001036 is a piezo buzzer used as an audible warning or alert device on select HySecurity gate operators.
Is MX001036 the warn-before-operate buzzer?
Yes. Public listings commonly describe MX001036 as a HySecurity piezo buzzer for warn-before-operate sound output.
Which HySecurity operators use MX001036?
Official parts diagrams list MX001036 for WedgeSmart DC and StrongArmPark DC operators. Public distributor listings also associate it with several additional HySecurity operator families. Always verify the operator parts diagram before ordering.
Is this a control board or alarm module?
No. MX001036 is the piezo buzzer only, unless the product listing states otherwise. The control board, power supply, wiring, and other alarm-related components are separate parts.
Why is my HySecurity operator beeping continuously?
A continuous or repeated buzzer sound may be caused by an operator fault, warning condition, safety input, setting, or control board command. The buzzer may be reporting the issue rather than causing it.
Can I bypass the buzzer if it is annoying?
No. Do not bypass or disable an audible warning device that is part of the operator's safety or warning sequence. Diagnose the reason for the sound instead.
What should I check before replacing the buzzer?
Check the operator model, parts diagram, buzzer wiring, connector condition, control board output, and any active fault or warning condition before replacing the buzzer.
