HySecurity MX001743 Taper Clamp Assembly Details

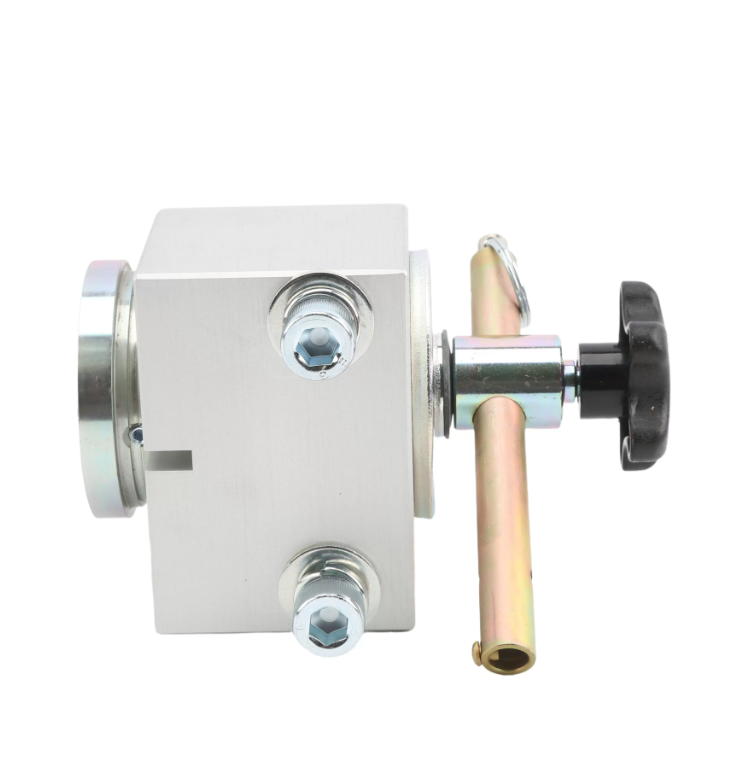

The HySecurity MX001743 is a replacement taper clamp assembly used on HySecurity SwingSmart DC gate operators. This assembly is commonly listed as a SwingSmart DC taper clamp assembly and includes the male hub, female hub, and tightening hardware needed for the taper clamp connection.
The taper clamp assembly is part of the SwingSmart DC arm connection system. It helps secure the gate arm while allowing the clamp setting to be adjusted during installation or service. On a SwingSmart DC operator, the taper clamp acts like an adjustable clutch-style connection. When properly set, it helps the arm stay secure during normal operation while still allowing the assembly to respond correctly during certain impact or gate-strike conditions.
This is a mechanical replacement assembly, not a complete actuator, motor, gearbox, control board, or full operator kit. It is commonly ordered when the original taper clamp assembly is worn, damaged, slipping, missing hardware, seized, stripped, over-tightened, or damaged from a gate impact or service issue.
Compatible With
The HySecurity MX001743 taper clamp assembly is commonly associated with the following operator and service applications:
- HySecurity SwingSmart DC gate operators
- Nice HySecurity SwingSmart DC operator assemblies
- SwingSmart DC taper clamp assembly repairs
- SwingSmart DC gate arm connection service
- SwingSmart DC arm/clutch-style connection hardware where the parts diagram calls for MX001743
- Replacement of an original taper clamp assembly identified as MX001743
Not Intended For
- HySecurity SlideSmart, SlideDriver, StrongArm, StrongArmPark, HydraSwing, HydraWedge, HydraLift, WedgeSmart, SwingRiser, or barrier operators unless the correct parts diagram specifically calls for MX001743.
- Replacing a complete SwingSmart DC gate arm, actuator, motor, gearbox, control board, or operator assembly.
- Correcting a gate that is dragging, binding, out of level, hitting a hard stop incorrectly, or overloading the operator.
- Universal clamp replacement where hub fit, shaft fit, arm connection, and tightening hardware have not been verified.
- Replacing damaged gate stops, worn arm hardware, broken mounting brackets, or bent gate arms unless those parts are ordered separately.
- Bypassing or defeating the intended taper clamp function by over-tightening or modifying the assembly.
Important Ordering Warnings
- Confirm the exact HySecurity part number before ordering. This listing is for MX001743.
- Public HySecurity parts listings identify MX001743 as a SwingSmart DC taper clamp assembly.
- This assembly is commonly listed as including the male hub, female hub, and tightening hardware.
- Do not order by appearance alone. Taper clamp assemblies can look similar but may differ by hub size, shaft fit, arm connection, and operator model.
- If the clamp slipped, seized, or was damaged, inspect the gate arm, hubs, taper handle, stops, hardware, and gate movement before installing the replacement.
- Do not over-tighten the taper clamp to compensate for a bad gate, poor geometry, or missing mechanical stop.
- Disconnect all power sources before servicing internal or moving operator parts.
Features & Specifications
| Manufacturer | HySecurity / Nice HySecurity |
| Part Number | MX001743 |
| Product Type | Taper Clamp Assembly |
| Common Description | Clamp Assembly, Taper / Tapered Clamp Assembly |
| Application | SwingSmart DC gate arm taper clamp connection |
| Compatible Operator Family | HySecurity SwingSmart DC, where MX001743 is shown in the parts diagram |
| Included Items | Commonly listed with male hub, female hub, and tightening hardware |
| Function | Secures the SwingSmart DC gate arm connection and allows taper clamp adjustment |
| Operator Type | Swing gate operator |
| Adjustment Note | Taper clamp setting should follow the SwingSmart DC installation/service instructions and should not be over-tightened |
| Important Notes | Verify operator model, parts diagram, arm assembly condition, hub condition, and gate movement before ordering. |
Also Known As / Related Part Numbers
- HySecurity MX001743
- Nice HySecurity MX001743
- MX001743
- HySecurity Clamp Assembly, Taper
- HySecurity Taper Clamp Assembly
- HySecurity Tapered Clamp Assembly
- Clamp Assembly, Taper
- Clamp, Tapered, Assembly
- SwingSmart DC Taper Clamp Assembly
- SwingSmart DC Clamp Assembly, Taper
- SwingSmart DC tapered clamp assembly with male and female hubs
- HYS-MX001743 - related distributor SKU format used by some sellers
Common Related Items
Depending on the cause of the clamp issue, the following related components may also need to be inspected:
- SwingSmart DC gate arm assembly
- Taper handle and tightening hardware
- Male and female hub contact surfaces
- Gate arm mounting hardware
- Mechanical gate stops
- SwingSmart DC limit switch hardware
- Drive assembly and gearbox output components
- Operator mounting hardware and gate bracket hardware
- Gate hinges, posts, stops, and arm geometry
Technician Note
A taper clamp problem is often tied to adjustment, gate impact, or gate geometry. If the clamp is slipping, do not immediately over-tighten it. Inspect the gate arm connection, hub surfaces, taper handle, tightening hardware, and mechanical stops. A gate that is binding, hitting a stop incorrectly, or flexing heavily can cause repeat clamp movement or damage.
The SwingSmart DC manual describes setting the taper clamp with the gate positioned around 45 degrees and then simulating a gate strike to confirm the clutch setting. That adjustment should be done carefully. Too loose and the arm may slip during normal operation; too tight and the assembly may not respond the way it should during an impact.
Before Ordering, Confirm
- The required replacement part number is HySecurity MX001743.
- The operator is a compatible HySecurity SwingSmart DC model.
- The parts diagram calls for the MX001743 taper clamp assembly.
- The existing taper clamp assembly, hubs, or tightening hardware are damaged, missing, stripped, seized, or worn.
- The gate arm assembly is not bent, cracked, or damaged.
- The hub contact surfaces are not excessively worn or contaminated.
- The mechanical gate stops are present and correctly positioned.
- The gate swings freely and is not binding or overloading the operator.
- You are ordering the taper clamp assembly only, not a complete gate arm, actuator, motor, or operator.
Professional Advisory
Taper clamp service involves the operator arm connection and moving gate hardware. Disconnect all power sources before service, including AC power, DC battery power, and any connected solar charging circuit. A swing gate can move unexpectedly if power remains connected or if the gate is under load.
After replacing or adjusting the taper clamp assembly, the arm connection, gate movement, travel limits, mechanical stops, and safety devices should be checked before returning the operator to service. If the clamp continues to slip, the gate strikes the stop hard, or the arm geometry is unclear, the repair should be handled by a qualified gate technician.
Product Questions & Answers
What is the HySecurity MX001743 used for?
The HySecurity MX001743 is a taper clamp assembly used on SwingSmart DC gate operators as part of the gate arm connection system.
What is included with MX001743?
Public listings commonly describe MX001743 as including the male hub, female hub, and tightening hardware for the SwingSmart DC taper clamp assembly.
Does MX001743 fit all HySecurity operators?
No. MX001743 is commonly associated with SwingSmart DC operators. Other HySecurity operator families should only be listed as compatible if the correct parts diagram calls for this part.
Is this a complete gate arm assembly?
No. This is the taper clamp assembly only, unless the product listing states otherwise. Gate arms, actuators, motors, gearboxes, and complete operators are separate parts.
Why does the taper clamp slip?
Common causes include loose adjustment, worn hub surfaces, missing or damaged tightening hardware, gate impact, incorrect arm geometry, missing stops, or a gate that is binding and overloading the arm connection.
Can I just tighten the taper clamp more?
Only adjust the clamp according to the SwingSmart DC instructions. Over-tightening can create problems during gate impact or service conditions, so the gate, stops, and arm hardware should be checked first.
What should I inspect before replacing the taper clamp assembly?
Inspect the gate arm, hubs, tightening hardware, taper handle, mechanical stops, gate hinges, operator mounting, and overall gate movement before replacing or adjusting the clamp assembly.
