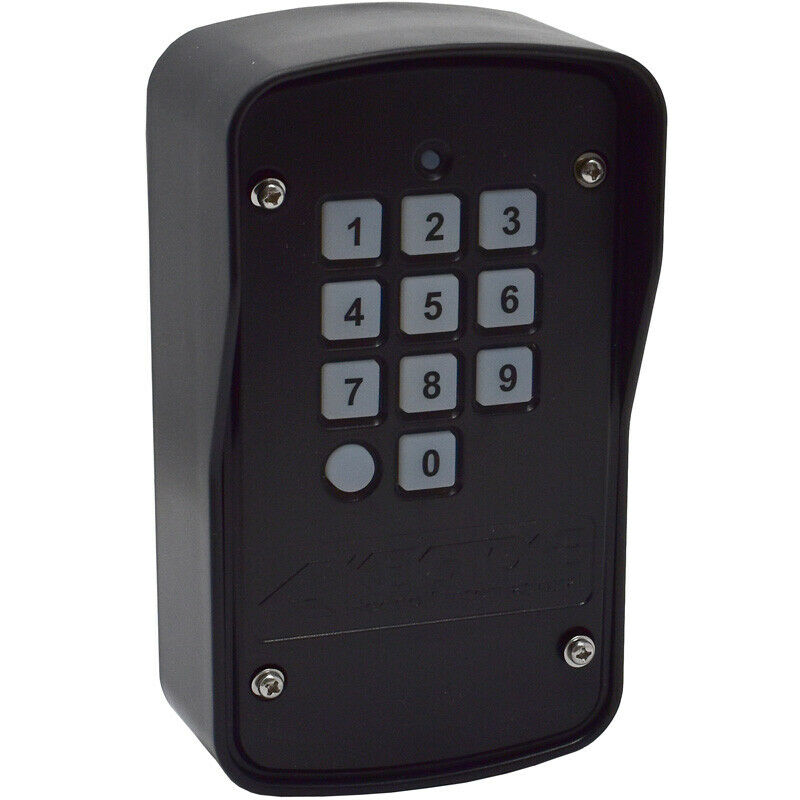

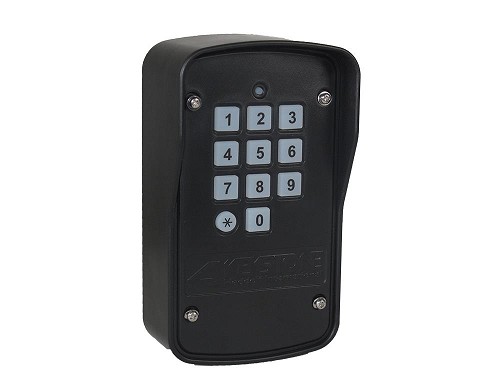

KeyStone / Heddolf Wireless Keypad - Works with Multi-Code 109020, 109950, 109920 Receivers
The Keystone / Heddolf Wireless Keypad is a 300 MHz keypad designed for compatible Multi-Code 10-switch receiver systems. It is commonly used with Multi-Code 109020, 109950, and 109920 receivers to add keypad entry to a gate operator, garage door opener, commercial door operator, or access-control installation.
This keypad is commonly associated with the Heddolf / Keystone M330-1KB style keypad. It is designed for Multi-Code-compatible fixed-code receiver systems, not for modern rolling-code garage door openers that program directly with a learn button. The receiver must support the correct 300 MHz Multi-Code 10-switch format for the keypad to work properly.
The keypad supports a master code along with up to 60 individual four-digit user codes. That makes it a good option for small communities, private gates, service entrances, commercial properties, shops, warehouses, and controlled-entry locations where several users need keypad access without handing out individual remote controls.
What This Keypad Does
The keypad sends a wireless 300 MHz Multi-Code signal to a compatible receiver. When a valid code is entered, the receiver provides the relay output to the connected gate operator, garage door opener, commercial door operator, or access-control device.
The keypad itself does not operate the gate or door directly. It communicates with a compatible receiver, and the receiver is what connects to the operator or control equipment. If there is no compatible Multi-Code receiver on the system, one must be installed separately.
Compatible With
This Keystone / Heddolf wireless keypad is intended for compatible 300 MHz Multi-Code 10-switch receiver applications. Compatibility depends on the receiver model, frequency, coding format, wiring, power, and operator input being used.
- Multi-Code 109020 receiver applications
- Multi-Code 109950 receiver applications
- Multi-Code 109920 receiver applications
- Multi-Code 300 MHz 10-switch compatible receiver systems
- Linear Multi-Code fixed-code receiver systems where keypad compatibility is confirmed
- Gate operators connected to a compatible Multi-Code receiver
- Garage door openers connected to a compatible Multi-Code receiver
- Commercial door operators connected to a compatible Multi-Code receiver
- Access-control installations using a compatible 300 MHz Multi-Code receiver
This keypad should be matched to the receiver, not only to the gate operator or garage door opener brand. A LiftMaster, Linear, Genie, DoorKing, All-O-Matic, Viking, FAAC, HySecurity, or other operator may use this keypad only if a compatible Multi-Code receiver is installed and wired correctly.
Receiver Compatibility Notes
- Multi-Code 109020: Common 1-channel receiver used in select garage door and gate operator applications.
- Multi-Code 109950: Common 1-channel gate receiver often used in 12-24V AC/DC operator applications.
- Multi-Code 109920: Common 1-channel 110V gate receiver application.
Verify the exact receiver model before ordering. Multi-Code receivers can look similar, but power input, mounting style, relay wiring, and receiver frequency may differ by model.
Not Compatible With
- LiftMaster Security+ rolling-code systems without a compatible Multi-Code receiver
- LiftMaster Security+ 2.0 systems without a compatible Multi-Code receiver
- MyQ garage door openers without a compatible external Multi-Code receiver
- Genie Intellicode systems without a compatible Multi-Code receiver
- Linear MegaCode receivers
- Linear Delta-3 receivers unless a compatible Multi-Code receiver is installed
- Digi-Code receivers using a different format or frequency
- Stanley 310 MHz systems unless the receiver specifically supports the required Multi-Code format
- 390 MHz fixed-code receiver systems
- 315 MHz fixed-code receiver systems
- Encrypted, rolling-code, or smart opener systems unless a compatible 300 MHz Multi-Code receiver is used
Important Compatibility Warning
This keypad is for compatible Multi-Code 300 MHz 10-switch receiver systems. It should not be ordered just because the gate opener or garage door opener has a keypad input. The system must have a compatible receiver that can accept the keypad signal.
The most common ordering mistake is confusing Multi-Code 300 MHz equipment with other fixed-code or rolling-code systems. Multi-Code, MegaCode, Delta-3, Security+, Security+ 2.0, MyQ, Intellicode, and Stanley-style systems are not automatically interchangeable.
Features & Specifications
| Feature / Specification | Details |
| Brand | Keystone / Heddolf |
| Common Model Reference | M330-1KB |
| Product Type | Wireless access keypad |
| Frequency | 300 MHz |
| Code Format | Multi-Code 10-switch compatible fixed-code format |
| Primary Receiver Compatibility | Multi-Code 109020, 109950, and 109920 receivers |
| Code Capacity | Master code plus up to 60 individual four-digit user codes |
| Keypad Style | Backlit keypad |
| Mounting Location | Indoor or outdoor mounting |
| Mounting Style | Wall, post, or gooseneck mounting where properly installed |
| Enclosure | Weather-resistant enclosure with stainless steel faceplate and polycarbonate housing |
| Approximate Size | 6 in. x 3-3/8 in. x 2 in. |
| Setup Style | Wireless keypad operation; some listings also reference setup as wireless or hardwired, so verify the current model instructions before installation |
| Programming | DIP-switch / keypad programming depending on the function being set; match receiver format and follow the current instructions |
| Application | Gate, garage door, commercial door, and access-control keypad entry using compatible Multi-Code 300 MHz receivers |
| Included Items | Wireless keypad; verify battery, mounting screws, instructions, and any mounting accessories against the current supplier package |
| Not Included Unless Listed | Multi-Code receiver, gate operator, garage door opener, gooseneck post, external antenna, wiring, transformer, and access-control panel unless separately listed |
Also Known As / Related Part Numbers
- M330-1KB
- Keystone M330-1KB
- Heddolf M330-1KB
- Keystone / Heddolf M330-1KB
- Keystone Heddolf Wireless Keypad
- Heddolf Wireless Multi-Code Keypad
- Keystone Wireless Multi-Code Keypad
- Multi-Code compatible wireless keypad
- 300 MHz Multi-Code keypad
- Multi-Code 10-switch keypad
- Multi-Code 109020 keypad
- Multi-Code 109950 keypad
- Multi-Code 109920 keypad
- MCS109020, related Multi-Code 109020 receiver
- MCS109950, related Multi-Code 109950 receiver
- MCS109920, related Multi-Code 109920 receiver
- Linear Multi-Code 109020, related receiver
- Linear Multi-Code 109950, related receiver
- Linear Multi-Code 109920, related receiver
- Multi-Code 4200, related Multi-Code keypad reference where applicable
- MCS420001, related Linear Multi-Code wireless keypad reference
Related Parts and Accessories
- Multi-Code 109020 receiver for compatible 1-channel applications
- Multi-Code 109950 receiver for compatible 12-24V gate operator applications
- Multi-Code 109920 receiver for compatible 110V gate receiver applications
- Multi-Code 3089 visor transmitter for matching 300 MHz systems
- Multi-Code 4120 2-channel visor transmitter where multiple channels are needed
- Multi-Code 4140 4-channel visor transmitter where multiple entrances are controlled
- Remote antenna kits or whip antennas where receiver range needs improvement
- Gooseneck mounting posts for driveway or vehicle keypad placement
- Weatherproof mounting hardware and low-voltage wiring for receiver installation
Technician Note
This keypad is a good choice when the site already has a compatible Multi-Code 300 MHz 10-switch receiver, especially the 109020, 109950, or 109920. It is not identified by the gate opener brand alone. The receiver is the part that determines whether the keypad will communicate with the system.
If the customer has a newer garage door opener with a learn button, MyQ logo, Security+ remote, MegaCode receiver, or rolling-code receiver, this keypad will not usually program directly. In those cases, the system may need a compatible external Multi-Code receiver, or the customer may need the keypad made for the existing receiver technology.
Before Ordering, Confirm
- Confirm the receiver is Multi-Code 109020, 109950, 109920, or another compatible Multi-Code 300 MHz 10-switch receiver.
- Confirm the receiver operates on 300 MHz Multi-Code format.
- Confirm the site does not require MegaCode, Delta-3, Security+, Security+ 2.0, MyQ, Intellicode, or another receiver format.
- Confirm the keypad will be used for one compatible receiver channel unless the system design supports otherwise.
- Confirm whether the keypad will be mounted on a wall, post, or gooseneck.
- Confirm the mounting location is suitable for outdoor keypad use.
- Confirm the keypad range is suitable for the distance between keypad and receiver.
- Confirm the receiver antenna is in good condition and positioned for reliable reception.
- Confirm whether batteries, mounting screws, instructions, and accessories are included with the current package.
- Confirm the master code and user code programming procedure before issuing codes to users.
Programming Notes
Programming depends on the keypad version and the receiver being used. In most Multi-Code-compatible applications, the keypad must be set to the correct Multi-Code format and matched to the receiver's code setting. The master code is then used to manage user codes.
For best results, program and test the keypad near the receiver before final mounting. After it works reliably at close range, mount it in the intended location and test again. If operation is inconsistent, check battery condition, receiver antenna location, keypad distance, metal obstructions, and nearby electrical interference.
Professional Advisory
Wireless keypads are simple to use, but receiver compatibility matters. A keypad that is correct for a Multi-Code receiver will not automatically work with a different receiver technology. For shared gates, commercial doors, apartment properties, and managed access systems, keep a record of the master code and user codes so access can be updated when tenants, employees, or vendors change.
Do not use a wireless keypad as a substitute for required gate safety devices. Photo eyes, safety edges, monitored entrapment protection, warning signs, and proper gate hardware must remain installed and operating as required for the gate system.
Product Questions & Answers
What receivers does this Keystone / Heddolf wireless keypad work with?
This keypad is commonly used with compatible Multi-Code 300 MHz 10-switch receivers, including Multi-Code 109020, 109950, and 109920 receivers.
What frequency does this keypad use?
This keypad is commonly listed as a 300 MHz Multi-Code-compatible keypad. The receiver must support the matching 300 MHz Multi-Code format.
How many codes can this keypad hold?
The keypad is commonly listed as supporting a master code plus up to 60 individual four-digit user codes.
Can this keypad be used outdoors?
Yes. It is commonly listed for indoor or outdoor mounting and includes a weather-resistant enclosure with a stainless steel faceplate and polycarbonate housing.
Will this keypad work with a LiftMaster or Genie opener?
Only if the opener is connected to a compatible Multi-Code 300 MHz receiver. It does not directly replace LiftMaster Security+, Security+ 2.0, MyQ, Genie Intellicode, or other rolling-code keypads.
Does this keypad include the Multi-Code receiver?
Do not assume the receiver is included unless the current package specifically says so. This product is the keypad. The compatible Multi-Code receiver may need to be purchased separately.
