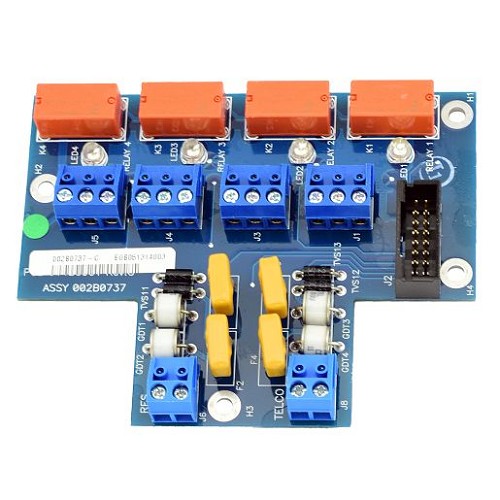

LiftMaster 041B0737 Output Board
The LiftMaster 041B0737 is a replacement output board used in select LiftMaster telephone entry/access control systems. It is commonly associated with EL25 and EL2000SS series units, where the board is part of the internal electronics that help manage output or relay-related functions.
In a telephone entry system, output control is what allows the access unit to send a command to a gate operator, door strike, magnetic lock, barrier gate, or other connected access device. When the output board is damaged or failing, the entry system may still power up but may not reliably activate the connected device.
This board should be replaced only after confirming the original part number and the failure point. A no-open condition can also be caused by programming, wiring, power supply issues, relay terminal damage, surge damage, main board failure, or a problem at the gate or door operator.
Common Use Cases
- Replacing a failed output board in a compatible LiftMaster telephone entry system
- Servicing EL25 or EL2000SS systems with relay/output activation problems
- Repairing access-control units after surge, corrosion, or terminal damage when the board has been identified as failed
- Restoring proper output communication between the entry system and connected gate or door equipment
- Maintaining an existing LiftMaster telephone entry/access control system
Compatible With
The 041B0737 output board is commonly associated with select LiftMaster EL25 and EL2000SS telephone entry/access control systems.
- Select LiftMaster EL25 telephone entry systems
- Select LiftMaster EL2000SS telephone entry/access control systems
- EL25 / EL2000SS systems where the output board is identified as 2B737 or a related board number
- Telephone entry systems using compatible output board connectors and mounting layout
Important: Compatibility should be verified by the original part number, model number, production version, and the correct LiftMaster parts diagram before ordering. Similar-looking parts may not fit the same system.
Not Intended For
- CAPXL, CAPXLV, CAPXM, CAPXS, IPAC, or other connected access platforms unless a parts diagram confirms compatibility
- Replacing the main board, input board, keypad board, LED board, or power supply
- Gate operator control boards or receiver boards
- Systems with output problems caused by programming, wiring, bad relays at the operator, or safety-device faults
- Any board that does not match the original connector layout and board number
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Telephone entry output board |
| Part Number | 041B0737 |
| Related Board Numbers | 2B737, 002B0737, 41B737 |
| Application | Replacement output board for compatible LiftMaster telephone entry/access control systems |
| Compatible System Type | Select EL25 and EL2000SS telephone entry systems |
| Typical Symptoms | No output command, intermittent relay operation, damaged output board, or failed relay interface after diagnosis |
| Installation Sensitivity | Electronic board; verify wiring, connectors, and grounding before installation |
| Notes | Confirm board number and parts diagram before ordering. Similar boards may not interchange. |
Also Known As / Related Part Numbers
- LiftMaster 041B0737
- 041B0737
- 41B0737
- 41B737
- 2B737
- 002B0737
- LiftMaster Output Board
- Output Board EL25 / EL2000SS
- LiftMaster telephone entry output board
Technician Note
Before replacing the output board, check that the telephone entry system is receiving proper power and that the connected gate or door operator responds when activated directly at its proper low-voltage input. This helps separate an entry-system problem from an operator problem.
Inspect the original board for burned traces, corrosion, swollen components, loose terminal blocks, or damage from lightning and surge events. If multiple boards are damaged, the site grounding and surge protection should be checked before installing new electronics.
Before Ordering, Confirm
- The existing access system is an EL25 or EL2000SS model that uses this output board.
- The original board number or parts diagram cross-references to 041B0737, 2B737, 002B0737, or 41B737.
- The connector layout and mounting points match the board being replaced.
- Output wiring to the gate, door, lock, or barrier operator has been checked.
- Programming and relay assignments have been reviewed.
- Power, grounding, and surge conditions have been inspected before installing a new board.
Professional Advisory
This is an electronic access-control board and should be installed with power disconnected. If the system wiring or output terminals are not clearly identified, have the board installed by a qualified access-control technician.
Never bypass gate or door safety devices to test an access-control output. After repair, confirm that every connected operator, lock, relay, and required safety device functions correctly.
Product Q&A
What system does the LiftMaster 041B0737 output board fit?
The 041B0737 output board is commonly associated with select LiftMaster EL25 and EL2000SS telephone entry/access control systems. Verify the model and parts diagram before ordering.
Is 041B0737 the same as 2B737?
041B0737 is commonly cross-referenced with 2B737, 002B0737, and 41B737. Treat those as related part numbers and confirm the board layout before ordering.
What does the output board do?
The output board is part of the telephone entry system's internal electronics and is associated with relay/output control. A failed output board may affect how the unit triggers gates, doors, or connected access devices.
Can this board fix every relay problem?
No. Relay or output issues can also be caused by wiring, programming, power, damaged terminal blocks, a failed main board, or the connected gate/door operator. Diagnose the system before replacing the board.
Are electronic boards returnable after installation?
Electronic boards are often non-returnable once installed or powered. Confirm fitment, connector layout, and part number before opening or installing the board.
