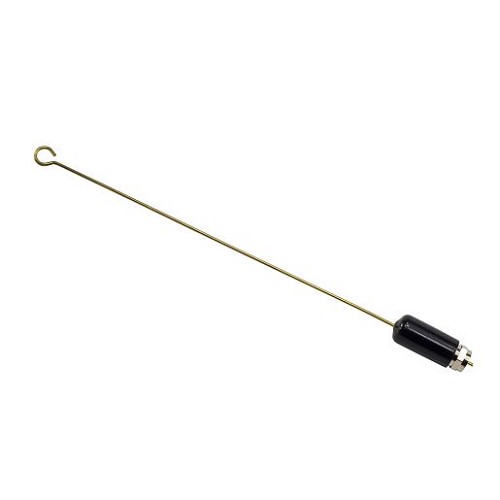

Liftmaster 041C3196, 41C3196 Replacement Antenna for 312HM, 412HM, 422LM, 423LM Gate Opener Receiver
LiftMaster 041C3196 is a replacement antenna kit used on select LiftMaster radio receiver applications. The antenna is a simple-looking part, but it has a big effect on remote-control range and reliability. If the original wire antenna is missing, cut short, tucked into a metal enclosure, or damaged near the receiver, the operator may only respond at close range or may respond inconsistently.
This part is most commonly tied to LiftMaster receiver models such as 312HM, 412HM, 422LM, and 423LM. Those receivers are used across many gate, door, and access-control installations, so the receiver model number is a better fitment check than the gate operator model alone. Also check for radio interference, weak remote batteries, damaged coax or antenna routing, and poor receiver location before assuming the antenna is the only range problem.
Compatible With
- LiftMaster 312HM receiver applications where the 041C3196 antenna kit is specified.
- LiftMaster 412HM receiver applications where the 041C3196 antenna kit is specified.
- LiftMaster 422LM receiver applications where the 041C3196 antenna kit is specified.
- LiftMaster 423LM receiver applications where the 041C3196 antenna kit is specified.
- Select LiftMaster SL505 slide gate operator installations when equipped with a compatible receiver using this antenna.
- Other LiftMaster receiver-based gate or access systems only when the receiver parts diagram calls for 041C3196.
Compatibility note: LiftMaster service parts should be matched by model number, original part number, finish, connector style, voltage rating, or the official replacement parts diagram. Similar-looking parts are not always interchangeable.
Features & Specifications
| Manufacturer | LiftMaster / Chamberlain Group |
|---|
| Product Type | RF antenna kit / wire antenna lead |
|---|
| Part Number | 041C3196 |
|---|
| Application | Replacement antenna for select LiftMaster receiver models |
|---|
| Compatible Receivers | 312HM, 412HM, 422LM, 423LM when the receiver calls for 041C3196 |
|---|
| Frequency | Commonly associated with 315 MHz and 390 MHz receiver systems |
|---|
| Also Known As | 41C3196, LM-041C3196 |
|---|
| Notes | Confirm receiver model and antenna connection before ordering |
|---|
Also Known As / Related Part Numbers
- 041C3196
- 41C3196
- LM-041C3196
- LiftMaster antenna kit
- LiftMaster receiver antenna
- Antenna kit for 312HM 412HM 422LM 423LM
Technician Note
Before replacing this part, check the surrounding hardware, wiring, enclosure, actuator, or receiver components that could have caused the original failure. On gate and access-control equipment, water intrusion, loose mounting, rodent damage, binding gates, and incorrect previous repairs often create repeat failures.
Before Ordering Checklist
- Confirm the manufacturer part number on the old part or in the parts diagram.
- Match the installed model, series, finish, voltage, cable length, connector, or mechanical style as applicable.
- Inspect nearby wiring, brackets, covers, fasteners, seals, and mounting points for damage.
- Do not substitute a similar-looking LiftMaster part unless the model-specific parts diagram supports it.
- For electrical or moving-gate repairs, disconnect power and use a qualified gate or access-control technician when needed.
Professional Advisory
Gate operators and telephone entry systems can involve moving gates, stored force, low-voltage controls, and line-voltage power sources. Do not bypass safety devices or force a gate system to run with damaged wiring or missing covers. If the system has unsafe movement, repeated faults, or electrical damage, have the installation inspected by a qualified technician.
Product Questions & Answers
What receivers use the 041C3196 antenna kit?
Commonly listed receiver compatibility includes LiftMaster 312HM, 412HM, 422LM, and 423LM. Some listings also associate it with SL505, but receiver verification is still important.
What frequency systems is this antenna associated with?
It is commonly associated with LiftMaster 315 MHz and 390 MHz receiver systems that use the matching wire antenna lead.
Can this improve remote range?
It can help if the original antenna is damaged, missing, shortened, or routed poorly. Range can also be affected by interference, receiver location, metal structures, and weak remote batteries.
Is this the same as 041A3504?
No. 041C3196 is an antenna kit for specific receiver models. 041A3504 is an antenna extender kit used in other LiftMaster/Chamberlain applications.
What related numbers should be searched?
Related references include 041C3196, 41C3196, LM-041C3196, and LiftMaster antenna kit for 312HM, 412HM, 422LM, and 423LM.
