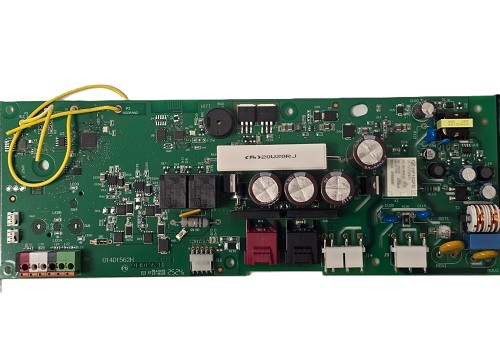

LiftMaster 050DCRJB3MC Receiver Logic Control Board
The LiftMaster 050DCRJB3MC is a receiver logic control board replacement kit used on compatible LiftMaster 98032 Heavy Duty Residential Jackshaft DC Wi-Fi garage door openers. This is the main electronic control board that manages operator communication, radio receiver functions, Security+ 2.0 accessories, myQ connectivity, wall-control communication, safety sensor input, travel control, and other opener logic functions.
This board is commonly needed when a compatible 98032 wall-mount opener has a confirmed logic board failure, loss of radio programming, intermittent control response, damaged receiver circuitry, myQ or Wi-Fi communication problems, or an operator that no longer responds correctly after power, surge, moisture, or board-level damage. Because many symptoms can also be caused by safety sensors, wall controls, travel modules, wiring, lock issues, power supply problems, or door balance problems, the opener should be diagnosed before replacing the board.
The 050DCRJB3MC is tied to LiftMaster's newer Heavy Duty Residential Jackshaft opener platform. It is commonly listed for 98032 models manufactured 2024 to present and identified by a yellow circle learn button. That detail matters because LiftMaster has several similar-looking receiver logic boards for different generations of wall-mount openers, DC belt/chain openers, AC openers, lock-capable openers, and Wi-Fi openers. A board with the wrong generation or wrong model family may not fit, may not communicate properly, or may fail to operate the opener correctly.
This replacement board should be matched by the opener model number and the original replacement-parts diagram. Do not order by appearance alone. The 050DCRJB3MC is not the same as the 050DCRJWFMC used on select 8500W RJO units, and it is not the same as the 050DCTB, 050DCTBFMC, 050ACT series, or other LiftMaster receiver logic boards used on ceiling-mounted DC or AC garage door openers.
After replacing a receiver logic board, the opener may need setup, accessory programming, Wi-Fi/myQ setup, travel verification, safety sensor testing, lock testing, and remote/keypad reprogramming. A qualified garage door technician should handle the replacement when electrical diagnosis, board handling, battery backup, travel setup, safety sensor testing, or opener behavior is not clearly understood.
What This Control Board Does
- Replaces the receiver logic board in compatible LiftMaster 98032 Heavy Duty Residential Jackshaft openers
- Controls opener logic functions for the supported wall-mount DC Wi-Fi RJO platform
- Supports Security+ 2.0 radio programming on compatible yellow learn button units
- Supports myQ and Wi-Fi features on compatible 98032 opener applications
- Communicates with compatible wall controls, remotes, keypads, safety sensors, lock components, and travel-related circuits
- Helps restore operation when the original board has been correctly diagnosed as failed
- Provides the correct board platform where the opener parts diagram calls for 050DCRJB3MC
Common Use Cases
- Replacing a failed LiftMaster 050DCRJB3MC logic board
- Repairing a compatible LiftMaster 98032 wall-mount garage opener after confirmed board failure
- Restoring receiver or accessory programming functions when the board has failed
- Addressing confirmed myQ, Wi-Fi, or communication failure tied to the receiver logic board
- Replacing a damaged control board after surge, moisture, shorted wiring, or improper accessory wiring diagnosis
- Repairing an opener that has power but does not respond correctly after other components have been ruled out
- Replacing the original board where the opener repair-parts diagram specifically lists 050DCRJB3MC
Compatible With
The LiftMaster 050DCRJB3MC is intended for select LiftMaster Heavy Duty Residential Jackshaft DC Wi-Fi garage door opener applications where the operator parts diagram calls for this exact receiver logic board.
- LiftMaster 98032 Heavy Duty Residential Jackshaft DC Wi-Fi Garage Door Opener
- LiftMaster 98032MC applications where the replacement-parts information calls for 050DCRJB3MC
- Select 98032 wall-mount residential RJO applications manufactured 2024 to present
- Compatible units with a yellow circle learn button
- Compatible myQ-powered 98032 wall-mount garage opener systems
- Compatible Security+ 2.0 accessory systems used with the supported 98032 opener platform
Important: Compatibility must be verified by the opener model number, original board part number, yellow circle learn button, manufacture date, and replacement-parts diagram. Do not order this board for an opener just because it is a LiftMaster Wi-Fi opener or a wall-mount opener.
Not Intended For
- LiftMaster 8500W wall-mount RJO openers that call for 050DCRJWFMC
- Older LiftMaster 8500, 3800, or 3900 jackshaft opener generations unless a parts diagram specifically calls for this board
- Ceiling-mounted LiftMaster belt drive openers that use 050DCTB, 050DCTBFMC, or related DC belt-drive boards
- Ceiling-mounted LiftMaster chain drive openers that use a different AC or DC receiver logic board
- LiftMaster AC Wi-Fi lock-capable opener boards such as 050ACT series boards
- Commercial LiftMaster jackshaft door operators unless the operator documentation specifically lists this board
- Replacing a travel module, transformer, power cord, door lock, wall control, safety sensor kit, battery holder, or cable tension monitor
- Fixing a garage door that has broken springs, poor balance, track damage, cable problems, binding rollers, or mechanical door issues
Features & Specifications
| Feature / Specification | Details |
| Manufacturer | LiftMaster / Chamberlain Group |
| Product Type | Receiver logic control board replacement kit |
| Part Number | 050DCRJB3MC |
| Board Function | Controls receiver, logic, accessory communication, myQ/Wi-Fi communication, safety input, and opener control functions on compatible units |
| Primary Application | LiftMaster 98032 Heavy Duty Residential Jackshaft DC Wi-Fi Garage Door Opener |
| Compatible Operator Type | Select wall-mount residential jackshaft DC Wi-Fi garage door openers |
| Technology | Security+ 2.0 receiver logic board platform |
| Smart Connectivity | Used on compatible myQ-powered Wi-Fi opener applications |
| Learn Button | Yellow circle learn button on compatible units |
| Model Generation | Commonly associated with LiftMaster 98032 units manufactured 2024 to present |
| Common Compatible Model | 98032 |
| Common Related Model | 98032MC, where the parts diagram or supplier record confirms 050DCRJB3MC |
| Opener Mount Style | Wall-mount residential jackshaft / RJO style opener |
| Motor Platform | DC wall-mount opener platform; verify exact model before ordering |
| Programming After Replacement | Remotes, keypads, wall controls, myQ/Wi-Fi setup, travel, and safety functions may need to be programmed or verified after installation |
| Handling Note | Electronic control board; avoid static discharge, moisture, wrong wiring, and touching board components unnecessarily |
| Power Safety Note | Disconnect AC power and battery backup power before service; use a qualified technician when unsure |
| Notes | Confirm model number, manufacture date, learn button style, board number, connector layout, and parts diagram before ordering. |
Also Known As / Related Part Numbers
- LiftMaster 050DCRJB3MC
- 050DCRJB3MC
- 050DCRJB3
- LIF-050DCRJB3MC
- LiftMaster Receiver Logic Board DC WiFi HD RJO
- LiftMaster 98032 logic board
- LiftMaster 98032 receiver logic board
- LiftMaster 98032 control board
- LiftMaster HD RJO logic board
- LiftMaster wall-mount garage opener logic board
- LiftMaster Security+ 2.0 receiver logic board
- LiftMaster myQ receiver logic board for 98032
Related part number note: The shorter reference 050DCRJB3 may appear in some supplier listings, but the full customer-facing replacement part number should be treated as 050DCRJB3MC unless your packaging or LiftMaster parts diagram states otherwise.
Related 98032 Replacement Parts
- 041B8861 - Travel module with wire harness
- 041-0401-000 - Transformer for HD RJO applications
- 041-0403-000 - Power cord for HD RJO applications
- 041-0404-000 - Cover set for HD RJO applications
- 041-0405-000 - Battery holder assembly for HD RJO applications
- 041-0400-000 - Door shaft collar for HD RJO applications
- 041B4494-1 - Bell wire kit, where used
- 041-0136 - Safety sensor kit for select myQ garage opener applications, where specified
- 041-0155-000 - Safety sensor brackets for select newer applications, where specified
Related item note: Travel modules, transformers, power cords, covers, safety sensors, wall controls, batteries, door locks, and wiring are separate parts unless your product listing specifically includes them.
Similar Boards That May Not Be Interchangeable
- 050DCRJWFMC - RJO receiver logic board used on select 8500W wall-mount Wi-Fi openers; not the same as 050DCRJB3MC
- 050DCTBFMC - Bluetooth-enabled receiver logic board for select DC belt and chain drive openers; not a 98032 HD RJO board
- 050DCTBMC / 050DCTB - receiver logic board family for select DC Wi-Fi belt and chain drive openers; not automatically compatible with 98032
- 050ACT series boards - commonly associated with select AC Wi-Fi openers; not a replacement for the 98032 board unless the parts diagram says so
- 041DJ003MC and 030DCT boards - used on other opener platforms; not a substitute for 050DCRJB3MC unless specifically confirmed
Technician Note
Control boards are often replaced too quickly. Before ordering this board, confirm that the issue is not coming from the power supply, battery backup, wall control, safety sensors, travel module, cable tension monitor, door lock, wiring short, opener limits, or a mechanical door problem. A failed accessory or shorted low-voltage wire can make a good board look bad.
Match the board by the opener model number and the original parts diagram. The LiftMaster 98032 uses a specific heavy-duty wall-mount RJO board platform. Similar yellow learn button boards from other LiftMaster openers may share Security+ 2.0 or myQ wording but still have different connectors, firmware, mounting points, accessory support, or control logic.
After board replacement, the opener should be fully tested. Confirm travel, force behavior, safety sensor reversal, door lock operation, wall control operation, remote/keypad programming, Wi-Fi/myQ setup, battery backup function, and normal open/close cycle before returning the opener to service.
Before Ordering, Confirm
- The opener model is LiftMaster 98032 or a confirmed 98032MC application.
- The original parts diagram calls for 050DCRJB3MC.
- The opener is a Heavy Duty Residential Jackshaft DC Wi-Fi wall-mount garage door opener.
- The unit has the yellow circle learn button associated with this board generation.
- The opener manufacture date and model generation match the replacement board requirement.
- The existing board part number, connector layout, and mounting style match the replacement board.
- The issue has been diagnosed and is not caused by safety sensors, wall control wiring, travel module, battery, transformer, door lock, or door balance.
- Any remotes, keypads, wall controls, myQ/Wi-Fi setup, and travel settings can be reprogrammed or verified after replacement.
- AC power and battery backup power can be safely disconnected before service.
- A qualified garage door technician is available if the opener wiring, travel setup, or safety testing is not clearly understood.
Professional Advisory
This is an electronic control board for a residential garage door opener. Service should be performed by a qualified garage door technician when electrical diagnosis, opener disassembly, battery backup, logic board handling, travel setup, or safety testing is not clearly understood.
Always disconnect AC power and battery backup power before working inside the opener. Do not touch printed circuit board components unnecessarily, and do not install a board into an opener with unresolved wiring shorts, water damage, surge damage, or accessory wiring problems.
Never bypass safety sensors, door locks, wall controls, travel systems, cable tension monitoring, or other required safety functions to make the opener run. After any board replacement, the full garage door system should be tested before normal use.
Product Q&A
What opener does the LiftMaster 050DCRJB3MC fit?
The 050DCRJB3MC is used with the LiftMaster 98032 Heavy Duty Residential Jackshaft DC Wi-Fi garage door opener and select 98032MC applications where the parts diagram calls for this board.
Is this board compatible with the LiftMaster 8500W?
No. The 8500W commonly uses a different RJO receiver logic board, such as 050DCRJWFMC. Do not use 050DCRJB3MC for an 8500W unless LiftMaster documentation specifically confirms it.
Does this board have Security+ 2.0?
Yes. The 050DCRJB3MC is commonly listed as a Security+ 2.0 receiver logic board replacement kit for compatible yellow circle learn button 98032 opener applications.
Will my remotes and keypads need to be reprogrammed after replacing the board?
In many cases, yes. After a receiver logic board replacement, remotes, keypads, wall controls, myQ/Wi-Fi setup, travel, and safety functions may need to be programmed, synced, or verified.
Can this board fix a garage door that will not move?
Only if the original board has been correctly diagnosed as the problem. A door that will not move can also be caused by safety sensors, travel module faults, wall control wiring, battery or transformer issues, door lock problems, broken springs, or a door that is out of balance.
What should I verify before ordering this logic board?
Verify the opener model number, original board part number, yellow circle learn button, manufacture date, connector layout, and replacement-parts diagram. Similar LiftMaster boards may not be interchangeable.
