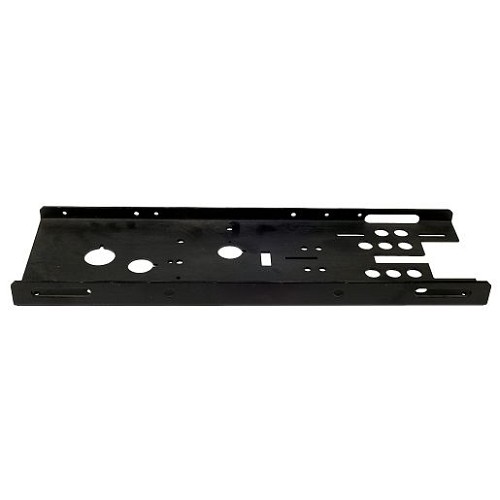

LiftMaster 10-10714M1 Left Hand Frame Replacement
The LiftMaster 10-10714M1 is a left-hand frame replacement used on select medium-duty commercial operator assemblies. The frame provides structural alignment for the operator and supports internal components that must remain square for reliable operation.
This part is used in frame repair or rebuild situations where the left side of the operator housing or structural frame is damaged. It should be ordered by part number and orientation because the right-hand side is a separate part.
What This Part Does
This replacement part is used to restore the correct mechanical or electrical function in the compatible LiftMaster commercial operator assembly. It should be selected by the manufacturer part number, the operator model, and the replacement parts diagram. Many LiftMaster commercial components look similar but are not interchangeable across operator families, voltage configurations, shaft sizes, rail assemblies, or production generations.
Compatible With
The following compatibility list is written from available LiftMaster-style parts references, distributor listings, and commercial operator parts breakdowns. Use it as a strong application guide, but match the exact operator tag and parts diagram before installation.
- Select LiftMaster medium-duty commercial door operators
- LiftMaster MJ medium-duty jackshaft operator frame assemblies when parts diagram confirms left-hand frame 10-10714M1
- LiftMaster MH medium-duty hoist operator frame assemblies when parts diagram confirms left-hand frame
- Select HMJ / medium-duty hoist-jackshaft layouts when confirmed
- Medium-duty U-model replacement parts diagrams that list 10-10714 or 10-10714M1
- Commercial operator and commercial access solution applications that specify K10-10714M1
Also Known As / Related Part Numbers
These are manufacturer numbers, older number formats, catalog aliases, component references, or closely related parts customers may use when searching. Related numbers are not always interchangeable unless the operator parts diagram confirms the match.
- 10-10714M1
- K10-10714M1
- 10-10714
- 1010714
- 106102
- Left hand frame
- Left side frame
- LiftMaster commercial operator frame
- Medium duty operator left frame
- Related opposite-hand part: 10-10713M1 / K10-10713M1
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Left Hand Frame Replacement |
| Part Number | 10-10714M1 |
| Related Part Numbers | K10-10714M1, 10-10714, 1010714, 106102 |
| Application | Commercial operator frame / structural replacement |
| Compatible Operator Type | Select LiftMaster medium-duty commercial operators |
| Orientation | Left hand / left side |
| Notes | Do not substitute for the right-hand frame 10-10713M1. |
Technician Note
Commercial LiftMaster replacement parts should be matched to the operator model, serial range, voltage, handing, shaft size, rail style, and parts diagram. Do not order by appearance alone. Similar frames, pulleys, shafts, electrical boxes, bearings, and trolley parts may have different dimensions or mounting geometry even when the product names sound similar.
Before Ordering, Confirm
- Original part number or stamped/printed number on the existing component
- Exact LiftMaster operator model and series
- Voltage and phase when the product is electrical or part of an electrical box
- Right-hand / left-hand orientation when ordering frame parts
- Rail, trolley, shaft, chain, sprocket, or brake assembly style when ordering mechanical parts
- Parts diagram calls for this exact part number or a confirmed related number
- Door or gate moves freely and the operator is not being overloaded by a mechanical problem
Professional Advisory
Many of these parts are installed inside commercial door operators where moving components, stored spring force, and high-voltage wiring may be present. Disconnect power before service, follow the operator service manual, and use a qualified commercial door technician for internal drivetrain, brake, frame, or electrical box repairs. After replacement, test limits, controls, safety devices, brake action, and door balance before returning the operator to normal use.
Important Ordering Warnings
- Do not assume parts are interchangeable across T, GT, APT, MJ, MH, HMJ, GH, SD, GSD, LGO, or slide gate operator families.
- Electrical boxes and control parts must match voltage, phase, wiring type, and operator model.
- Handed frame parts must match left-hand or right-hand orientation.
- Mechanical drive parts should be checked with nearby shafts, bearings, sprockets, keys, chain, and brake hardware.
- If the operator failed because the door is binding, out of balance, or damaged, replacing the part alone may not solve the problem.
Questions & Answers
What is the 10-10714M1 frame used for?
It is a left-hand frame component used on select LiftMaster medium-duty commercial door operator assemblies.
Is 10-10714M1 interchangeable with 10-10713M1?
No. 10-10714M1 is the left-hand frame and 10-10713M1 is the right-hand frame. They are orientation-specific parts.
Which operator types may use this frame?
It may be used with select MJ, MH, HMJ, and related medium-duty commercial operator frame assemblies when confirmed by the parts diagram.
What are related numbers for this frame?
Common related references include K10-10714M1, 10-10714, 1010714, and 106102.
What should be checked after frame replacement?
Check mounting alignment, shaft alignment, chain/sprocket position, hardware tightness, and safe operator movement before returning the door to service.
