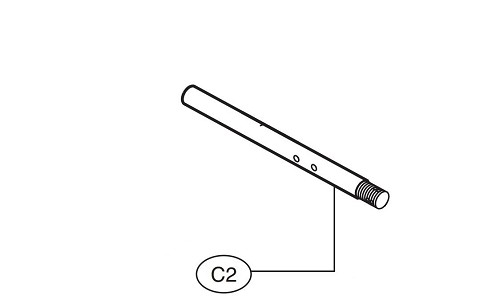

Liftmaster 11-10320 Clutch Shaft, MCT
The LiftMaster 11-10320 is an MCT clutch shaft replacement component for select medium-duty trolley commercial door operators. It is used inside the operator's clutch/drive section where the clutch transfers torque through the operator drive train.
This is not a complete clutch shaft assembly kit. It should be matched by part number and diagram location because LiftMaster commercial operators use several shafts and output components that can look similar.
Compatibility and Application
Research found 11-10320 and K11-10320 listed for various LiftMaster medium-duty trolley commercial door operators. Use it in MCT applications only where the parts diagram calls for this clutch shaft reference.
- Select LiftMaster medium-duty trolley commercial door operators
- MCT clutch shaft applications where 11-10320 is specified
- Commercial trolley operator clutch/drive sections using K11-10320 or 1110320 as a related number
- Older LiftMaster medium-duty commercial operator service applications only when the diagram confirms this shaft
Important Fitment Notes
- Not a complete clutch shaft kit
- Not the output shaft and sprocket kit K72-33875
- Not the MJ clutch shaft kit K72-33889
- Not selected by shaft appearance alone
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Clutch shaft |
| Part Number | 11-10320 |
| Common Prefix Format | K11-10320 in some listings |
| Application | MCT clutch / drive section |
| Compatible Operator Type | Select LiftMaster medium-duty trolley commercial operators |
| Related Number | 1110320 |
| Notes | Inspect clutch plates, springs, disc, bearings, and fasteners during service |
Also Known As / Related Part Numbers
- 11-10320
- K11-10320
- 1110320
- LiftMaster 11-10320 clutch shaft
- LiftMaster MCT clutch shaft
Related Parts in the Same Operator Family
- K72-33875 - MT/BMT output shaft and sprocket, different drive component
- K72-33889 - MJ clutch shaft kit reference in MJ parts breakdown, not the same as 11-10320
- K10-10166 - clutch plate reference in related clutch assemblies
- K39-10167 - clutch disc reference in related clutch assemblies
- K17-10336 - pulley reference in related MJ/HMJ clutch sections
Technician Notes
If the clutch slips, chatters, or will not adjust correctly, the shaft may be worn, but the clutch disc, clutch plate, spring, bearing surfaces, pulley, sprocket, and hardware should all be checked.
A clutch shaft can be damaged by an overloaded or binding door. Correct the door issue before tightening the clutch or replacing drive parts.
Before Ordering Checklist
- Confirm the old shaft or parts diagram lists 11-10320, K11-10320, or 1110320
- Confirm the operator uses the MCT clutch shaft application
- Inspect clutch disc, clutch plates, spring, bearings, and pins
- Check the door for binding or overload before reassembly
- Do not substitute an output shaft kit or MJ clutch kit unless documented
Professional Advisory
Commercial operator clutch adjustments affect door force and safe operation. A qualified technician should inspect the door, clutch, limits, and safety devices after service.
Product Q&A
What does the 11-10320 clutch shaft do?
It is part of the clutch/drive section and helps transfer torque through the operator clutch assembly in compatible commercial trolley operators.
Is 11-10320 the same as K11-10320?
Yes, K11-10320 is a common listing format for the same clutch shaft reference. 1110320 is also shown as a related number.
Is this a complete clutch kit?
No. This is the clutch shaft component, not a complete clutch shaft kit or full drive assembly.
Can clutch slipping mean this shaft is bad?
Possibly, but slipping can also come from clutch disc wear, weak springs, bad adjustment, binding door hardware, or drive misalignment.
Should the clutch be adjusted after replacement?
Yes. The clutch and door operation should be checked by a trained commercial door technician after replacing drive components.
