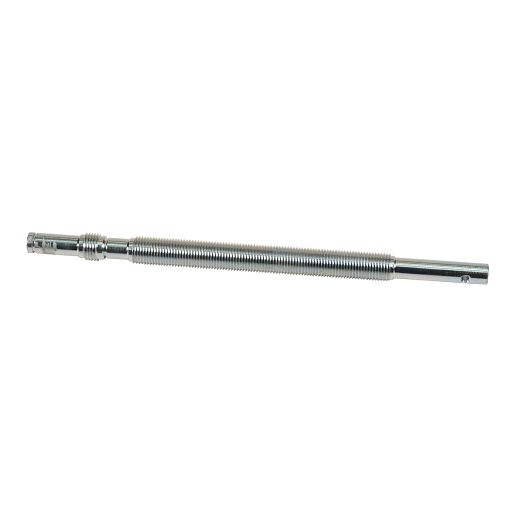

LiftMaster 11-10321 Limit Shaft Kit
The LiftMaster 11-10321 is a replacement limit shaft used in select LiftMaster mechanical commercial door operator limit assemblies. The limit shaft is part of the mechanical system that helps set and maintain the open and close stopping points of the commercial door operator.
When the limit shaft is worn, damaged, bent, or no longer holding proper adjustment, the operator may overtravel, stop short, lose limit accuracy, or become difficult to adjust. This is especially important on commercial jackshaft and hoist operators where mechanical limits must be set correctly for safe door travel.
This is not a universal shaft for every LiftMaster operator. Limit shaft design can vary by model family, horsepower range, electrical box style, and production generation.
Common Use Cases
- Replacing a worn or damaged limit shaft in a compatible commercial operator
- Repairing a mechanical limit assembly that no longer adjusts correctly
- Restoring reliable open and close limit travel on supported LiftMaster commercial operators
- Replacing a bent or stripped shaft after limit box damage
- Servicing a LiftMaster mechanical commercial door operator electrical box
Compatible With
The 11-10321 limit shaft is commonly associated with select LiftMaster mechanical commercial door operator electrical boxes and is primarily used on supported J, H, and HJ style commercial operator applications where the parts diagram calls for this shaft.
- Select LiftMaster J series jackshaft commercial door operators
- Select LiftMaster H series hoist commercial door operators
- Select LiftMaster HJ series hoist/jackshaft commercial door operators
- Select 1/2 HP and 3/4 HP mechanical commercial operator configurations where listed by parts diagram
- Various LiftMaster mechanical commercial door operator electrical boxes that call for 11-10321 or K11-10321
Not Intended For
- Operators with a different limit shaft part number or updated limit assembly
- Residential garage door openers
- Electronic limits or encoder-based limit systems that do not use this mechanical shaft
- Limit nuts, limit switches, sprockets, or complete electrical box replacements unless listed separately
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Limit shaft replacement kit |
| Part Number | 11-10321 |
| Kit / Search Number | K11-10321 |
| Application | Mechanical limit assembly service on select LiftMaster commercial door operators |
| Compatible Operator Type | Select J, H, and HJ commercial door operator applications |
| Common Horsepower Range | Often associated with select 1/2 HP and 3/4 HP configurations; verify parts diagram |
| Function | Supports mechanical open and close limit adjustment |
| Notes | Match the shaft to the exact operator model, electrical box, and parts diagram. |
Also Known As / Related Part Numbers
- LiftMaster 11-10321
- LiftMaster K11-10321
- 11-10321
- K11-10321
- 1110321
- Limit Shaft
- Limit Shaft Kit
Related limit-system parts that are not the same item: limit nuts, limit switches, limit sprockets, limit chain, electrical box assemblies, and limit adjustment hardware.
Technician Note
After replacing a limit shaft, the open and close limits must be reset and tested. Do not put the operator back into service until the door stops correctly at both ends of travel.
If the original shaft failed because the door overtraveled or the limit nuts jammed, inspect the full limit assembly before replacing only the shaft.
Before Ordering, Confirm
- The original shaft or parts diagram identifies 11-10321 or K11-10321.
- The operator is a compatible LiftMaster mechanical commercial door operator.
- The operator model, horsepower, and electrical box generation match the part application.
- The limit nuts, limit switches, and related hardware are reusable or being ordered separately.
- The door moves freely and is not causing limit overtravel due to mechanical binding.
- You are not replacing a different shaft such as 11-10021 or another similar-looking part.
Professional Advisory
Commercial door limit systems should be serviced with power disconnected and the door secured. Limit adjustments affect where the door stops and must be tested carefully after repair.
If the door has overtravel damage, worn limit switches, or inconsistent stopping, have a qualified commercial door technician inspect the operator before normal operation.
Product Q&A
What does the LiftMaster 11-10321 limit shaft do?
The 11-10321 shaft is part of the mechanical limit assembly that helps control the open and close stopping points on select LiftMaster commercial door operators.
Which operators commonly use this shaft?
It is commonly associated with select LiftMaster J, H, and HJ commercial operator applications and mechanical commercial door operator electrical boxes that list 11-10321 or K11-10321.
Is this the same as a limit switch?
No. This is the limit shaft. Limit switches, limit nuts, chains, sprockets, and electrical box parts are separate components.
Do the limits need to be reset after replacement?
Yes. After replacing a limit shaft, the operator open and close limits must be adjusted and tested before the door is returned to service.
