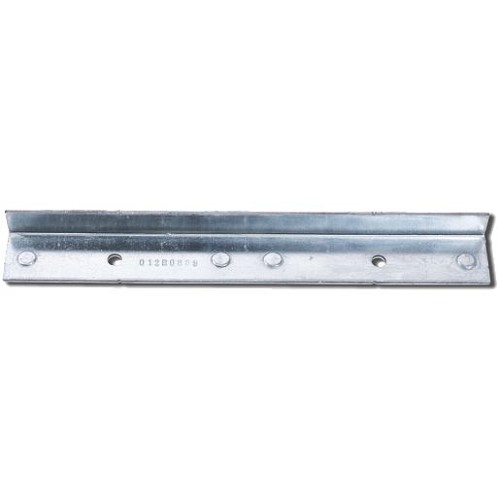

Liftmaster 12B0889 Rail Support Brace
The LiftMaster 12B0889 is a screw drive rail support brace used on select LiftMaster and Chamberlain screw drive opener rail assemblies. It is commonly cross-referenced as 012B0889 and 12B889 in service listings and older diagrams.
Common Application
This support brace is commonly used with select screw drive and low-profile screw drive garage door opener rail assemblies. It should be confirmed by the specific rail parts diagram.
When This Part Is Usually Ordered
- Rail support brace is missing, bent, or damaged
- Screw drive rail hardware has been taken apart
- Parts diagram lists 12B0889, 012B0889, or 12B889
- Rail assembly needs the correct support piece restored
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster / Chamberlain |
| Product Type | Screw drive rail support brace |
| Part Number | 12B0889 |
| Service / Diagram Numbers | 012B0889, 12B889 |
| Application | Select screw drive garage door opener rail assemblies |
| Compatible Operator Type | Select LiftMaster and Chamberlain screw drive and low-profile screw drive openers |
| Related Model Reference | Commonly associated with PD432D-style screw drive rail diagrams |
| Notes | Not a universal brace for chain drive or belt drive rails |
Also Known As / Related Part Numbers
Technician Note
The catalog ID uses 12B0889 while many diagrams list 12B889. Treat these as related references, but still match the rail drawing before ordering because screw drive rail parts can vary by generation.
Before Ordering
- Confirm the rail diagram lists 12B0889, 012B0889, or 12B889
- Compare the brace shape and mounting points to the original part
- Inspect the screw drive rail for bends or missing hardware
- Do not use this brace on chain drive or belt drive rail assemblies
- Have the door and opener inspected if the rail binds or flexes during operation
Professional Advisory
A rail support brace should not be used to compensate for a bent rail, loose header bracket, or door balance problem. Correct the underlying mechanical issue before returning the opener to regular service.
Product Questions & Answers
Is 12B0889 the same as 12B889?
12B889 is a common shorter diagram reference associated with the 012B0889 screw drive rail support brace.
What does this rail support brace do?
It helps support and stabilize the screw drive rail hardware on compatible opener rail assemblies.
Can this be used on a belt drive opener?
No. This brace is intended for select screw drive rail assemblies, not belt drive rail systems.
Why does my title show 12B889 while the part number shows 12B0889?
Both numbers are commonly associated with the same screw drive rail support brace family, but the exact parts diagram should be checked before upload or ordering.
Should I replace this brace if the rail is bent?
A brace may not correct a bent rail. If the rail is damaged or binding, the full rail assembly and door movement should be inspected.
