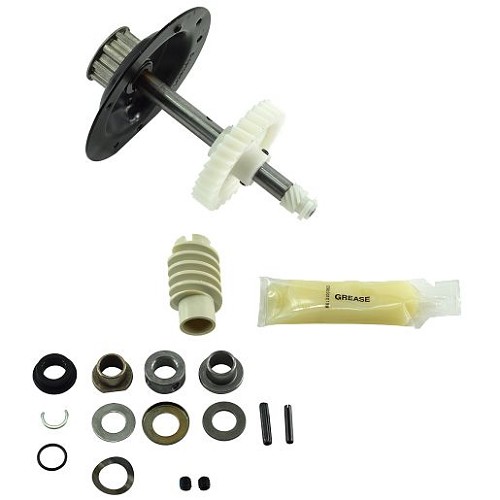

LiftMaster 41A4885-2 AC Belt Drive Gear and Sprocket Kit
The LiftMaster 41A4885-2 is an AC belt drive gear and sprocket replacement kit for select older LiftMaster, Chamberlain, Raynor, and Sears Craftsman belt drive garage door openers. It is commonly associated with older 9-ridge belt sprocket applications.
This kit repairs the internal belt drive gear system when the original gear teeth wear, the sprocket assembly fails, or the opener runs without properly moving the belt and trolley.
Compatible With
The 41A4885-2 is used with select older AC belt drive openers. Compatibility depends on opener model, sprocket ridge count, belt rail design, and parts diagram.
Common Compatible Models and Families
- LiftMaster 1270 belt drive opener
- LiftMaster 1280 belt drive opener
- LiftMaster 1280R belt drive opener
- Select Chamberlain 8100, 8100M, 8200, 9200, and 9500 Whisper Drive style applications
- Raynor Aviator 1280RGD, when confirmed by parts diagram
- Select Sears Craftsman 139-series belt drive units with matching 9-ridge pulley
Important Compatibility Notes
- Commonly associated with older 9-ridge sprocket applications
- Do not confuse with 41A4885-5 14-tooth belt gear kit
- For select AC belt drive systems, not screw drive or chain drive openers
- Model and rail configuration must match
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster / Chamberlain |
| Product Type | AC belt drive gear and sprocket kit |
| Part Number | 41A4885-2 / 041A4885-2 |
| Application | Belt drive internal gear repair |
| Compatible Operator Type | Select older AC belt drive garage door openers |
| Sprocket Style | Commonly associated with 9-ridge belt sprocket applications |
| Notes | Compare against 41A4885-5 before ordering |
Also Known As / Related Part Numbers
This part may be searched under related LiftMaster, Chamberlain, or older catalog number formats. Related numbers should be verified against the opener parts diagram before treating them as exact replacements.
- 41A4885-2
- 041A4885-2
- LiftMaster 41A4885-2
- Chamberlain 41A4885-2
- Belt drive gear and sprocket kit
- 9-ridge belt sprocket kit
- Related newer kit 41A4885-5
Technician Note
The sprocket ridge count is a key field check. If the opener uses the newer 14-tooth sprocket style, 41A4885-5 may be the correct kit instead of 41A4885-2.
Before Ordering, Confirm
- The opener is a compatible AC belt drive model
- The original kit number matches 41A4885-2 or a confirmed related number
- The sprocket is the older 9-ridge style
- The rail and belt drive layout match the parts diagram
- The garage door and trolley move smoothly without binding
Professional Advisory
Disconnect power before removing the opener cover. Belt drive gear replacement involves internal drive parts and may require checking belt tension, rail alignment, and door balance after repair.
Important Ordering Warnings
- Do not use on chain drive or screw drive openers
- Do not confuse with 41A4885-5
- Older and newer belt sprocket styles are not always interchangeable
- A binding door can damage the new gear kit
- Confirm by original part number and parts diagram
Questions & Answers
What is the difference between 41A4885-2 and 41A4885-5?
The 41A4885-2 is commonly associated with older 9-ridge belt sprocket applications, while 41A4885-5 is commonly associated with newer 14-tooth belt sprocket applications.
Which LiftMaster models commonly use 41A4885-2?
It is commonly associated with select older belt drive models such as 1270, 1280, and 1280R, along with related Chamberlain and Raynor belt drive applications.
Is this kit for chain drive openers?
No. The 41A4885-2 is a belt drive gear and sprocket kit, not a chain drive gear kit.
Can I order by opener brand only?
No. The opener model, sprocket ridge count, rail setup, and parts diagram should be checked because newer belt drive openers may use a different kit.
What causes belt drive gears to fail?
Common causes include normal gear wear, a heavy door, worn belt tensioner parts, binding rail movement, or excessive load on the opener.
