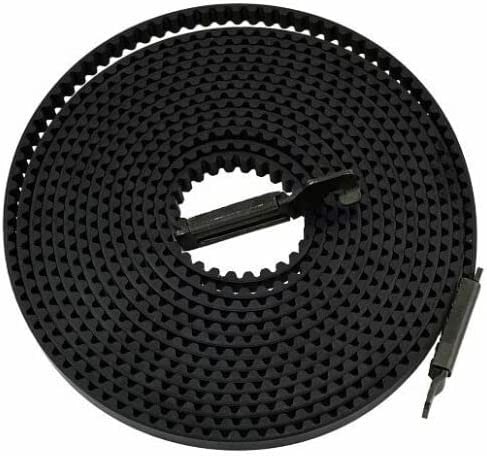

LiftMaster 41A5250-2 Belt Assembly Kit for 10 ft Doors
The LiftMaster 41A5250-2 is a one piece full belt assembly replacement kit for select LiftMaster and Chamberlain belt drive residential garage door openers used on 10 ft door applications.
This belt is part of the opener rail drive system. It connects the motor drive system to the trolley/carriage so the opener can move the garage door smoothly and quietly.
What This Part Does
The belt assembly transfers motor movement through the rail to the trolley. A damaged or worn belt can cause slipping, chattering, jerky door travel, a door that will not move, or visible belt separation.
Before replacing the belt, check the carriage, sprocket, pulley, rail sections, and door balance. A heavy, binding, or poorly balanced door can damage a new belt quickly.
Compatible With
This belt assembly is used with select LiftMaster, Chamberlain, Sears Craftsman, and related belt drive openers that call for 41A5250-2 or a related number in the parts diagram. Door height and rail length are the key compatibility checks.
Common Compatible Applications
- Select LiftMaster belt drive openers with a 10 ft residential door rail
- Select Chamberlain belt drive openers with a 10 ft residential door rail
- Select Sears Craftsman / Chamberlain-built belt drive openers when the parts diagram matches
- Residential belt drive opener rail systems using the matching one piece belt assembly
Model Families to Verify
- LiftMaster Whisper Drive and belt drive model families
- Chamberlain Whisper Drive and HD/WD belt drive model families
- Sears Craftsman belt drive openers built by Chamberlain
- Select Chamberlain and LiftMaster belt drive openers with matching 10 ft rail applications
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster / Chamberlain |
| Product Type | Full Belt Assembly Kit |
| Part Number | 41A5250-2 |
| Application | Replacement belt for 10 ft residential garage door belt drive rail systems |
| Compatible Operator Type | Select residential belt drive garage door openers |
| Door Height | 10 ft garage door applications |
| Includes | One piece belt assembly |
| Notes | Match part number, rail length, door height, and parts diagram before installation. |
Also Known As / Related Part Numbers
This part may be searched under several related LiftMaster, Chamberlain, or older part-number formats. Related belt numbers for different door heights are not interchangeable.
- 41A5250-2
- 041A5250-2
- 1A5250-2
- 41A5250-2
- LiftMaster full belt assembly
- Chamberlain belt drive replacement belt
- 10 ft garage door opener belt kit
- Belt drive rail assembly belt
Technician Note
Do not order a belt assembly by opener head style alone. The same opener family may be sold with different rail lengths, and the belt must match the rail and door height.
If the old belt failed suddenly, inspect the belt sprocket, pulley, trolley, rail alignment, and garage door balance before installing the replacement.
Before Ordering, Confirm
- Original belt part number or parts diagram matches this listing
- Garage door height and rail setup require a 10 ft belt assembly
- Opener is a belt drive model, not chain drive or screw drive
- Rail, trolley, pulley, and sprocket are not damaged
- Garage door moves smoothly by hand with the opener disconnected
Professional Advisory
Disconnect power before servicing the opener rail. Keep hands clear of the belt, trolley, pulley, and sprocket when the opener is powered.
After installation, set belt tension according to the opener instructions and test travel, force, photo eyes, and safety reversal before returning the opener to normal use.
Important Ordering Warnings
- This is the 10 ft belt assembly and should not be substituted for other door-height belt kits.
- Similar LiftMaster belt kits may have different lengths or end connections.
- A new belt can fail early if the garage door is out of balance or the rail hardware is damaged.
- Not for chain drive or screw drive openers.
Questions & Answers
What door height is the LiftMaster 41A5250-2 belt kit made for?
The LiftMaster 41A5250-2 belt kit is used on select belt drive opener rail systems set up for a 10 ft residential garage door.
Can I use this belt on a chain drive opener?
No. This is a belt assembly for select belt drive garage door openers and should not be used on chain drive or screw drive models.
Why are there different LiftMaster belt part numbers?
LiftMaster uses different belt assemblies for different rail lengths, door heights, and opener generations. The part number and parts diagram should match the original setup.
What symptoms can point to a worn belt assembly?
Common signs include frayed belt material, slipping, jerky travel, a trolley that does not move correctly, or a belt that has separated from its end connection.
What should be checked before installing a new belt?
Check the trolley, pulley, sprocket, rail alignment, door balance, and spring condition so the replacement belt is not damaged by a binding door.
