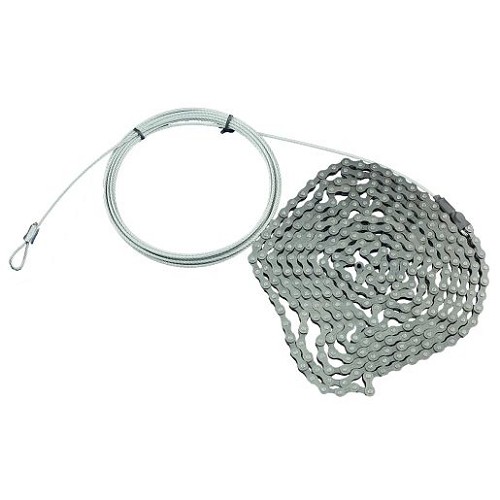

LiftMaster 41C2761-1 Chain and Cable Assembly for 10 Foot Doors
The LiftMaster 41C2761-1 chain and cable assembly is a replacement kit for select chain drive garage door openers installed on 10 foot doors. It is used when the original chain and cable assembly is worn, broken, stretched, or missing.
This is a door-height-specific repair part. A 10 foot chain and cable assembly should not be substituted for the shorter 7 foot or 8 foot versions, and it should be used only on compatible chain rail applications.
Features and Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster / Chamberlain |
| Product Type | Chain and cable assembly |
| Part Number | 041C2761-1 |
| Application | 10 foot door chain drive opener repair |
| Compatible Operator Type | Select chain drive garage door openers |
| Rail Length / Door Height | 10 foot door application |
| Notes | Related to older 41C2761 reference |
Compatible With
- Select chain drive garage door openers using the matching 10 foot chain and cable assembly
- Use where the opener parts diagram calls for 41C2761-1 or 041C2761-1
- For 10 foot door applications only unless the parts diagram states otherwise
Also Known As / Related Part Numbers
Technician Note
A master link may be needed depending on the rail and existing hardware. Check the chain path, trolley, rail, and sprocket before replacing the chain assembly alone.
Before Ordering
- Confirm the garage door is 10 feet high
- Confirm the opener is a compatible chain drive system
- Match the original parts diagram to 41C2761-1 or 041C2761-1
- Do not substitute shorter chain assemblies
- Inspect the trolley and sprocket for wear before installation
Professional Advisory
If the door is heavy, out of balance, or binding, do not use a new chain assembly to force the opener to move it. Door balance and spring issues should be corrected by a qualified garage door technician.
Product Questions and Answers
Is 41C2761-1 for a 10 foot door?
Yes. This chain and cable assembly is used for select 10 foot door chain drive opener applications.
Does this replace 41C2761?
41C2761 is commonly listed as an older or related reference for the 41C2761-1 chain and cable assembly.
Can I use this on a 7 foot or 8 foot door?
No. A 10 foot chain and cable kit is not the correct length for 7 foot or 8 foot rail applications.
Is a master link included?
Kit contents can vary by packaging and supplier. Check the product image or packaging, and keep a suitable master link available if the repair requires it.
What else should be checked when replacing this chain?
Inspect the trolley, chain tension, rail alignment, sprocket teeth, and gear condition. Worn drive parts can damage a new chain assembly.
