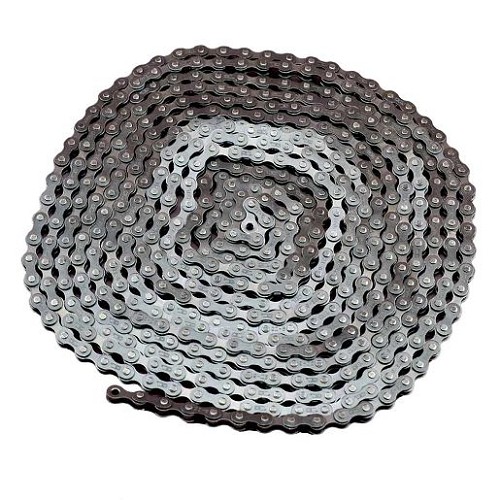

LiftMaster 41D3485 Chain Assembly Kit for 10 ft Doors
The LiftMaster 41D3485 is a one piece 10 ft chain assembly kit for select LiftMaster and Chamberlain chain drive garage door openers that use a T-rail system.
This replacement chain is used when the original chain is worn, stretched, damaged, noisy, or no longer moving the trolley correctly.
What This Part Does
The chain assembly transfers motion from the opener drive sprocket to the trolley so the opener can move the garage door. A worn chain can cause slack, rough travel, skipping, or poor opener performance.
Before replacing the chain, inspect the sprocket, trolley, rail, chain tensioner, and garage door balance. A binding door or worn sprocket can damage a replacement chain.
Compatible With
The 41D3485 is used with select LiftMaster and Chamberlain chain drive openers using a T-rail and 10 ft garage door setup.
Common Compatible Applications
- Select LiftMaster chain drive openers with T-rail systems
- Select Chamberlain chain drive openers with T-rail systems
- 10 ft high garage door applications requiring a one piece chain assembly
- Openers calling for 041D3485 or 41D3485 in the parts diagram
Important Compatibility Notes
- Not for belt drive or screw drive openers
- Not for shorter 7 ft or 8 ft chain assemblies
- Not the same as chain-and-cable assemblies used on some opener rails
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster / Chamberlain |
| Product Type | Chain Assembly Kit |
| Part Number | 041D3485 |
| Alternate Number | 41D3485 |
| Application | 10 ft garage door chain drive rail applications |
| Compatible Operator Type | Select chain drive openers with T-rail systems |
| Includes | One piece 10 ft chain assembly |
| Notes | Verify rail type, door height, and original chain part number. |
Also Known As / Related Part Numbers
This chain assembly may be listed under LiftMaster, Chamberlain, or older non-zero-prefix part numbers.
- 041D3485
- 41D3485
- 012381934850
- LiftMaster 10 ft chain kit
- LiftMaster T-rail chain assembly
- Chamberlain 10 ft chain assembly
Technician Note
The chain must match both the rail type and door height. Ordering by chain length alone can lead to the wrong part if the opener uses a different rail design.
If the chain is badly worn, check the drive sprocket and trolley. A worn sprocket can cause a new chain to skip or wear quickly.
Before Ordering, Confirm
- Original chain part number matches 041D3485 or 41D3485
- Opener is a chain drive model with a compatible T-rail
- Garage door height is 10 ft
- Trolley, sprocket, and rail are in usable condition
- Door is balanced and moves smoothly by hand
Professional Advisory
Disconnect power before working on the rail or chain. Keep hands away from the sprocket and moving rail parts during setup and testing.
After installation, set chain tension and test travel, force, photo eyes, and safety reversal according to opener instructions.
Important Ordering Warnings
- Not for belt drive openers
- Not for screw drive openers
- Not for 7 ft or 8 ft chain assemblies
- A binding garage door can damage the chain and opener drive system
Questions & Answers
What type of opener uses the LiftMaster 41D3485 chain kit?
The 41D3485 chain kit is used on select LiftMaster and Chamberlain chain drive garage door openers that use a T-rail and are configured for a 10 ft garage door.
Is this a chain-only assembly or a chain-and-cable assembly?
The 41D3485 is commonly listed as a one piece 10 ft chain assembly kit. It should not be confused with chain-and-cable assemblies used on other rail designs.
Can this chain be used on a 7 ft or 8 ft garage door opener?
No. This listing is for 10 ft door applications. Shorter door heights and different rail systems usually require different chain assemblies.
What should be inspected when replacing the chain?
Inspect the sprocket, trolley, rail, tensioner, door balance, rollers, and springs before installing a replacement chain.
Why does rail type matter?
LiftMaster uses different chains and rail setups. This chain is for select T-rail applications, and other rail designs may use different chain or cable parts.
