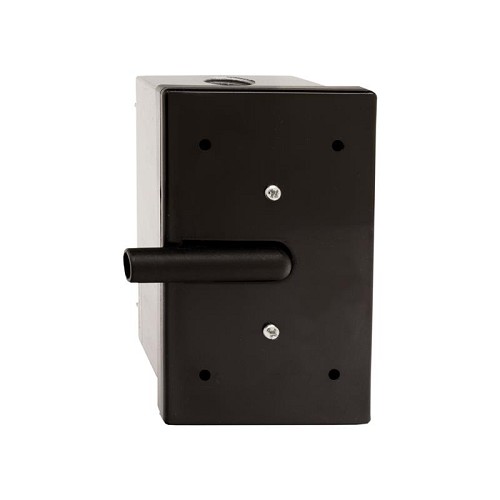

LiftMaster 501012 Exterior Air Switch for Pneumatic Edge Systems
The LiftMaster 501012 exterior air switch is used with compatible pneumatic sensing edge systems. It receives air pressure from the edge hose and changes switch state when the edge is compressed.
This is a switch component, not a full edge kit. It should be matched to the pneumatic edge, hose, wiring type, and operator control circuit.
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Exterior pneumatic air switch |
| Part Number | 501012 |
| Switch Type | SPDT |
| Wire Type | 3-wire switch connection |
| Housing | Exterior plastic housing |
| Application | Pneumatic sensing edge systems |
| Common Use | Commercial overhead door safety edge control |
| Notes | Air hose and edge assembly sold separately unless part of another kit |
Also Known As / Related Part Numbers
- 501012
- LM-501012
- LiftMaster Exterior Air Switch SPDT
Compatible With / Common Applications
- Compatible pneumatic sensing edge systems using an exterior SPDT air switch
- Commercial door operators with control wiring that supports the installed edge type
- Select LiftMaster pneumatic edge kits and replacement edge components
Technician Note
A pneumatic edge depends on the edge, hose, plug, and air switch all sealing and responding properly. Replacing the switch will not correct a cut hose, leaking plug, or damaged edge.
Before Ordering
- Confirm the existing switch is a 3-wire SPDT air switch.
- Inspect the air hose for cracks, loose connections, or kinks.
- Check the pneumatic edge for physical damage.
- Verify the operator control type and wiring diagram.
- Test the door safety edge after replacement.
Professional Advisory
Do not bypass an air switch or safety edge to keep a door running. If the edge circuit is not working, the operator should be serviced before normal operation continues.
Product Questions and Answers
What does the 501012 air switch do?
It converts air pressure from a pneumatic sensing edge into an electrical switch signal for the operator control circuit.
Is this a complete pneumatic edge kit?
No. The 501012 is the exterior SPDT air switch only. The edge, hose, plug, coil cord, or take-up reel are separate components.
Why does the air hose condition matter?
A leaking or kinked hose may prevent pressure from reaching the air switch, even if the switch itself is good.
Can this switch be used outdoors?
It is supplied in an exterior plastic housing, but it should still be installed according to the operator and edge system instructions.
What should I do if the door does not reverse after replacing the switch?
Stop using the door in automatic mode and have the pneumatic edge, switch wiring, and operator control circuit checked by a qualified technician.
