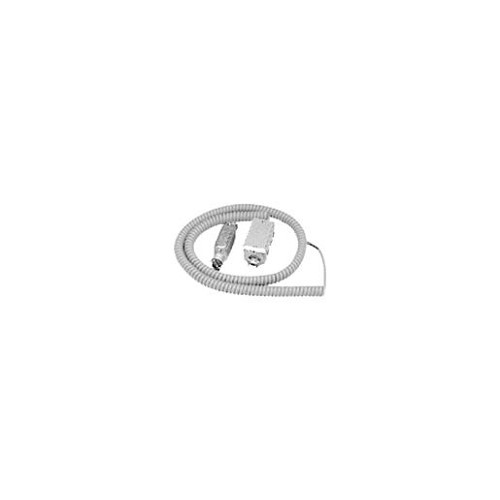

Liftmaster 658200 Door Edge Connection Kit
The LiftMaster 658200 is a door edge connection kit for commercial sensing edge installations. It provides the hardware needed to connect the moving door edge back to the operator-side wiring point.
Common Applications
Commonly used with commercial door sensing edges where junction boxes and a 3-wire coil cord connection are required. It is typically used on overhead, rolling, and sectional door applications with wired edge protection.
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Door edge connection kit |
| Part Number | 658200 |
| Included Components | Two junction boxes and 3-wire coil cord style connection hardware |
| Wire / Conductors | 3 wire coil cord commonly associated with this kit |
| Application | Commercial door sensing edge connection |
| Compatible Operator Type | Select commercial door operators with sensing edge inputs |
| Notes | Complete edge connection kit for many wired sensing edge applications |
Also Known As / Related Part Numbers
- 65-8200
- 658200 edge connection kit
- door sensing edge connection kit
- coil cord edge connection kit
Technician Note
This kit is often chosen when the cord and junction boxes both need attention. If only the cord is damaged, verify whether replacing the complete kit or only the coil cord is the better repair.
Before Ordering
- Confirm the edge system uses a 3-wire coil cord style connection.
- Inspect the door-side and wall-side junction box locations.
- Check that the sensing edge itself is not damaged.
- Confirm the operator input accepts the edge style being used.
- Test the safety edge after wiring is complete.
Professional Advisory
A sensing edge connection kit should not be installed as a bypass or workaround for a failed safety device. If the edge, operator input, or monitored safety circuit is unclear, have a qualified technician complete the repair.
Product Q&A
What is included with the LiftMaster 658200 kit?
It is commonly listed as a door edge connection kit with two junction boxes and a 3-wire coil cord style connection for sensing edge wiring.
When is this better than buying only a coil cord?
Use the complete kit when junction boxes, terminals, or connection hardware are damaged or missing, not just the cord.
Can this kit work with most sensing edges?
It may be used with many wired sensing edge setups, but the conductor count, edge type, and operator input must be verified.
Is this a wireless edge kit?
No. This is a wired edge connection kit, not a wireless transmitter and receiver setup.
Should the door be tested after installing the kit?
Yes. The sensing edge should be tested through normal door movement to confirm the operator responds correctly.
