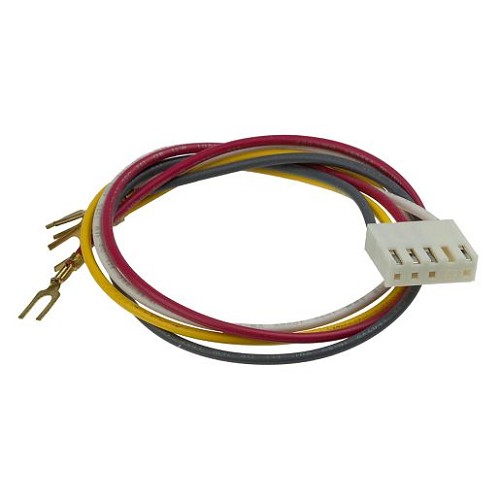

LiftMaster K74-10352 RPM Sensor Board Harness
The LiftMaster K74-10352 is a replacement RPM sensor board harness used with select LiftMaster mechanical commercial door operator electrical boxes. This harness is part of the low-voltage sensing circuit that helps the operator monitor drive movement through the RPM sensor system.
A failed or damaged RPM sensor harness can cause intermittent operator faults, missed speed or movement feedback, inconsistent travel behavior, or RPM-related error conditions depending on the operator and control board. Because it is a small wiring component, it is often checked after confirming that the sensor board, plugs, and electrical box wiring are clean, secure, and undamaged.
This harness should be matched by part number and parts diagram. Similar-looking harnesses may have different connectors, wire lengths, pin layouts, or control-board connections and may not interchange correctly.
Common Use Cases
- Replacing a damaged, missing, pinched, or corroded RPM sensor board harness
- Repairing RPM sensor wiring inside a compatible LiftMaster mechanical commercial operator electrical box
- Restoring a reliable harness connection after electrical box service or board replacement
- Correcting intermittent RPM sensor circuit issues after wiring damage has been confirmed
- Replacing the harness when the original connector or leads are worn or unreliable
Compatible With
The K74-10352 harness is commonly listed for use with various LiftMaster mechanical commercial door operator electrical boxes. Compatibility should be confirmed by the operator parts diagram, electrical box layout, and original harness part number.
- Select LiftMaster mechanical commercial door operator electrical boxes
- Select LiftMaster commercial door operators that call for RPM sensor board harness K74-10352 or 74-10352
- Mechanical operator electrical box assemblies where the parts diagram identifies the RPM sensor board harness as K74-10352
- Applications using the matching RPM sensor board connector style and wire routing shown in the manufacturer parts diagram
Not Intended For
- Residential garage door openers unless the parts diagram specifically calls for this harness
- Logic boards, RPM sensor boards, or complete electrical box replacements
- Operators requiring a different RPM sensor harness length, connector, or pin layout
- Repairs where the fault is caused by the logic board, RPM sensor board, power circuit, or damaged field wiring
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | RPM sensor board harness |
| Part Number | K74-10352 |
| Base / Related Number | 74-10352 |
| Application | RPM sensor harness connection inside select mechanical commercial door operator electrical boxes |
| Compatible Operator Type | Select LiftMaster mechanical commercial door operators, when listed in the parts diagram |
| Connection Type | Low-voltage harness connection for the RPM sensor board circuit |
| Installation Area | Commercial door operator electrical box |
| Notes | Confirm connector style, harness routing, and original part number before ordering. |
Also Known As / Related Part Numbers
- LiftMaster K74-10352
- LiftMaster 74-10352
- K74-10352
- 74-10352
- 08-74-10352
- RPM Sensor Board Harness
- LiftMaster RPM Sensor Harness
Related parts that may be involved in the same fault but are not the same item: RPM sensor board, logic board, operator electrical box, wiring connectors, and motor feedback components. Confirm the failed part before ordering.
Technician Note
When diagnosing an RPM-related fault, do not assume the harness is the only problem. Check for a loose plug, damaged wire, corrosion, broken strain relief, board damage, or a motor/control fault that is being reported as a sensor issue.
If the original harness was damaged by a moving part, sharp sheet metal edge, or electrical box service, correct the routing issue before installing the replacement harness.
Before Ordering, Confirm
- The operator parts diagram calls for K74-10352 or 74-10352.
- The operator is a compatible LiftMaster mechanical commercial door operator.
- The connector style and harness routing match the original part.
- The RPM sensor board and logic board have been inspected for damage.
- The electrical box wiring is not burnt, pinched, corroded, or modified.
- The issue has not been traced to a different board or control component.
Professional Advisory
Disconnect power before servicing the commercial door operator electrical box. This part is a low-voltage harness, but the operator cabinet may also contain line-voltage wiring and moving mechanical components.
If the operator has repeated RPM, travel, or movement faults after the harness is replaced, a qualified commercial door technician should inspect the RPM sensor, control board, motor circuit, limits, and mechanical drive system.
Product Q&A
Is K74-10352 the RPM sensor board?
No. K74-10352 is the RPM sensor board harness. The sensor board itself, logic board, and electrical box components are separate parts.
What operators use this harness?
This harness is used with select LiftMaster mechanical commercial door operator electrical boxes where the parts diagram calls for K74-10352 or 74-10352.
Can a bad harness cause RPM sensor faults?
Yes, a damaged or loose harness can contribute to RPM sensor circuit faults, but the sensor board, logic board, wiring, and mechanical drive system should also be checked.
What should I compare before ordering?
Compare the original part number, connector style, wire length, pin layout, and operator parts diagram before ordering this harness.
