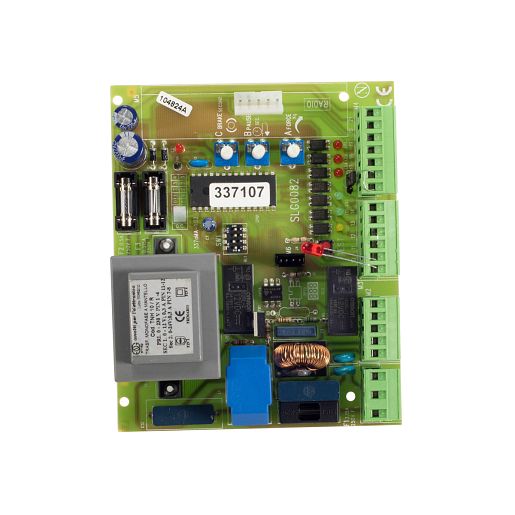

Liftmaster CB2, CONTROL BOARD, 2 MOTOR
The LiftMaster CB2 is a two-motor control board for select LiftMaster commercial gate operator applications. In dual-gate or two-motor systems, the board must do more than receive a simple open command. It coordinates timing, direction, accessory inputs, safety inputs, and the relationship between the two moving gate sections or motor circuits.
This board should be matched to the original CB2 part number and the operator wiring diagram. Similar LiftMaster boards can have different voltage ratings, terminal assignments, and motor-control functions. If a dual operator is out of sequence, stopping unevenly, or losing one motor output, the board may be involved, but motor wiring, limit wiring, surge damage, and accessory inputs should be checked before replacing the board.
Common Replacement Reasons
- One motor output does not respond after motor and wiring checks.
- Dual gate leaves are no longer controlled correctly by the board.
- Accessory inputs work inconsistently on a two-motor control system.
- Board has relay damage, corrosion, burned components, or failed terminals.
Compatible With
Common Compatible Applications
- Select LiftMaster commercial gate operators using a CB2 two-motor control board.
- Dual-motor or master/second style gate control systems where CB2 is listed in the parts diagram.
- Older LiftMaster commercial gate control boxes marked for CB2 board replacement.
Additional Model Families to Verify
- Commercial swing gate systems with dual motor control.
- Commercial slide or specialty gate systems where two-motor control is specified.
- LiftMaster/Elite operator control boxes with matching CB2 terminal layout.
Important Compatibility Notes
Verify motor count, voltage, board marking, and terminal layout. CB2 and CB2-120 are related by function but may not be the same replacement depending on voltage and kit configuration.
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster / Chamberlain Group |
| Product Type | Two-motor control board |
| Part Number | CB2 |
| Application | Dual-motor gate operator control |
| Compatible Operator Type | Select LiftMaster commercial gate operators |
| Motor Configuration | Two-motor / master-second style applications where specified |
| Notes | Verify by parts diagram and old board label |
Also Known As / Related Part Numbers
- CB2
- LM-CB2
- LIF-CB2
- LiftMaster CB2
- Control Board 2 Motor
- Two Motor Control Board
Technician Note
Before condemning the board, check whether both motor circuits, limit circuits, and safety inputs are sending the board the correct signals. A wiring fault can look like a failed board.
Before Ordering Checklist
- Confirm the old board is marked CB2.
- Verify the operator uses a two-motor control configuration.
- Compare terminal layout and accessory wiring.
- Check motor leads and limit wiring before installing the board.
- Reconnect and test all required safety devices.
Professional Advisory
Dual-motor gate systems can move unexpectedly if wiring is wrong. Use a qualified gate technician when the wiring is not labeled or when high-voltage testing is required.
Product Questions & Answers
What makes CB2 different from a single-motor board?
CB2 is intended for two-motor or master/second style control applications where the board must coordinate more than one motor circuit.
Is CB2 the same as CB2-120?
Not automatically. CB2-120 is a 120V control board listing, while CB2 must be matched by the original board and operator diagram.
Can this board fix an out-of-sync dual gate?
It may if the board is the failed component, but motor wiring, limits, hinges, travel setup, and accessory inputs should be checked first.
Does this board replace safety devices?
No. Safety devices remain separate and must stay connected and working with the replacement board.
Should I replace the board after lightning damage?
Only after checking grounding, surge protection, accessory wiring, and connected devices, or the new board may fail again.
