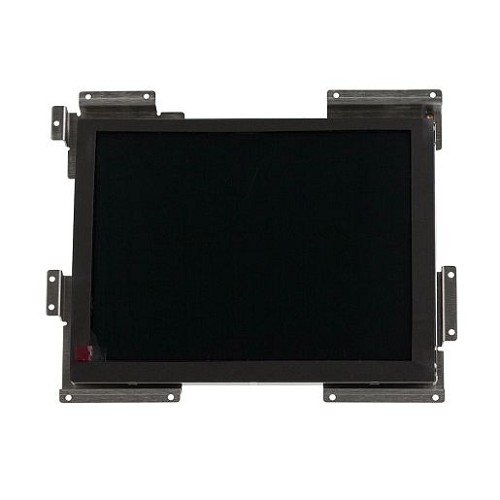

LiftMaster IPACLCDK IPAC LCS Frame with Interconnect Kit
The LiftMaster IPACLCDK is a specialized service kit for the IPAC display assembly area. It is commonly described as the IPAC LCS frame with interconnect kit, meaning it supports the large color screen mounting structure and the connection path between the display area and the system electronics. In the field, this type of kit is used when the screen assembly is not physically supported correctly, when the interconnect hardware is damaged, or when display-related parts need to be rebuilt as part of an IPAC service repair. It is separate from the touchscreen kit itself. Because the IPAC platform has several display and board-related service parts, technicians should identify whether the failure is in the touchscreen, LCD frame/interconnect, main electronics, peripheral PCB, or wiring before ordering.
Compatible With
- LiftMaster IPAC telephone entry / Internet Protocol access control systems
- IPAC display frame and interconnect repairs where IPACLCDK is listed on the parts diagram
- IPAC LCS / large color screen assembly repairs requiring frame and interconnect components
- Use with IPACTSK only when the service repair also requires the touchscreen kit
- Not for CAPXL, CAPXLV, CAPXS, EL2000SS, EL25, or EL1SS systems
- Related IPAC repair parts include IPACTSK, IPACPCBK, IPACIOK, IPACMBK, IPACSK, IPACLEDK, IPACLSBK, and IPACHK when separately required
Features & Specifications
| Manufacturer | LiftMaster |
|---|
| Product Type | LCS frame with interconnect kit |
|---|
| Part Number | IPACLCDK |
|---|
| Application | IPAC display frame / interconnect repair |
|---|
| Compatible System | IPAC telephone entry / Internet Protocol access control |
|---|
| Display Reference | LCS / large color screen frame |
|---|
| Included Components | Frame and interconnect components; verify exact contents with supplier listing |
|---|
| Notes | Separate from IPACTSK touchscreen kit |
|---|
Also Known As / Related Part Numbers
- IPACLCDK
- LIF-IPACLCDK
- LM-IPACLCDK
- IPAC LCD frame with interconnect kit
- IPAC LCS frame kit
- IPAC large color screen frame
- IPAC display interconnect kit
Technician Note
If the display is physically damaged, identify whether the touchscreen, frame, interconnect board/cable, or supporting electronics failed. Ordering only the touchscreen will not correct a broken frame or interconnect problem.
Before Ordering
- Confirm the system is a LiftMaster IPAC unit.
- Verify IPACLCDK on the IPAC service parts list or diagram.
- Inspect the touchscreen, frame, cables, and board connections.
- Determine whether IPACTSK or another IPAC kit is also required.
- Do not use IPACLCDK for CAPXL/CAPXLV display repairs.
Professional Advisory
Display frame and interconnect repairs require careful handling of low-voltage electronics and display connections. Disconnect power before service and protect cables from pinching or static damage during reassembly.
Product Questions & Answers
What is IPACLCDK used for?
IPACLCDK is the IPAC LCS frame with interconnect kit used in LiftMaster IPAC display assembly repairs.
Is IPACLCDK the touchscreen?
No. The touchscreen kit is IPACTSK. IPACLCDK is the frame and interconnect kit for the IPAC display area.
Will this fit CAPXL or CAPXLV systems?
No. CAPXL and CAPXLV use different faceplate and display assemblies. IPACLCDK is for IPAC systems.
When would the frame with interconnect kit be needed?
It may be needed when the display frame, mounting support, interconnect hardware, or display connection path is damaged or missing.
Should I replace the touchscreen at the same time?
Only if the touchscreen is also damaged or failed. Inspect the display assembly and use the IPAC parts diagram to decide which kits are needed.
