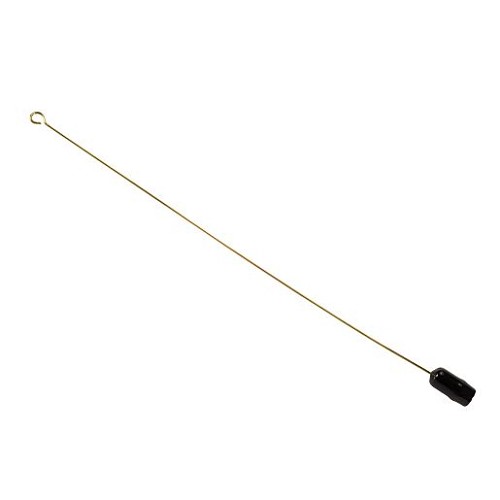

LiftMaster K001C3196-3 315 MHz Antenna
The LiftMaster K001C3196-3 is a 315 MHz replacement antenna for select LiftMaster commercial slide gate operator radio systems. On a gate operator, the antenna is the part that helps the receiver pick up the signal from compatible remote controls, keypads, and access transmitters. A missing, bent, corroded, or poorly routed antenna can reduce operating range and make a remote seem weak even when the transmitter battery and receiver are still good.
This antenna is most commonly found in SL575GL and SL595GL slide gate operator service information and is tied to 315 MHz radio equipment. It should be matched by part number, frequency, and parts diagram rather than by appearance alone. If the operator uses a different receiver frequency, replacing the antenna with this part will not convert that system to 315 MHz.
Use this item when the operator parts diagram calls for K001C3196-3 or the related K1C3196-3 antenna. For continued reception problems, a technician should also check antenna cable routing, receiver condition, remote programming, electrical noise, and physical obstructions around the gate operator.
What This Part Does
- Provides the external antenna point for compatible 315 MHz LiftMaster receiver systems.
- Helps maintain remote, keypad, and transmitter range when the original antenna is damaged or missing.
- Supports select commercial slide gate operator applications that use 315 MHz radio control.
Features and Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster / Chamberlain Group |
| Product Type | Replacement radio antenna |
| Part Number | K001C3196-3 |
| Frequency | 315 MHz |
| Application | Select commercial slide gate operator receiver systems |
| Compatible Operator Type | Commercial slide gate operators using a matching 315 MHz receiver |
| Notes | Match by part number, receiver frequency, and operator parts diagram |
Compatible With / Common Applications
- LiftMaster SL575GL slide gate operators when the parts diagram calls for K001C3196-3.
- LiftMaster SL595GL slide gate operators when equipped with the matching 315 MHz receiver system.
- Select LiftMaster commercial slide gate operator radio assemblies using a 315 MHz external antenna.
- 315 MHz Security Plus era radio-control applications where K001C3196-3 or K1C3196-3 is specified.
- Not for converting 390 MHz, 433 MHz, 310 MHz, or Security Plus 2.0 receiver systems to 315 MHz.
Also Known As / Related Part Numbers
- K001C3196-3
- K1C3196-3
- 001C3196-3
- 315 MHz antenna
- LiftMaster antenna 315MHz
- SL575GL antenna
- SL595GL antenna
Technician Note
Poor remote range is not always caused by the antenna. Check transmitter batteries, receiver programming, coax/antenna connections, antenna placement, nearby electrical interference, and receiver board condition before assuming this part is the only failure.
Before Ordering Checklist
- Confirm the operator uses a 315 MHz receiver system.
- Confirm the parts diagram lists K001C3196-3 or K1C3196-3.
- Inspect the existing antenna connection and cable path for damage or corrosion.
- Verify the remote or keypad is programmed and using the correct frequency.
- Do not order this part as a frequency conversion kit.
Professional Advisory
Gate operator radio problems can involve receiver wiring and operator controls. If the operator moves unexpectedly, has missing safety devices, or has damaged control wiring, have the system inspected by a qualified gate technician before returning it to service.
Product Questions and Answers
What frequency is the K001C3196-3 antenna for?
K001C3196-3 is a 315 MHz antenna. It should be used only with compatible LiftMaster radio receiver systems that are designed for 315 MHz operation.
Which operators is this antenna commonly used with?
It is commonly associated with LiftMaster SL575GL and SL595GL slide gate operators when the operator parts diagram calls for K001C3196-3 or K1C3196-3.
Will this antenna make a 390 MHz receiver work with 315 MHz remotes?
No. An antenna does not change receiver frequency. The receiver, remote, keypad, and antenna system must all match the correct radio technology.
Can this fix weak remote range?
It may help if the original antenna is missing, damaged, corroded, or poorly connected. Weak range can also come from transmitter batteries, receiver problems, interference, or bad antenna routing.
Is this a universal gate antenna?
No. It is a LiftMaster 315 MHz replacement antenna and should be matched by part number and receiver frequency before ordering.
