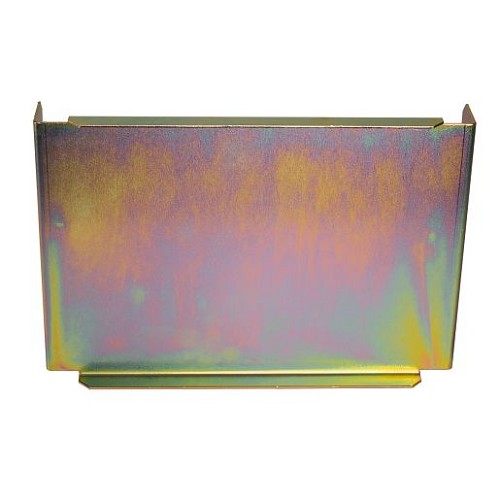

LiftMaster K10-30702-2 Chain Guard Top Cover for SL595U and SL595UL
The LiftMaster K10-30702-2 chain guard top cover is a protective cover component used on select heavy-duty LiftMaster commercial slide gate operators, most commonly SL595U and SL595UL applications. This part helps complete the chain guard assembly by covering the upper portion of the drive chain area and helping shield the moving chain from contact and debris. It is often replaced when the original cover is dented, missing, broken, or removed during previous service. On high-cycle slide gate operators, the guard assembly should sit squarely and provide clearance around the drive chain without rubbing, binding, or vibrating loose. This item is different from the full chain, chain bracket, idler, or sprocket assembly. It should be matched to the exact operator generation because SL-series chain guard parts can vary between GL, U, and UL versions.
Features & Specifications
| Manufacturer | LiftMaster / Chamberlain Group |
|---|
| Product Type | Chain guard top cover with mounting plate |
|---|
| Part Number | K10-30702-2 |
|---|
| Application | Top cover/guard for chain guard assembly on select commercial slide gate operators |
|---|
| Compatible Operator Type | Gate operator replacement part |
|---|
| Notes | Several sources list this part for SL595U and SL595UL. Some broader references mention SL585U/SL595U family use, so verify the parts diagram for exact operator suffix. |
|---|
Compatible With
- LiftMaster SL595U slide gate operators
- LiftMaster SL595UL slide gate operators
- Select SL585U and SL595U family references where the parts diagram confirms this top cover
Also Known As / Related Part Numbers
- K10-30702-2
- 10-30702-2
- 10-30702
- LM-K10-30702-2
Technician Note
Several sources list this part for SL595U and SL595UL. Some broader references mention SL585U/SL595U family use, so verify the parts diagram for exact operator suffix.
Before Ordering Checklist
- Confirm whether the operator is SL595U or SL595UL.
- Check the existing chain guard mounting plate and fasteners.
- Inspect the drive chain for proper clearance after installing any cover.
- Do not force a top cover that does not line up with the mounting points.
Professional Advisory
Gate operators can contain moving mechanical parts, stored force, battery circuits, and high-voltage wiring depending on the model. Do not bypass safety devices or operate the gate with exposed, loose, or damaged components. If the operator has unsafe movement, burned wiring, power problems, or missing safety protection, have the system inspected by a qualified gate technician.
Product Questions and Answers
What is included with K10-30702-2?
It is commonly listed as a chain guard top cover with mounting plate, but kit contents should be checked on the supplier listing.
Does it fit SL595U?
Yes. SL595U is one of the strongest listed compatibility matches.
Does it fit SL595UL?
Yes, many listings also show SL595UL compatibility.
Is this the complete chain guard assembly?
It is a top cover/guard component, not the entire drive chain assembly.
Why should chain clearance be checked after installation?
A misaligned guard can rub the moving chain or create noise and wear.
