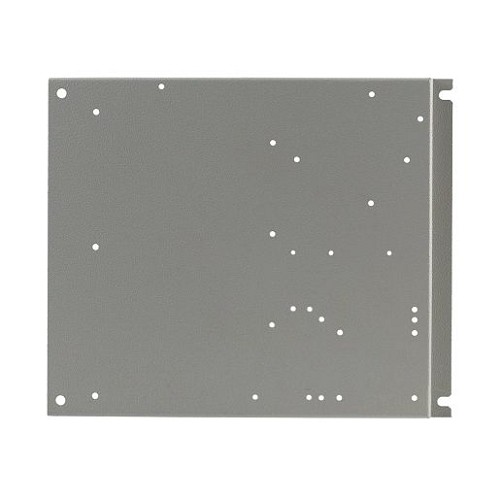

Liftmaster K10-G0614, E-BOX PANEL
The LiftMaster K10-G0614 is a replacement E-box or electrical box panel for select LiftMaster swing gate operators. The E-box area is where important operator controls, wiring routes, and mounting hardware are housed, so the panel needs to match the cabinet layout and component mounting points. A damaged or corroded panel can make it difficult to secure components correctly and may create service issues when controls or wiring are moved from their intended positions. K10-G0614 is broadly listed for various LiftMaster swing gate operators, and related references identify it as 10-G0614 and G10G0614. Because this part is tied to the physical control-box layout, it should not be selected by part name alone. Match the original panel, operator model, and illustrated parts breakdown before ordering.
Compatible With
Confirmed / commonly listed applications
- Various LiftMaster swing gate operators using K10-G0614 / 10-G0614 E-box panel
- Select LiftMaster commercial swing operator control box assemblies where shown in the parts diagram
Related application notes
- May be described as an electrical box panel, E-box panel, internal mounting panel, or logic board plate
- Not confirmed as a universal panel for all slide or barrier operators
- Verify cabinet layout and mounted component positions before ordering
Also Known As / Related Part Numbers
- K10-G0614
- 10-G0614
- G10G0614
- LiftMaster K10-G0614
- Electrical box panel
- E-box panel
- Internal control panel
Features & Specifications
| Manufacturer | LiftMaster / Chamberlain Group |
|---|
| Product Type | E-box panel / electrical box panel |
|---|
| Part Number | K10-G0614 |
|---|
| Application | Control enclosure mounting panel |
|---|
| Compatible Operator Type | Various LiftMaster swing gate operators |
|---|
| Material / Finish | Metal panel; finish may vary |
|---|
| Included Components | Panel only unless listing states otherwise |
|---|
| Notes | Verify by operator parts diagram |
|---|
Technician Note
If an E-box panel is being replaced due to rust or water intrusion, inspect the enclosure, cover seals, conduit, wire entries, and mounted electronics before reusing the old components.
Before Ordering Checklist
- Confirm the operator parts diagram lists K10-G0614, 10-G0614, or G10G0614.
- Compare the old panel size, hole pattern, and mounting tabs to the replacement.
- Confirm whether controls, boards, or relays must be transferred from the old panel.
- Label wiring before removing mounted electrical components.
- Do not reuse damaged or unsafe electrical hardware.
Important Ordering Warnings
- This is a mounting panel, not a complete electrical box assembly.
- It does not include logic boards, relays, switches, or wiring unless specifically stated.
- Incorrect panel fitment can cause component mounting and wiring problems.
Professional Advisory
Electrical box service can expose hazardous voltage and control wiring. Repairs involving wiring transfer or control components should be performed by a qualified gate technician.
Product Questions and Answers
What is the K10-G0614 E-box panel used for?
It is a replacement electrical box panel or internal mounting panel for select LiftMaster swing gate operators.
What are related numbers for K10-G0614?
Related references include 10-G0614 and G10G0614.
Does this include the logic board?
No. It is generally the panel only unless a supplier listing specifically includes other components.
Can it fit slide gate operators?
The strongest listings describe use with various swing gate operators. Use on other equipment should be verified by parts diagram.
Why should the old panel be compared first?
The panel must match the cabinet layout, mounting holes, and component positions for the operator to be serviced correctly.
