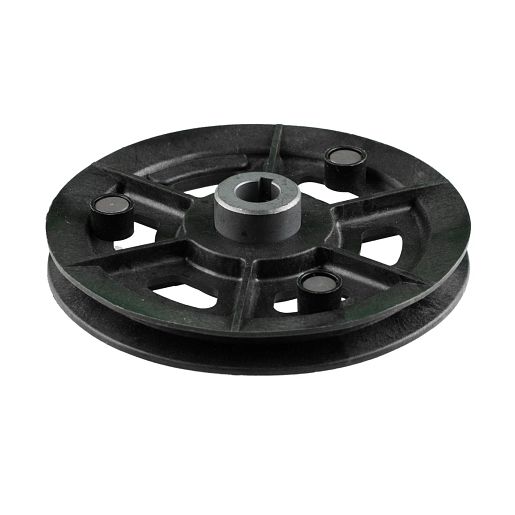

LiftMaster K17-G0475 6 x 5/8 Replacement Pulley
The K17-G0475 pulley is a factory replacement drive pulley used in select LiftMaster commercial swing gate operator systems. The 6 inch diameter and 5/8 inch bore are important details because they control belt fit, shaft fit, and drive alignment. A pulley with the wrong bore or diameter can create speed, tension, and belt wear problems.
This part is commonly used in SW420GL and SW470GL service work. If a gate is noisy, slipping, or producing belt dust, the pulley should be checked along with the belt, motor mounting, gear reducer alignment, set screws, and shaft condition. The part should be matched by model and diagram, not by appearance alone.
Compatible With
Confirmed compatibility references include SW420GL and SW470GL swing gate operators. Older or non-GL models should be checked against the parts diagram.
- LiftMaster SW420GL swing gate operator
- LiftMaster SW470GL swing gate operator
- Select LiftMaster SW420 swing gate assemblies where the parts diagram calls for K17-G0475
- Select LiftMaster SW470 swing gate assemblies where the parts diagram calls for K17-G0475
Features & Specifications
| Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Drive pulley |
| Part Number | K17-G0475 |
| Application | Commercial swing gate operator drive system |
| Compatible Operator Type | Swing gate operator |
| Pulley Size | 6 inch diameter x 5/8 inch bore |
| Related References | G17G0475, 17-G0475 |
| Notes | Verify pulley size, bore, and belt alignment before ordering |
Also Known As / Related Part Numbers
- K17-G0475
- 17-G0475
- G17G0475
- LM-K17-G0475
Technician Note
A worn pulley can damage a good belt quickly. After replacement, run the operator through cycles with the cover open only when safe to confirm the belt is tracking straight and not walking off the pulley.
Before Ordering
- Confirm SW420GL or SW470GL model reference
- Match the 6 inch x 5/8 inch pulley size
- Verify K17-G0475, G17G0475, or 17-G0475 in the parts diagram
- Inspect the belt, shaft, set screws, and motor alignment
- Do not replace a 7 inch pulley with this 6 inch pulley
Professional Advisory
Disconnect power before servicing the operator. For high-voltage wiring, three-phase equipment, moving gate hardware, or uncertain diagnosis, use a qualified gate technician. Do not bypass entrapment protection or safety devices to make an operator run.
Product Questions & Answers
Which models use K17-G0475?
K17-G0475 is commonly listed for LiftMaster SW420GL and SW470GL swing gate operators.
What are the related part numbers?
G17G0475 and 17-G0475 are commonly listed related references for K17-G0475.
Is this the same as K17-2701?
No. K17-G0475 is listed as a 6 inch x 5/8 inch pulley, while K17-2701 is listed as a 7 inch x 5/8 inch pulley.
Can pulley wear cause belt noise?
Yes. Worn grooves, loose set screws, or misalignment can cause belt noise, dust, and tracking problems.
Can I use this on an SW490GL?
The stronger SW490GL pulley reference is K17-2701. Use K17-G0475 only if the SW490 parts diagram specifically calls for it.
