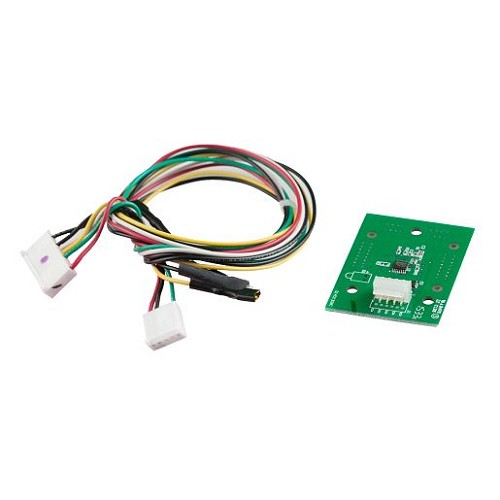

Liftmaster K1D8247 Hall Effect Sensor Board use on CSW200U Swing Gate Operators
The LiftMaster K1D8247 hall effect sensor board is a board-style movement feedback component used on select CSW200U swing gate operators. It helps the control system read gate movement or position feedback, which is important for proper travel monitoring and operator response.
This part is typically considered when the operator has hall effect sensor faults, inconsistent movement feedback, or diagnostic behavior that points to the sensor board. Before replacing it, the technician should inspect the harness, connector pins, sensor mounting, control board input, and mechanical drive components. A sensor fault can be caused by wiring or mechanical problems, not only by the board.
K1D8247 is commonly tied to CSW200U and related CSW200UL references. It should not be mixed with hall effect sensor kits used on slide gate operators or older SW420 applications.
Compatible With
Common Compatible Models
- LiftMaster CSW200U swing gate operator
- LiftMaster CSW200UL swing gate operator when confirmed by parts diagram
Additional Model Families to Verify
- CSW200 series operators only when the parts diagram calls for K1D8247
- Older CSW200 references should be verified by generation and control system before ordering
Important Compatibility Notes
- Not the same as K74-G0589 for SL590 / SL595 / HS670 slide gate operators
- Not the same as K74-18381 for SW420GL swing gate operators
- Verify board connector layout and original part number before ordering
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Hall effect sensor board |
| Part Number | K1D8247 |
| Application | Movement or position feedback board for select CSW swing gate operators |
| Compatible Operator Type | Commercial swing gate operator |
| Common Models | CSW200U, CSW200UL when verified |
| Notes | Match original board and parts diagram |
Also Known As / Related Part Numbers
- K1D8247
- 1D8247
- K1D-8247
- Hall effect sensor board for CSW200U
- CSW200U hall effect board
Technician Note
Do not assume a board-style sensor failure until wiring, connectors, target condition, operator drive condition, and board inputs have been inspected. A loose harness can create the same symptoms as a failed sensor board.
Before Ordering Checklist
- Confirm the operator model is CSW200U or verified CSW200UL
- Match the original board number to K1D8247
- Compare connector layout before ordering
- Inspect harness and sensor mounting area
- Do not substitute K74-style sensor kits
Professional Advisory
CSW swing gate operators use high-force moving hardware. If the gate is binding, moving unpredictably, or showing safety faults, have a qualified gate technician diagnose the system before replacing electronic parts.
Important Ordering Warnings
- K1D8247 is not interchangeable with K74-G0589 or K74-18381
- Older CSW200 generations may use different sensor or control parts
Product Questions and Answers
What does the K1D8247 board do?
It provides movement or position feedback for select CSW200U swing gate operators so the control system can monitor travel.
Which operators commonly use K1D8247?
It is commonly listed for LiftMaster CSW200U, with CSW200UL appearing in related references when confirmed by parts diagram.
Is this a control board?
No. It is a hall effect sensor board, not the main operator control board.
No. K74-G0589 is a different hall effect sensor kit used on select slide gate operators.
What should be checked before replacing this board?
Check the harness, connectors, mounting, target area, mechanical drive condition, and control board input before replacing the sensor board.
