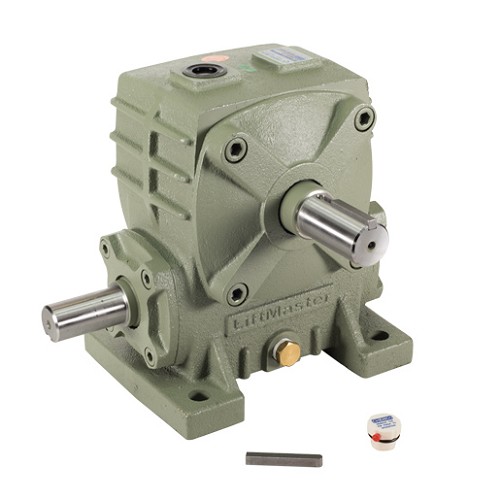

LiftMaster K32-34655-1 30:1 Gear Reducer for CSW Swing Gate Operators
The LiftMaster K32-34655-1 gear reducer is a 30:1 gearbox assembly used in select commercial swing gate operators. The reducer takes the motor output and changes it into controlled torque at the correct speed for gate movement. On CSW-style swing operators, the gearbox is one of the main mechanical components that allows the operator to move heavier gates smoothly and consistently.
This part should be treated as a model-specific mechanical replacement, not a generic gearbox. Gear ratio, shaft orientation, mounting base, coupling arrangement, and operator generation must line up with the original unit. If the gearbox is noisy, has excessive play, leaks, or binds under load, the gate should also be checked for hinge drag, arm geometry problems, and physical obstruction before the new reducer is installed.
Common Replacement Reasons
- Grinding, popping, or rough gearbox noise
- Gate moves unevenly or stalls under load
- Excessive shaft play or mechanical backlash
- Visible gearbox leakage or damaged housing
- Motor runs but gate output movement is weak or inconsistent
Compatible With
Commonly associated with select LiftMaster CSW commercial swing gate operators. Confirm by the operator model and parts diagram.
- LiftMaster CSW24U commercial swing gate operator
- LiftMaster CSW24UL commercial swing gate operator
- LiftMaster CSW24V commercial swing gate operator
- Select LiftMaster CSW Series commercial swing gate operators using the 30:1 top gear reducer
- Commercial swing gate systems requiring LiftMaster gearbox part K32-34655-1
Also Known As / Related Part Numbers
- K32-34655-1
- K32-34655
- LM-K32-34655-1
- 30:1 gear reducer
- CSW24U gearbox
- CSW24UL gearbox
- CSW24V gearbox
Features & Specifications
| Manufacturer | LiftMaster |
|---|
| Product Type | Gear reducer / gearbox |
|---|
| Part Number | K32-34655-1 |
|---|
| Gear Ratio | 30:1 |
|---|
| Application | Commercial swing gate operator drive system |
|---|
| Compatible Operator Type | Select CSW series swing gate operators |
|---|
| Common Models | CSW24U, CSW24UL, CSW24V |
|---|
| Notes | Confirm shaft orientation, mounting, gear ratio, and parts diagram before ordering |
|---|
Technician Note
A failed gearbox is sometimes caused by gate drag, poor hinge condition, incorrect arm geometry, or repeated obstruction. Correct the gate mechanics before installing the replacement reducer.
Before Ordering
- Verify the original gearbox is marked K32-34655-1 or K32-34655
- Confirm the operator is a compatible CSW24 or CSW series model
- Match the 30:1 ratio and mounting arrangement
- Inspect gate hinges, arm hardware, and stops for binding
- Confirm whether any couplers, keys, or hardware should be replaced at the same time
Professional Advisory
Gear reducer replacement involves heavy moving gate hardware and stored mechanical force. A qualified gate technician should perform the repair when alignment, arm geometry, or electrical testing is required.
Product Questions
What operators use the K32-34655-1 gear reducer?
It is commonly listed for LiftMaster CSW24U, CSW24UL, CSW24V, and select CSW series commercial swing gate operators.
What does the 30:1 ratio mean?
The gearbox reduces motor speed and increases torque at a 30:1 ratio so the operator can move the swing gate at the proper controlled speed.
Is K32-34655 the same as K32-34655-1?
K32-34655 is commonly listed as a related or also-known-as number, but the original part number and parts diagram should be matched before ordering.
Can a bad gate hinge damage this gearbox?
Yes. Gate binding, hinge drag, or poor arm geometry can overload the reducer and shorten the life of the replacement gearbox.
What should be checked after installing the gearbox?
Check gate balance, arm alignment, limit setup, obstruction force settings, hardware tightness, and normal open/close travel.
