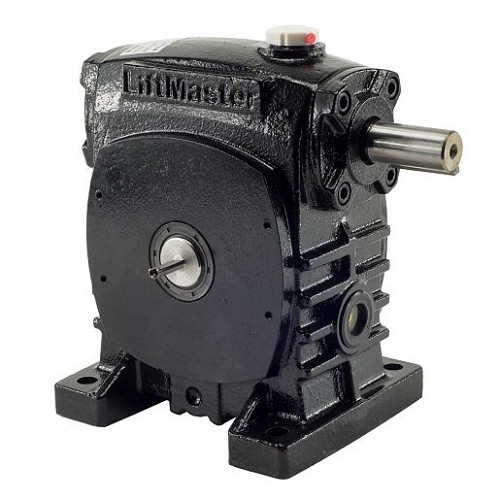

Liftmaster K32-34669-1, GEAR REDUCER, 10:1, #60
The LiftMaster K32-34669-1 is a 10:1, #60 gear reducer used in select CSL slide gate operator drive systems. It works as the operator transmission, changing motor output into controlled drive speed and torque for the gate chain system.
A gear reducer is not just a generic gearbox. Ratio, chain size, mounting pattern, shaft orientation, and operator series all affect fitment. This part should be used only where K32-34669-1, or a confirmed related number such as K32-34669-3, is shown in the service parts information.
Compatible With
Common Compatible Models
- LiftMaster CSL series slide gate operators using K32-34669-1
- LiftMaster CSL commercial slide gate operator configurations requiring a 10:1 #60 gearbox
Additional Model Families to Verify
- Select LiftMaster / Elite slide gate drive systems where K32-34669-1 or K32-34669-3 is listed by parts diagram
Important Compatibility Notes
- Some references list K32-34669-3 as related to K32-34669-1. Verify the current service part before ordering.
- Do not substitute a 30:1 gearbox or a different chain-size gearbox.
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Gear reducer / gearbox assembly |
| Part Number | K32-34669-1 |
| Gear Ratio | 10:1 |
| Gearbox / Chain Reference | #60 |
| Application | Slide gate operator drivetrain speed and torque reduction |
| Compatible Operator Type | Commercial slide gate operator |
| Common Model Family | CSL series where specified |
Also Known As / Related Part Numbers
- K32-34669-1
- 32-34669-1
- K32-34669-3
- 32-34669-3
- K32346691
- LiftMaster 10:1 #60 gear reducer
Technician Note
If a CSL operator is noisy or jerky, inspect chain tension, sprockets, gate rollers, and operator alignment before replacing the gearbox. Excessive gate drag can shorten the life of the new reducer.
Before Ordering Checklist
- Confirm the operator is a CSL configuration using this gearbox.
- Verify 10:1 ratio and #60 gearbox reference.
- Compare shaft orientation and mounting pattern.
- Check related number K32-34669-3 if it appears in your parts diagram.
- Inspect the gate and chain system for binding or misalignment.
Professional Advisory
Gearbox replacement involves drivetrain components that can pinch, bind, or move unexpectedly. Secure the gate and disconnect power before service. Use a qualified gate technician for mechanical and electrical diagnosis.
Product Questions & Answers
What model family commonly uses K32-34669-1?
It is commonly referenced for LiftMaster CSL commercial slide gate operators that require a 10:1 #60 gear reducer.
Is K32-34669-3 related to K32-34669-1?
Yes. Some references list K32-34669-3 as a related or alternate service reference, but the current parts diagram should be checked before ordering.
Can this replace a 30:1 gear reducer?
No. A 10:1 gearbox should not be substituted for a 30:1 gearbox because gate speed and torque would change.
What symptoms point to gear reducer wear?
Grinding, binding, excessive play, leakage, poor torque transfer, and noisy drivetrain operation can point to gearbox wear.
Should chain alignment be checked during replacement?
Yes. Chain tension, sprocket alignment, and gate movement should be checked so the new gearbox is not overloaded.
