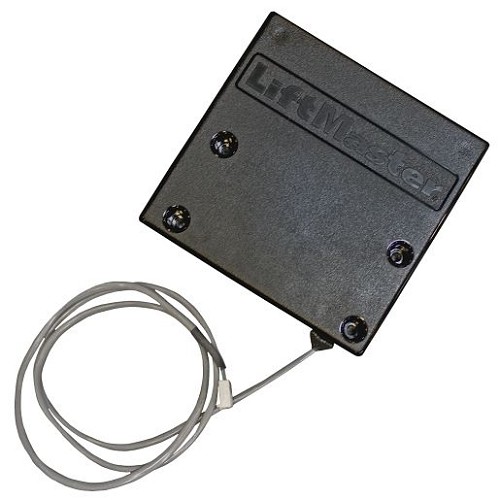

Liftmaster K41-0246-000 Limit System Encoder for IHSL24Ul / INSL24UL Slide Gate Openers
The LiftMaster K41-0246-000 is an OEM limit system encoder service part for the industrial slide gate operator limit system used on the IHSL24UL and INSL24UL platforms. This encoder helps the operator track gate travel position so the control system can recognize movement, limits, slowdown points, and travel errors. It is commonly ordered when an industrial slide gate operator has limit learning problems, inconsistent travel counts, unexplained limit faults, or symptoms related to position feedback after other mechanical issues have been ruled out. This part is shared across the IHSL24UL and INSL24UL limit system family, but it should still be verified against the parts diagram because the encoder, limit system, harness, and control board are separate components. Correct diagnosis matters on these heavy slide gate systems because binding chains, sprocket wear, gear reducer issues, or control faults can mimic encoder symptoms.
Compatible With
This compatibility list is written from commonly published LiftMaster service-part references and should be verified against the operator parts diagram, model number, suffix, and original part number before ordering.
- LiftMaster IHSL24UL industrial heavy-duty slide gate operator
- LiftMaster IHSL24ULMC industrial heavy-duty slide gate operator
- LiftMaster INSL24UL industrial lite-duty slide gate operator
- LiftMaster INSL24ULMC industrial lite-duty slide gate operator
- Limit system assemblies used on the IHSL24UL / INSL24UL industrial slide gate family
Features & Specifications
| Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Limit system encoder / position feedback service part |
| Part Number | K41-0246-000 |
| Application | Industrial slide gate operator travel-position feedback |
| Compatible Operator Type | 24VDC industrial slide gate operators |
| Compatible Models | IHSL24UL, IHSL24ULMC, INSL24UL, INSL24ULMC where confirmed by parts diagram |
| Related System Parts | K41-0247-000 limit system, K41-0248-000 alarm, K41-0257-000 harness kit |
| Notes | Encoder is not the complete limit assembly, main control board, or motor drive board |
Also Known As / Related Part Numbers
- K41-0246-000
- 41-0246-000
- Limit system encoder
- Limit system encoder IHSL24UL
- Limit system encoder INSL24UL
- K41-0247-000 related limit system
- K41-0257-000 related harness kit
Technician Note
Encoder failures should be diagnosed along with chain tension, sprocket condition, gate travel smoothness, limit setup, and wiring. A mechanical gate problem can produce symptoms that look like a bad encoder.
Before Ordering Checklist
- Confirm whether the operator is IHSL24UL or INSL24UL.
- Compare the part location in the operator parts diagram.
- Inspect harness connections before condemning the encoder.
- Check for binding, chain slop, worn sprockets, or physical travel obstruction.
- Do not bypass monitored entrapment devices during troubleshooting.
Professional Advisory
For commercial gate operators, industrial slide operators, monitored safety devices, control boards, transformers, or any line-voltage repair, use a qualified gate or garage door technician. Do not bypass monitored safety devices, interlocks, fuses, or protection circuits to force an operator to run.
Product Questions
Is K41-0246-000 used on both IHSL24UL and INSL24UL?
Yes. It is commonly associated with the limit system encoder used on the IHSL24UL and INSL24UL industrial slide gate operator family.
Is this the complete limit system?
No. This item is the encoder service part. The complete limit system and related harnesses are separate parts.
What symptoms can point to an encoder problem?
Possible symptoms include failed limit learning, erratic travel counts, limit errors, or inconsistent gate stopping after mechanical issues are checked.
Can a worn chain or sprocket cause similar symptoms?
Yes. Chain slack, binding, worn sprockets, or a dragging gate can create travel-position problems that may be mistaken for an encoder fault.
Should this be installed by a technician?
For industrial slide gate operators, a qualified gate technician is recommended because travel limits, safety devices, and heavy gate movement must be checked after service.
