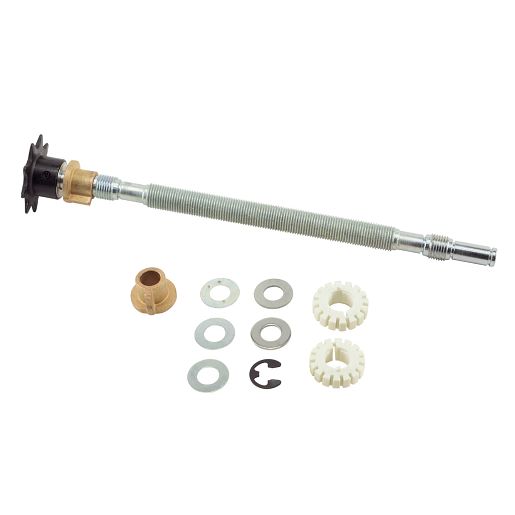

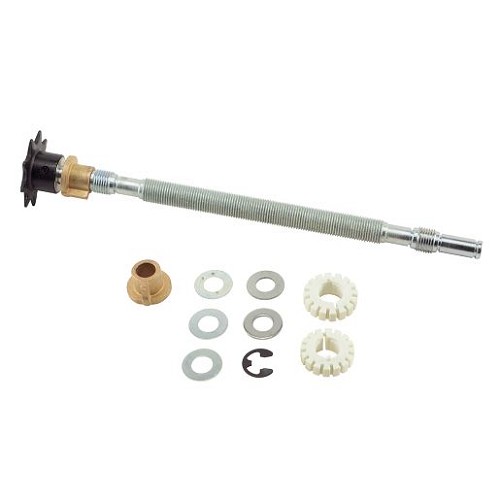

LiftMaster K72-12510 Limit Shaft Kit
The LiftMaster K72-12510 limit shaft kit is a service component for the limit adjustment system in select commercial operator electrical boxes. In many commercial operators, the limit shaft works with cams, switches, or related hardware so the operator knows when to stop at the fully open and fully closed travel positions. When the shaft wears or becomes damaged, the operator may overtravel, stop short, lose adjustment, or fail to hold the correct limit setting.
This kit is not a universal shaft for all LiftMaster operators. LiftMaster uses different limit shaft kits across T, GT, APT, SD, GSD, GH, gate, and industrial operator families. The K72-12510 should be selected only when the parts breakdown for the exact electrical box calls for this kit or when the original part number matches.
Compatible With
Compatibility is based on the commercial operator electrical box and limit assembly layout, not just the operator brand. Similar limit shaft kits may fit different operator families and should not be interchanged without a parts diagram.
- Select LiftMaster commercial control circuit electrical boxes
- Select LiftMaster commercial door operator limit assemblies
- Commercial operator applications where the parts diagram calls for K72-12510
- Electrical box limit shaft service applications in compatible LiftMaster operators
- Related commercial limit shaft families including K72-10047, K72-12565, K72-13912, and K72-14130-1 should be verified separately
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Limit Shaft Kit |
| Part Number | K72-12510 |
| Application | Commercial operator limit adjustment assembly |
| Compatible Operator Type | Select LiftMaster commercial operator electrical boxes |
| Related System | Open and close limit control |
| Notes | Verify electrical box style, limit assembly, and parts diagram. |
Also Known As / Related Part Numbers
These numbers and search variations are commonly associated with this part family. Match the actual label, operator model, and parts diagram before treating a related number as a direct replacement.
- K72-12510
- K7212510
- LiftMaster limit shaft kit
- Commercial operator limit shaft kit
- Limit shaft assembly service kit
- LiftMaster control circuit electrical box limit shaft
Technician Note
If the operator will not hold limits, inspect the limit switch kit, cams, sprockets, chain, wiring, and control input before assuming the shaft alone is the problem.
Before Ordering, Confirm
- The parts diagram lists K72-12510.
- The electrical box style matches the original operator.
- The limit switch assembly and related hardware are inspected.
- The open and close limits can be safely reset after service.
- The operator is not overtraveling because of a separate control or wiring fault.
Professional Advisory
Limit system repairs affect where a commercial door or gate stops. After service, the open and close limits, safety devices, clutch/force settings, and operator travel should be tested by a qualified technician.
Important Ordering Warnings
- Do not substitute a different limit shaft kit by appearance alone.
- Do not run the operator unattended until limits are reset and tested.
- Do not ignore damaged limit switches or cams.
- Do not bypass safety devices while adjusting limits.
Questions & Answers
What does the K72-12510 limit shaft kit do?
It supports the mechanical limit adjustment system in select LiftMaster commercial operator electrical boxes.
What problems can a worn limit shaft cause?
A worn or damaged shaft can cause poor limit adjustment, overtravel, stopping short, or limits that will not stay set.
Is this the same as a limit switch kit?
No. The limit shaft and limit switch kit are related parts, but they are not the same component.
Can this fit all LiftMaster commercial operators?
No. It must be matched to the exact commercial operator electrical box and parts diagram.
What should be tested after installation?
Open limit, close limit, safety reversal devices, stop circuit, and normal operator travel should all be checked after service.
