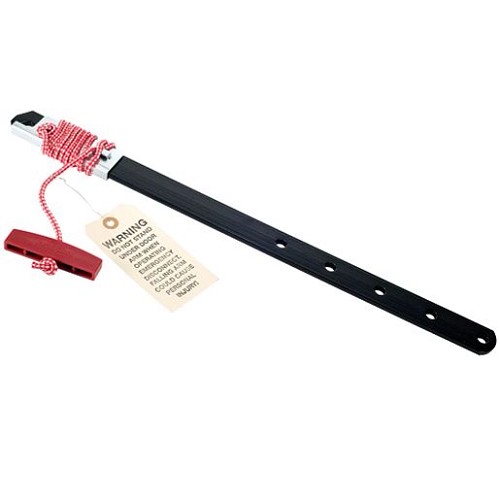

LiftMaster K75-10214 Straight Door Arm Kit
The LiftMaster K75-10214 Straight Door Arm Kit provides the straight linkage section used in compatible LiftMaster commercial trolley operator door arm assemblies. In a properly installed trolley operator system, the straight arm and curved arm work together to maintain the correct pull angle between the moving trolley and the top door bracket. When the straight arm is worn, bent, drilled incorrectly, or missing, the door may travel unevenly or the operator may place extra stress on the top panel and trolley rail. This kit is useful for restoring a proper arm connection when the curved arm and door bracket are still serviceable or when the parts breakdown calls for the straight arm kit specifically. Since similar commercial and residential arms may look alike, this part should be confirmed by part number and operator documentation.
What This Part Does
This replacement part restores a specific mechanical function in the commercial operator system. On compatible LiftMaster equipment, it helps keep the rail, trolley, door arm, or drivetrain aligned so the operator can move the door smoothly and reliably. When this part is worn or damaged, the operator may become noisy, bind, travel unevenly, or place extra stress on connected hardware.
Compatible With
This part is commonly associated with the following LiftMaster commercial operator models, series, or related rail/drivetrain assemblies. Compatibility can depend on operator generation, rail configuration, duty rating, and the exact parts diagram.
- Select LiftMaster commercial trolley-style door operators
- Select LiftMaster medium-duty commercial garage door openers
- LiftMaster and Chamberlain commercial operator linkage assemblies when parts diagram confirms
- Commercial sectional overhead doors using compatible straight/curved arm linkage
- Related use with K10-10203 curved door arm when the complete linkage requires both arms
- Related use with K75-12870 full straight and curved arm kit where a complete kit is needed
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster |
| Product Type | Straight Door Arm Kit |
| Part Number | K75-10214 |
| Application | Straight door arm linkage replacement for select commercial trolley operators |
| Compatible Operator Type | Select LiftMaster and Chamberlain commercial trolley-style operators |
| Related Numbers | 41K3681, 7510214, 453405, 75-10214, 305105003, 1C3681, 1C3428 |
| Notes | Confirm door arm length, hole pattern, and operator parts diagram before ordering. |
Also Known As / Related Part Numbers
This item may be searched or referenced under the following part numbers, kit numbers, catalog aliases, or related components. Related numbers are not always interchangeable unless the operator parts diagram confirms the replacement.
- K75-10214
- 75-10214
- 7510214
- 41K3681
- 453405
- 305105003
- 1C3681
- 1C3428
- LiftMaster straight door arm kit
- Commercial straight door arm
Technician Note
Do not order this part by appearance alone. Commercial trolley operator hardware and drivetrain parts can look similar while using different dimensions, bore sizes, rail layouts, chain sizes, or mounting geometry. Verify the original part number, operator model, rail or drivetrain layout, horsepower/duty rating where relevant, and the replacement parts diagram before installing. If the door is binding, out of balance, or has damaged track/hardware, correct the door issue before replacing operator parts.
Before Ordering, Confirm
- Original part number or related kit number matches the product being ordered
- LiftMaster operator model and duty rating match the parts diagram
- Rail style, door arm geometry, output shaft layout, sprocket size, or chain size matches where applicable
- Package contents match what is needed for the repair
- Door balance, track condition, and connected hardware have been inspected
- No similar-looking but different LiftMaster part is being substituted by mistake
Professional Advisory
Commercial door operator service involves moving door systems, chains, sprockets, door arms, and rail hardware. Disconnect power before service and keep hands clear of moving parts. After installation, inspect the full door travel, verify hardware alignment, check chain or trolley tension where applicable, and test the door system from a safe location. If the operator has electrical damage, unsafe door movement, broken springs, damaged track, or missing safety devices, have the system inspected by a qualified commercial door technician.
Important Ordering Warnings
- This part is not universal for all LiftMaster operators.
- Model series names such as T, MT, BMT, GT, TDC, or MAXUM still require parts diagram verification.
- Residential garage door opener parts should not be substituted for commercial trolley operator parts.
- For shaft and sprocket components, bore size, tooth count, chain pitch, and kit contents must match.
- For rail and door arm parts, rail layout, door height, and linkage geometry must match.
Questions & Answers
What is the K75-10214 used for?
It is used as the straight arm section in compatible commercial trolley operator door linkage assemblies.
Does this include the curved arm?
K75-10214 is commonly listed as the straight door arm kit. If the curved arm is also needed, check K10-10203 or the full K75-12870 arm kit.
Which operators use this straight arm?
It is used with select LiftMaster and Chamberlain commercial trolley-style door operators when the parts diagram specifies K75-10214 or a related number.
What related numbers should I compare?
Common related numbers include 75-10214, 7510214, 41K3681, 453405, 305105003, 1C3681, and 1C3428.
Why should the hole pattern be checked?
Door arm hole spacing and length affect linkage geometry. A mismatched arm can cause poor travel or stress on the door and rail.
