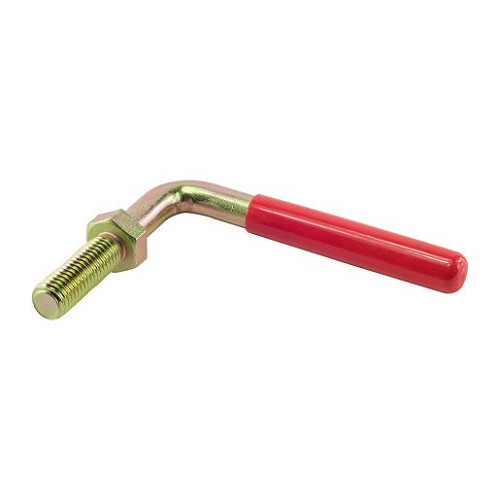

Liftmaster K75-50120, RELEASE ARM KIT
The LiftMaster K75-50120 is a Q060 release arm replacement kit used on select LiftMaster commercial swing gate operators. The release arm is part of the manual release or drive disengagement hardware that allows service access and controlled release of the operator mechanism.
A bent, broken, missing, or badly worn release arm can make the operator difficult to disengage or re-engage. This kit is most often associated with CSW200 and CSW24V style swing gate operators, but the exact release hardware should be confirmed from the operator parts diagram because older Elite and LiftMaster parts can share similar names.
Compatible With
- LiftMaster CSW200 commercial swing gate operators
- LiftMaster CSW24V swing gate operators
- LiftMaster CSW24VH and CSW24VDC references where listed
- Elite / LiftMaster Robo Swing references where Q060 is listed
- Various LiftMaster commercial swing gate operators when the parts diagram calls for K75-50120
Also Known As / Related Part Numbers
- K75-50120
- 75-50120
- LM-K75-50120
- Q060
- LiftMaster Q060
- Release arm kit
Features & Specifications
| Manufacturer | LiftMaster |
|---|
| Product Type | Release arm replacement kit |
|---|
| Part Number | K75-50120 |
|---|
| Application | Manual release / disengagement arm hardware |
|---|
| Compatible Operator Type | Commercial swing gate operator |
|---|
| Common Model References | CSW200, CSW24V, CSW24VH, CSW24VDC, Robo Swing |
|---|
| Also Known As | Q060 |
|---|
| Notes | Verify release mechanism layout before ordering |
|---|
Technician Note
If the release arm is damaged, inspect the clutch, release linkage, shaft, key, and gate load. Excessive force needed to release the operator may indicate a deeper mechanical problem.
Before Ordering
- Confirm K75-50120 or Q060 in the operator parts diagram
- Check the operator model and generation
- Inspect the clutch/release hardware for bent or seized parts
- Confirm the gate can move manually when released
- Do not force the release arm if the gate is under load
Professional Advisory
A manual release should work smoothly and safely. If the gate is heavy, out of balance, or binding, secure the gate before servicing the release mechanism.
Product Q&A
What is the K75-50120 release arm kit also known as?
It is commonly listed as Q060.
What operators is it commonly associated with?
It is commonly associated with CSW200, CSW24V, CSW24VH, CSW24VDC, and Robo Swing style applications.
Does this repair the whole clutch?
No. It is a release arm kit. Clutch, shaft, and gearbox parts are separate items.
Why would a release arm need replacement?
It may be bent, broken, missing, worn at the pivot, or damaged from forcing the release mechanism.
What should be checked during repair?
Check the clutch, release linkage, shaft, gate movement, and manual release operation before returning the gate to service.
