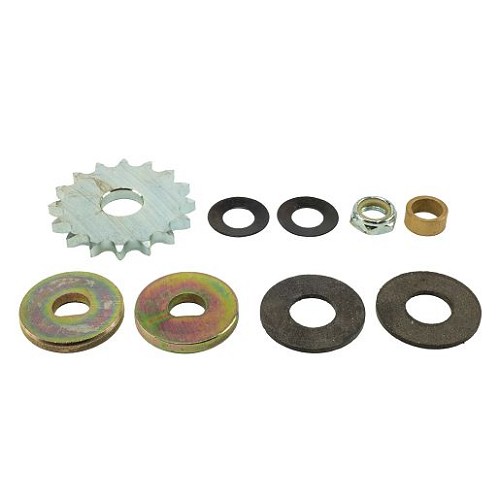

LiftMaster K75-50222 Clutch Set Post 10-1995 Q208
The LiftMaster K75-50222 clutch set is a replacement clutch service kit for post-October 1995 CSW200UL swing gate operator applications. The clutch assembly helps manage torque transfer through the drive system and provides slip protection when the gate encounters resistance or when the mechanical load is higher than normal. A worn clutch may cause slipping under load, weak movement, inconsistent travel, or excessive adjustment changes. This is an important mechanical service part because the wrong clutch kit can change how the operator transfers force. It is intended for the correct CSW200UL/Elite CSW200 post-10/1995 configuration and should be matched by production date, operator model, and parts diagram.
This part is best suited for service work where the operator has already been identified and the original part location is known. On older LiftMaster and Elite gate operators, small differences in production date, UL listing generation, enclosure style, arm geometry, or mounting hardware can change which replacement part is correct. For that reason, this product page uses careful compatibility language and includes the common related numbers customers may use when searching for the part.
Compatible With
- LiftMaster CSW200UL swing gate operators manufactured after October 1995
- select Elite CSW200 post-10/1995 applications where Q208 or K75-50222 is listed.
Compatibility note: This clutch set is for post-October 1995 CSW200UL-style applications. Older pre-10/1995 operators may use different clutch parts.
Features
- Clutch set for select post-10/1995 CSW200UL swing gate operators
- Commonly referenced as Elite Q208
- Helps restore proper torque transfer when the original clutch is worn or slipping
- Model and production-date specific service part
- Should be serviced with attention to safe gate force and proper adjustment
Features & Specifications
| Manufacturer | LiftMaster |
|---|
| Product Type | Clutch Set |
|---|
| Part Number | K75-50222 |
|---|
| Also Known As | K75-50222, 75-50222, Q208, Elite Q208, LiftMaster Q208 |
|---|
| Application | Torque clutch service kit for CSW200UL swing gate operators |
|---|
| Compatible Operator Type | LiftMaster CSW200UL swing gate operators manufactured after October 1995; select Elite CSW200 post-10/1995 applications where Q208 or K75-50222 is listed. |
|---|
| Reference Number | Q208 |
|---|
| Notes | Verify by model number, original part number, and parts diagram before ordering. |
|---|
Also Known As / Related Part Numbers
- K75-50222
- 75-50222
- Q208
- Elite Q208
- LiftMaster Q208
- post 10/95 clutch set
- post 10-1995 clutch set
- LM-K75-50222
Technician Note
When replacing this part, inspect the surrounding brackets, fasteners, bushings, pivots, wiring, covers, seals, and drive hardware in the same assembly. A failed support part can sometimes be caused by a misaligned gate, loose mounting hardware, worn clutch parts, or a cabinet that has been exposed to water or debris. Replacing only the visible damaged part without correcting the cause can lead to repeat failures.
Before Ordering
- Confirm the LiftMaster model number on the operator nameplate.
- Compare the original part number and Q-number with the parts diagram.
- Check mounting holes, linkage shape, cover style, hardware length, or electrical/mechanical configuration as applicable.
- Inspect related worn hardware before replacing only one part.
- For commercial gates, restore all covers and safety equipment before returning the operator to service.
Professional Advisory
Commercial gate operators can move heavy gates and may contain high-voltage wiring, stored mechanical force, or pinch points. Mechanical service should be performed with the gate secured and the operator power disconnected by a qualified technician when needed. Do not bypass monitored safety devices or operate a damaged gate system without proper safety protection.
Important Ordering Warnings
This clutch set is for post-October 1995 CSW200UL-style applications. Older pre-10/1995 operators may use different clutch parts.
Product Questions & Answers
What is the LiftMaster K75-50222 used for?
The LiftMaster K75-50222 is a replacement clutch set used for torque clutch service kit for csw200ul swing gate operators. It is ordered when the original part is worn, damaged, missing, or no longer functioning correctly.
Is K75-50222 the same as Q208?
Yes. Q208 is the common Elite or LiftMaster reference number associated with K75-50222. Related search numbers may appear in parts lists, but the installed operator diagram should still be checked.
Which operators is K75-50222 compatible with?
K75-50222 is commonly associated with LiftMaster CSW200UL swing gate operators manufactured after October 1995; select Elite CSW200 post-10/1995 applications where Q208 or K75-50222 is listed. Use the exact operator model and parts diagram to confirm final fitment.
What should be checked before ordering K75-50222?
Check the operator model, original part number, Q-number, mounting style, hardware condition, and any model suffix or production-date notes that apply to the installed unit.
Can this part be used as a universal replacement?
No. K75-50222 should not be treated as a universal LiftMaster gate operator part. Similar-looking covers, arms, latches, clutch parts, and hardware kits may use different dimensions or mounting points.
