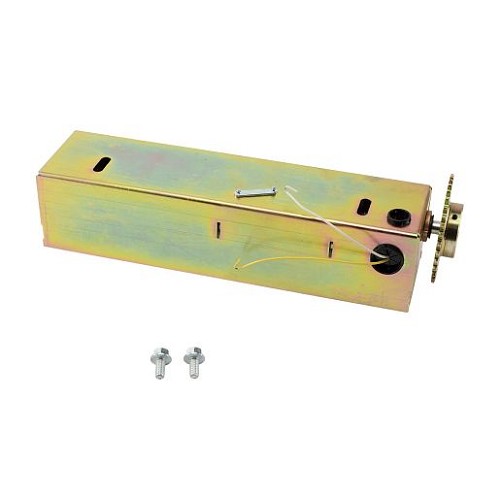

Liftmaster K76-34740, LIMIT PASSPOINT KIT
The LiftMaster K76-34740 is the limit passpoint or learn limit assembly kit used on select RSL12V slide gate operators. The limit/passpoint assembly helps the operator establish the gate travel range and recognize the correct open and close movement area. When this assembly is worn, broken, out of position, or electrically failed, the operator may not learn limits correctly or may stop at the wrong location.
Some parts references describe the kit as including the learn limit switch, learn limit nut, limit shaft assembly, sprocket, and wire harness. Kit contents should be checked at time of ordering, especially if the repair requires a complete assembly rather than one individual component.
Features & Specifications
| Feature / Specification | Details |
|---|
| Manufacturer | LiftMaster / Chamberlain Group |
| Product Type | Limit passpoint / learn limit kit |
| Part Number | K76-34740 |
| Application | Limit learning and passpoint assembly service |
| Compatible Operator Type | DC slide gate operator |
| Common Kit Contents | Learn limit switch, nut, shaft assembly, sprocket, and harness where supplied as a full kit |
| Notes | Verify model and kit contents before ordering |
Compatible With
Common Compatible Models
- LiftMaster RSL12V slide gate operators
- LiftMaster RSL12VH slide gate operators
- RSL12V family units that list K76-34740 as the limit passpoint or learn limit kit
Important Compatibility Notes
- Do not assume RSL12U/RSL12UL compatibility without parts diagram confirmation
- Kit contents can vary by supplier listing
- Related limit switch references should not be treated as the full kit unless confirmed
Also Known As / Related Part Numbers
- K76-34740
- LM-K76-34740
- LIF-K76-34740
- K2 K76-34740
- Limit Passpoint Kit
- Learn Limit Assembly Kit
- Learn Limit Kit
- Q029 related learn limit switch reference - verify exact item
Technician Note
If the operator will not learn travel, do not assume the limit kit is the only issue. Check gate movement, drive hardware, wiring, batteries, control board, and any stored faults.
Before Ordering
- Confirm RSL12V or RSL12VH model compatibility
- Check whether a full kit or only one limit component is needed
- Compare the existing shaft, sprocket, switch, and harness
- Follow the operator limit-learning procedure after repair
Professional Advisory
Gate travel and limit setup affect safe operation. A gate that overruns, stops unpredictably, or cannot learn limits should be secured and serviced by a qualified gate technician.
Important Ordering Warnings
- Do not broaden this kit to RSL12U or RSL12UL without parts diagram confirmation
- Do not bypass limit or passpoint hardware to keep the gate running
Product Questions & Answers
What does the K76-34740 kit repair?
It services the limit passpoint or learn limit assembly on select RSL12V and RSL12VH slide gate operators.
Which models commonly use K76-34740?
It is commonly listed for LiftMaster RSL12V and RSL12VH slide gate operators.
What parts may be included in the kit?
Some references list the learn limit switch, learn limit nut, limit shaft assembly, sprocket, and wire harness, but current kit contents should be checked.
Will this fix every travel-learning problem?
Not always. Travel issues may also come from gate drag, wiring, batteries, control board faults, or other drive components.
Is K76-34740 the same as a single limit switch?
No. It is generally referenced as a limit passpoint or learn limit kit, while individual switch references may be separate parts.
