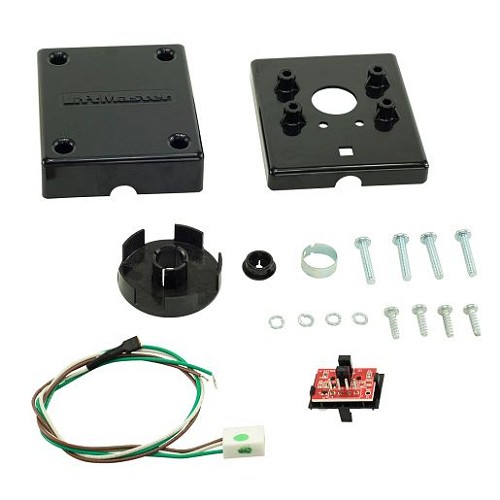

LiftMaster K76-35664 RSL12V RPM Sensor Module Service Details
The LiftMaster K76-35664 RPM sensor module is a genuine replacement sensor module used on select LiftMaster perimeter access slide gate operator systems. It is commonly referenced for RSL12V repairs where the operator needs motor movement feedback restored.
A failed RPM sensor can cause symptoms that look like board, motor, or wiring problems, so diagnosis should be performed before replacement.
What This Part Does
The RPM sensor module provides movement feedback to the control board so the operator can monitor motor operation, detect movement, and manage travel behavior.
- Replaces a failed or damaged RPM feedback module
- Helps restore movement sensing on compatible slide gate operators
- Used for select RSL12V service repairs
- Supports diagnosis of movement faults after wiring and mechanical checks
Compatible With
Commonly referenced for select LiftMaster RSL12V slide gate operator applications and related perimeter access models where the parts diagram calls for K76-35664.
- Select LiftMaster RSL12V slide gate operators
- Perimeter access slide gate service repairs requiring K76-35664
- Applications where the original RPM module and connector match
Important Compatibility Warning
This is not a universal RPM sensor for every LiftMaster gate operator. Similar-looking sensors may use different connectors, mounting, wiring, or control-board logic. Confirm by parts diagram and original module before ordering.
Similar Parts That Are Not Automatically Interchangeable
- RPM sensors from unrelated LiftMaster slide operators unless confirmed
- Limit sensors or position switches
- Motor kits with integrated feedback parts
- Control boards that report RPM errors due to board failure
- Battery, wiring, or mechanical repairs that imitate RPM faults
Not Intended For
- Bypassing safety inputs to make the gate move
- Repairing a dragging gate, damaged chain, or mechanical obstruction
- Use on operators not confirmed by the parts diagram
- High-voltage troubleshooting by unqualified personnel
Features and Specifications
| Specification |
Details |
| Brand |
LiftMaster |
| Part Number |
K76-35664 |
| Store ID |
LM-K76-35664 |
| Product Type |
RPM sensor module |
| Common Application |
RSL12V slide gate operator service |
| Function |
Motor movement feedback |
| Compatibility Method |
Match by operator model, connector, and parts diagram |
| Package Contents |
RPM sensor module unless supplier packaging changes |
Also Known As / Related Part Numbers
- K76-35664
- LM-K76-35664
- RSL12V RPM sensor
- LiftMaster RPM module
- Slide gate RPM feedback module
Related Parts and Service Checks
- Check the gate for binding, drag, or obstruction
- Inspect motor wiring and sensor connector
- Confirm battery voltage and operator power on DC systems
- Review fault codes before replacing parts
- Confirm the original sensor matches K76-35664
- Test safety devices after repair
Technician Note
RPM sensor faults often show up after power, battery, harness, or mechanical problems. Fixing the feedback sensor will not solve a gate that is binding or a motor circuit that is not being powered correctly.
Before Ordering Checklist
- Confirm K76-35664 is listed for the operator
- Confirm the operator model, especially RSL12V references
- Compare connector and mounting style
- Check for mechanical drag before replacing electronics
- Confirm the technician can test safety circuits after repair
Installation and Service Notes
Disconnect power and batteries where applicable before servicing a DC gate operator. Reinstall the sensor and harness in the original routing so it cannot be damaged by moving parts.
Do not bypass photo eyes, gate edges, stop circuits, or entrapment protection while testing movement feedback.
Professional Advisory
If the operator continues to report movement faults after replacement, inspect the motor, board output, battery health, chain path, encoder wiring, and gate mechanics before replacing more parts.
Product Questions & Answers
What does the K76-35664 RPM sensor module do?
It gives the operator control board motor movement feedback so a compatible slide gate operator can monitor movement and travel behavior.
Is this used on the RSL12V?
It is commonly referenced for select RSL12V slide gate operator repairs, but the operator parts diagram should be checked before ordering.
Will this fix every RPM or movement fault?
No. Similar faults can come from wiring, batteries, motor problems, a dragging gate, control board failure, or safety input problems.
Is K76-35664 universal for all LiftMaster gate operators?
No. It is not universal. Confirm the exact operator model, connector, and original sensor before ordering.
What should I inspect before replacing the module?
Check gate movement, chain or belt condition, power, battery voltage, connector condition, and fault codes before replacing the sensor.
Can I bypass the sensor to test the operator?
Do not bypass required control or safety functions. Use proper diagnostic procedures or have a qualified gate technician inspect the operator.
