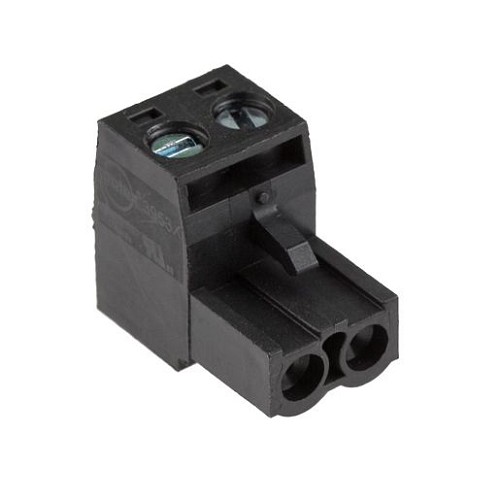

Liftmaster K81-860502, TERMINAL BLOCK, 2 POSITION
The LiftMaster K81-860502 is a genuine 2-position terminal block service part. It is used inside compatible LiftMaster commercial gate operator control assemblies as a secure two-pole connection point for field wiring, internal wiring, or control connections depending on the model.
A damaged terminal block can create intermittent faults, loose wire connections, communication problems, power loss to a circuit, or unreliable accessory operation. Replacement is usually considered when the original terminal block is physically broken, stripped, discolored, corroded, or no longer clamps the wire properly. Correct location and wiring are critical because the same style of terminal block can appear in different parts of an operator with different functions.
Compatible With
Use this terminal block only where the operator parts diagram calls for K81-860502 or the matching 2-position terminal block. Documented applications include:
- Various LiftMaster commercial gate operators
- Select Elite commercial gate operator assemblies
- LiftMaster perimeter access control operator wiring locations that use a 2-position block
- Control boxes and electrical compartments where the parts diagram lists K81-860502
- Applications where the original terminal block is marked or listed as 81-860502
Features & Specifications
| Manufacturer | LiftMaster |
|---|
| Product Type | Terminal Block |
|---|
| Part Number | K81-860502 |
|---|
| Application | Two-position wiring connection point |
|---|
| Compatible Operator Type | Select LiftMaster commercial gate operators |
|---|
| Positions | 2 |
|---|
| Notes | Wire placement must follow the operator wiring diagram |
|---|
Also Known As / Related Part Numbers
- K81-860502
- 81-860502
- Two-position terminal block
- 2-position terminal block
- 2 pole terminal block
Technician Note
Before removing the old terminal block, mark each conductor and take a clear photo of the wiring. Terminal blocks are only connection points; they do not correct a shorted accessory, damaged wire, failed board, or improper voltage feeding the circuit.
Before Ordering
- Verify the operator parts diagram calls for K81-860502
- Confirm the number of positions and physical mounting style
- Label all wires before removing the original block
- Check for wire corrosion, heat damage, loose conductors, or board damage
- Confirm the circuit voltage and wire function before reconnecting power
Professional Advisory
For high-voltage compartments, damaged wiring, burned terminals, or unknown wire routing, have the repair handled by a qualified gate technician. Do not move wires by guessing based on terminal position alone.
Important Ordering Warning
A terminal block with the same number of positions may not be wired the same way in every operator. Match the part number and wiring diagram.
Product Questions
Is K81-860502 a control board?
No. It is a 2-position terminal block used as a wiring connection point in compatible LiftMaster commercial gate operator assemblies.
Can this fix intermittent accessory problems?
It can help if the original terminal block is loose, cracked, corroded, or not clamping wires correctly. Wiring, accessory, and board faults should also be checked.
Does wire order matter on this part?
Yes. The wires must be reconnected exactly as shown in the operator wiring diagram. Label wires before removal.
Is this terminal block used on every LiftMaster gate operator?
No. It is for select commercial gate operators where the parts diagram lists K81-860502 or 81-860502.
What should I check before ordering?
Confirm the original part number, terminal count, mounting style, and the operator model or parts diagram.
