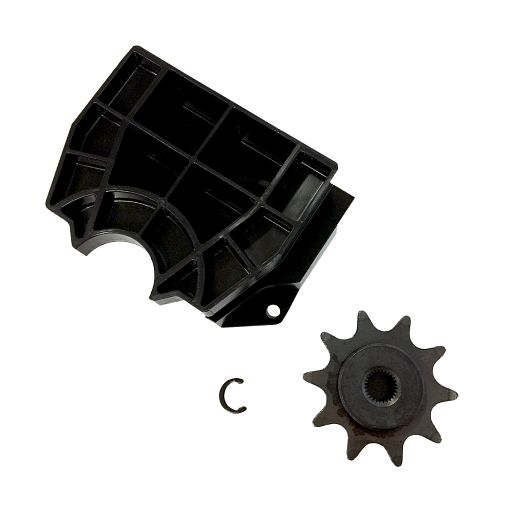

Liftmaster 041-0035, CHAIN SPREADER AND SPROCKET
The LiftMaster 041-0035 chain spreader and sprocket kit is a mechanical service kit used at the drive end of select DC chain drive residential garage door openers. The chain spreader helps keep the chain positioned correctly as it moves around the sprocket, while the sprocket transfers motor output to the chain system.
A worn or damaged spreader and sprocket can contribute to chain chatter, uneven chain tracking, binding, grinding, or repeated chain derailment. This kit is intended for specific DC chain drive designs and should be matched to the operator parts diagram before replacement, especially because similar chain drive openers may use different sprocket assemblies.
Compatible With
- LiftMaster 8580WLB Elite Series DC Battery Backup Chain Drive Wi-Fi garage door opener
- LiftMaster 87802 Heavy Duty Chain Drive Smart Opener with LED Corner to Corner Lighting and Battery Backup
- Various LiftMaster DC chain drive garage door openers where the parts diagram lists 041-0035
- Various Chamberlain DC chain drive garage door openers where the parts diagram lists 041-0035
- Select Chamberlain / LiftMaster / Craftsman residential chain drive T-rail trolley operators only when confirmed by parts diagram
Features and Specifications
| Manufacturer | LiftMaster / Chamberlain |
|---|
| Product Type | Chain spreader and sprocket replacement kit |
|---|
| Part Number | 041-0035 |
|---|
| Application | Residential DC chain drive garage door opener drive-end service |
|---|
| Compatible Operator Type | Select DC chain drive garage door openers |
|---|
| Included Components | Chain spreader, sprocket, and C-clip where supplied by the manufacturer |
|---|
| Rail / Drive Type | Chain drive |
|---|
| Notes | Not for belt drive openers or unrelated AC chain drive gear kits |
|---|
Also Known As / Related Part Numbers
- 041-0035
- 41-0035
- 0410035
- 410035
- LM-041-0035
- LiftMaster chain spreader and sprocket
- Chamberlain 041-0035 chain spreader kit
Technician Note
Before replacing this kit, inspect the chain, trolley, rail, and door balance. A new sprocket can wear quickly if the door is heavy, the chain is over-tightened, or the rail is misaligned.
Before Ordering Checklist
- Confirm the opener is a compatible DC chain drive model
- Match 041-0035 in the parts diagram
- Inspect chain condition and trolley wear before reassembly
- Do not use this kit on belt drive models
- Disconnect power before servicing the opener head
Professional Advisory
Disconnect power to the garage door opener before removing covers or internal parts. If the operator has damaged wiring, heat marks, a loose internal harness, or any unsafe movement condition, have the unit inspected by a qualified garage door technician.
Product Questions and Answers
What does the chain spreader do?
The chain spreader helps guide the chain at the opener head so the chain tracks correctly around the drive sprocket.
Which models are strongly associated with 041-0035?
Strong public references include LiftMaster 8580WLB and 87802 chain drive opener applications.
Is this kit for belt drive openers?
No. 041-0035 is for select chain drive opener applications, not belt drive units.
What symptoms may point to a worn sprocket or spreader?
Possible symptoms include chain chatter, grinding at the opener head, poor chain tracking, or visible sprocket wear.
Should the chain be adjusted after replacement?
Yes. Chain tension and travel operation should be checked after service, following the opener manual.
