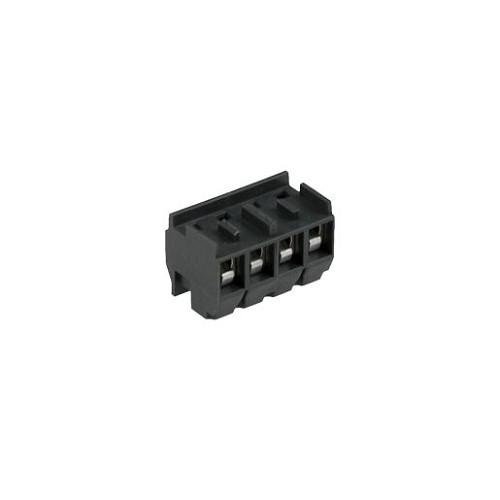

Liftmaster MA002J, CONNECTOR, 4 PIN, J1, J2, L3
The LiftMaster MA002J is a 4-pin removable connector used on select LiftMaster gate operator control boards. It is commonly identified with J1, J2, and L3 style connection points, but the exact location depends on the operator and board layout. A damaged connector can create intermittent low-voltage control issues, accessory input problems, communication faults, or loose wiring at the board. This part is useful when the original plug has stripped terminal screws, cracked housing, corrosion, or has been lost during a board replacement. Since many LiftMaster boards use similar-looking removable plugs, the safest way to order is to compare the pin count, terminal spacing, keying, and parts diagram. MA002J is a 4-pin connector and should not be confused with MA002, which is a 12-pin connector.
Features and Specifications
| Manufacturer | LiftMaster |
|---|
| Product Type | Removable connector / terminal plug |
|---|
| Part Number | MA002J |
|---|
| Pin Count | 4 pin |
|---|
| Common Board Labels | J1, J2, L3 references |
|---|
| Application | Low-voltage board wiring connections |
|---|
| Notes | Verify pin count, board location, and terminal spacing |
|---|
Compatible With
- Select LiftMaster residential gate operators using the MA002J 4-pin connector
- Select LiftMaster commercial gate operators using the MA002J 4-pin connector
- Control board locations labeled J1, J2, or L3 where the parts diagram calls for MA002J
- LiftMaster gate operator accessory/control wiring connections requiring the matching 4-pin plug
Also Known As / Related Part Numbers
- MA002J
- MA-002J
- MA 002J
- 4 pin connector J1 J2 L3
- LiftMaster 4-pin connector
- J1 connector
- J2 connector
- L3 connector
Technician Note
Connector problems can mimic board failures. Before replacing a control board, inspect plugs for loose terminals, broken housings, and wire strands that are not clamped properly.
Before Ordering Checklist
- Confirm the original connector is 4 pin.
- Match the board label and parts diagram.
- Do not confuse MA002J with MA002 12-pin connector.
- Label wires before removal.
- Check for damaged board pins before installing the new connector.
Professional Advisory
If a connector shows heat damage or melted plastic, have the circuit checked before reinstalling wires. Replacing the plug without correcting the cause may damage the new connector.
Product Questions and Answers
What is MA002J used for?
It is a 4-pin removable connector for select LiftMaster gate operator control board connections.
Is MA002J the same as MA002?
No. MA002J is a 4-pin connector, while MA002 is a 12-pin connector.
What do J1, J2, and L3 mean?
Those are board connection labels found on some LiftMaster wiring diagrams. The exact use depends on the operator.
Can a damaged connector cause intermittent problems?
Yes. Loose or corroded terminals can cause intermittent controls, accessory faults, or unreliable operation.
Should the wires be moved one at a time?
Yes. Labeling or transferring wires carefully helps avoid miswiring the board.
