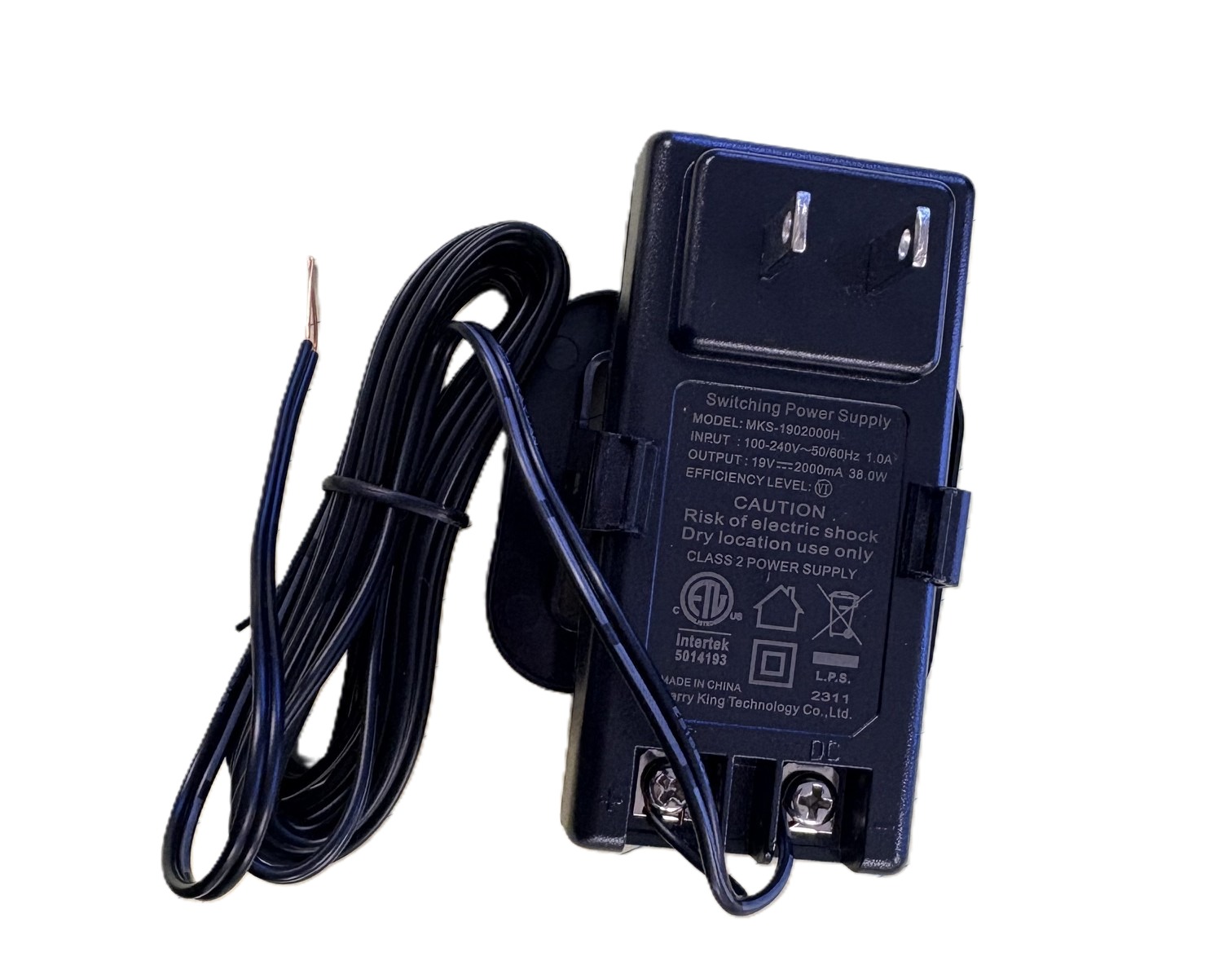

Linear HAE00085 LINEAR600 Power Supply Service Details
The Linear HAE00085 is the OEM replacement power supply identified for the Nice/Linear 661 smart residential garage door opener. Current Nice/Linear replacement-parts documentation lists HAE00085 as "F/G POWER SUPPLY, LINEAR600 BATT54."
This component supplies normal operating power to the compatible garage door opener. The Linear 661 also incorporates battery backup, allowing the operator to continue functioning for a limited period during a loss of normal AC power.
Compatible With
- Nice/Linear 661 smart garage door opener
- LINEAR600 service-parts platform
- Original operator installations specifically calling for Linear part HAE00085
Compatibility warning: Do not select a replacement power supply by connector appearance alone. Linear has produced multiple DC garage door opener generations with different transformers, power supplies, battery systems, and control electronics. Confirm the exact opener model, original power-supply label, connector configuration, and replacement-parts diagram before ordering.
What the HAE00085 Power Supply Does
The HAE00085 provides external operating power to the Linear 661 garage door opener. During normal operation, the power supply operates the opener and supports the operator's battery-charging system. When normal power is lost, the Linear 661 can operate from its installed backup battery for a limited period.
A failed or disconnected power supply can cause symptoms such as the opener operating from battery only, low-battery alerts, failure to recharge the battery, or loss of operation after the battery becomes discharged. Similar symptoms can also result from a failed battery, control board, wiring connection, outlet, or charging circuit.
Features and Specifications
| Manufacturer | Nice / Linear |
| Part Number | HAE00085 |
| Product Type | Garage door opener power supply |
| Manufacturer Description | F/G POWER SUPPLY, LINEAR600 BATT54 |
| Confirmed Operator | Nice/Linear 661 |
| Service Platform | LINEAR600 |
| Operator Motor Type | DC |
| Battery Backup System | Compatible operator includes integrated battery backup |
| Battery Included With HAE00085 | Not confirmed - verify package contents |
| OEM Service Part | Yes |
| Confirmed Supersession | None confirmed |
| Electrical Output Rating | Verify from HAE00085 power-supply label before replacement |
HAE00085 and the BATT54 Reference
The manufacturer service description for HAE00085 includes the reference "BATT54." This should not automatically be interpreted as meaning that a BATT54 battery is included in the HAE00085 package.
BATT54 is separately documented within the Linear garage door operator parts family as a 12V replacement battery. Unless the current HAE00085 package specifically states otherwise, treat the power supply and replacement battery as separate service components.
Related Linear 661 Replacement Parts
- HAE00082 - LINEAR600 control board
- HAE00083 - LINEAR600 motor with encoder assembly
- HAE00084 - LINEAR600 light lens assembly
- HAE00085 - LINEAR600 power supply
- HAE00080 - Wi-Fi wall station
- HAE00087 - safety beam sender and receiver kit
- BATT54 - related 12V replacement battery reference
These are separate service components. A power-supply problem should not automatically be diagnosed as a battery, control-board, motor, or wall-station failure.
Similar Parts That Are Not Automatically Interchangeable
Other Linear LDCO garage door operators use transformers or power components with different part numbers. Do not substitute a transformer or power supply from an LDCO841, LDCO850, LDCO852, LDCO863B, LDCO800, or LDCO801 simply because the opener is also DC powered.
Power-supply voltage, connector configuration, charging circuitry, control-board requirements, and operator generation must match the original equipment.
Also Known As / Related References
- HAE00085
- HAE-00085
- LINEAR600 Power Supply
- Linear 661 Power Supply
- Nice Linear 661 Power Supply
- F/G POWER SUPPLY, LINEAR600 BATT54
No confirmed superseding service part number for HAE00085 was found in the current manufacturer replacement-parts documentation reviewed.
Symptoms That May Point to a Power Supply Problem
- Garage door opener runs only from battery backup
- Operator reports low or discharged battery after normal charging time
- Battery does not appear to recharge
- Operator has no normal power even though the battery can operate the unit
- Visible damage to the power supply or its cable
- Loose, damaged, or intermittent power-supply connector
These symptoms do not prove that HAE00085 has failed. The AC outlet, battery, control board, charging circuit, internal wiring, or another operator component may create similar symptoms.
Technician Note
If a Linear 661 repeatedly reports a low battery, do not replace the battery automatically. Confirm that the garage outlet has power and that the HAE00085 power supply is correctly connected and providing the specified output. A good battery cannot remain charged if normal power or charging input is missing.
Likewise, replacing HAE00085 will not correct a battery that has reached the end of its service life or a failed charging circuit on the control electronics. Diagnose the complete power system before replacing parts.
Before Ordering Checklist
- Confirm the garage door opener is a Nice/Linear 661.
- Verify HAE00085 in the replacement-parts diagram.
- Read the part number and electrical ratings on the original power supply.
- Compare the connector style and cable arrangement.
- Verify the AC outlet is working before condemning the power supply.
- Check battery condition and charging symptoms.
- Do not assume BATT54 is included with HAE00085.
- Do not substitute an LDCO transformer or power supply without confirmed compatibility.
- Confirm current package contents before ordering if a battery, bracket, or other accessory is required.
Installation and Service Notes
Disconnect the garage door opener from external power and battery backup before servicing internal wiring or electronic components. Use only a replacement power supply with the correct electrical ratings and connector configuration for the operator.
Do not modify, splice, or substitute an unverified power supply to make the opener operate. Incorrect voltage or polarity can damage the control board, battery-charging circuitry, motor electronics, or other components.
After service, verify normal AC operation, battery charging, battery-backup operation, garage door travel, photo-eye response, and safety reversal functions. Do not bypass safety beams, reversal protection, wall-control safety functions, or other required safety systems.
Product Questions & Answers
What garage door opener uses Linear HAE00085?
Current Nice/Linear replacement-parts documentation identifies HAE00085 as the power supply for the Nice/Linear 661 garage door opener and LINEAR600 service-parts platform.
Does HAE00085 include a BATT54 battery?
The manufacturer description includes the BATT54 reference, but current replacement-parts documentation does not clearly state that a battery is included with HAE00085. Treat the battery as separate unless the specific package confirms otherwise.
Is HAE00085 the same as the Linear 661 control board?
No. HAE00085 is the power supply. The LINEAR600 control board is a separate service part identified as HAE00082.
Will HAE00085 fix a Linear 661 that only runs on battery backup?
It may if the original power supply has failed, but first verify the AC outlet, power-supply connection, power-supply output, battery condition, control board, and charging circuit before replacing parts.
Can I use a Linear LDCO transformer instead of HAE00085?
Do not substitute another Linear transformer or power supply unless manufacturer documentation specifically confirms compatibility. Electrical ratings, connectors, and charging-system requirements can differ between operator generations.
What voltage is the HAE00085 power supply?
The exact HAE00085 output voltage and current rating were not clearly confirmed in the public manufacturer replacement-parts documentation reviewed. Verify the ratings printed on the original HAE00085 power supply and replacement unit before installation.
Is BATT54 the replacement battery associated with this power system?
BATT54 is a related 12V replacement battery reference in the Linear garage door operator parts family. Verify the exact battery specified for the operator generation before ordering it with HAE00085.
What should I verify before ordering Linear HAE00085?
Confirm the opener is a Linear 661, verify HAE00085 in the replacement-parts diagram, compare the original power-supply label, connector and cable, test the AC outlet, and determine whether the problem is the power supply, battery, charging circuit, or control board.
