Linear ISO125-H 830-00400 Proximity Card Details

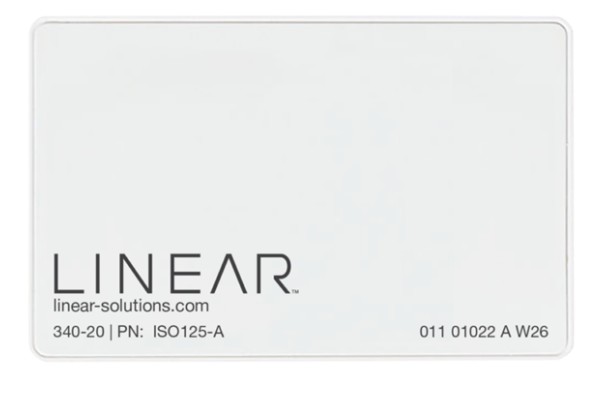

The Linear / Nice ISO125-H 830-00400 package contains 25 printable 125 kHz proximity access cards for select HID-compatible readers. Each glossy white PVC card uses the standard 26-bit credential format and complies with the ISO 7810 card standard.
When the card is presented near a compatible reader, the reader obtains its credential data and sends the information to the access controller. The controller then checks the facility code, credential number, cardholder record, authorized doors, schedules, and access level before granting or denying entry.
What the ISO125-H Card Does
The ISO125-H provides a contactless physical credential for employees, residents, tenants, contractors, vendors, students, and other authorized users. Its printable ISO card construction allows it to serve as both an access credential and an identification badge.
The card is passive and does not require a user-replaceable battery. It is not a gate remote, garage-door transmitter, Bluetooth credential, reader, or standalone access controller.
Compatible With
- Select 125 kHz readers compatible with HID proximity credential technology
- Linear BT125-W Bluetooth and 125 kHz proximity readers, subject to format verification
- Linear NBT125-W 125 kHz proximity readers, subject to format verification
- Access controllers accepting the compatible reader's standard 26-bit credential data
- Existing systems using the same facility code and credential-number format
- Badge-printing applications using compatible ISO 7810 card printers
Exact compatibility depends on both the reader and the access controller. A reader may detect the card while the controller still rejects it because of an unsupported format, incorrect facility code, duplicate credential number, disabled cardholder record, or access-level restriction.
Standard 26-Bit Credential Format
Part number 830-00400 is the standard 26-bit ISO125-H package. Nice/Linear also offers a custom-format version under part number 830-0040C.
The exact facility code and credential-number range are not stated on the current public product page. Verify those details from the physical package, supplier record, or purchase order before adding the cards to an existing access-control database.
Do not order by frequency and bit format alone. Two 26-bit credential batches can use different facility codes or overlapping card numbers.
HID-Compatible 125 kHz Technology
ISO125-H uses passive 125 kHz RFID technology for select HID-compatible proximity readers. The term HID-compatible does not guarantee operation with every HID-branded reader, every multi-technology reader, or every controller connected to an HID reader.
The reader must support the credential technology, and the controller must be configured for the supplied format. Confirm the reader model, controller format, facility code, and credential-number range before ordering.
Printable ISO 7810 Card Construction
The ISO125-H is made from glossy white PVC and complies with ISO 7810. Nice/Linear identifies the card as printable with ISO 7810-compliant card printers.
Printer compatibility also depends on the printer transport system, card thickness requirements, ribbon type, surface condition, and badge-printing software. Confirm the printer manufacturer's requirements before printing the complete credential batch.
Published Read Range
Nice/Linear publishes a credential read range of up to approximately 7 inches. Actual range depends on the reader model, reader power, mounting surface, nearby metal, card orientation, electrical interference, and site conditions.
Current Linear BT125-W and NBT125-W reader specifications list maximum reader ranges of up to approximately 3 inches. The completed system will be limited by the reader and installation, so the 7-inch credential specification should not be treated as guaranteed with every reader.
Credential Enrollment
Each ISO125-H card must be enrolled into the access-control database before it can grant entry. Record the credential information and assign the card to the correct person, account, access level, doors, schedules, and expiration settings.
- Confirm the facility code and credential number.
- Check the existing database for duplicate credentials.
- Add or enroll the card into the access controller.
- Assign the correct cardholder and access level.
- Set authorized doors, schedules, and expiration dates.
- Print the card only after confirming the user assignment.
- Test the card at every assigned reader.
- Document the assignment for future replacement or deactivation.
Comparison With Related Linear Credentials
- ISO125-H 830-00400: Standard 26-bit, printable 125 kHz HID-compatible ISO cards sold in packs of 25.
- ISO125-H Custom 830-0040C: Custom-format HID-compatible ISO cards for systems requiring another credential configuration.
- ISO125-A 830-00410: Printable 125 kHz AWID-compatible cards using a different credential technology.
- CLM125-H 830-00420: Clamshell-style 125 kHz HID-compatible proximity cards.
- KFB125-H 830-00440: Key-fob-style 125 kHz HID-compatible proximity credentials.
- ISO135-L 830-00460: Printable 13.56 MHz DESFire EV2 smart cards, not 125 kHz proximity cards.
- BT-MOB-L 830-00490: Digital Bluetooth mobile credentials rather than physical cards.
Similar Credentials That Are Not Automatically Interchangeable
- ISO125-A AWID-compatible cards
- 13.56 MHz DESFire smart cards
- Generic 125 kHz proximity cards
- Credentials using another facility code
- Custom-format HID-compatible cards
- Bluetooth mobile credentials
- NFC smartphone credentials
- Magnetic-stripe access cards
- Cards from another manufacturer with a similar appearance
Features and Specifications
| Specification | Details |
| Brand | Linear / Nice |
| Model | ISO125-H |
| Part Number | 830-00400 |
| Product Type | Printable proximity access-control card |
| Credential Technology | HID-compatible 125 kHz RFID |
| Operating Frequency | 125 kHz |
| Credential Format | Standard 26-bit |
| Facility Code | Verify from the current package or supplier record |
| Credential Numbers | Verify before enrollment |
| Package Quantity | 25 cards |
| Published Credential Read Range | Up to approximately 7 inches; actual range is reader-dependent |
| Card Material | Glossy white PVC |
| Card Standard | ISO 7810 |
| Printable | Yes, using a compatible ISO 7810-compliant card printer |
| Battery Required | No |
| Reader Compatibility | Select HID-compatible 125 kHz proximity readers |
| Associated Linear Readers | BT125-W and NBT125-W, subject to complete system verification |
| Communication Format | Wiegand-compliant credential format |
| Part Number Marking | Part number printed on each card |
| Custom-Format Alternative | ISO125-H custom, part number 830-0040C |
| Reader Included | No |
| Access Controller Included | No |
| Enrollment Required | Yes |
Package Contents
- Twenty-five Linear / Nice ISO125-H 830-00400 proximity access cards
A proximity reader, access controller, card printer, printer ribbon, wiring, power supply, credential enrollment, controlled hardware, and installation services are not included.
Before Ordering Checklist
- Confirm that the reader operates at 125 kHz.
- Verify that the reader supports HID-compatible proximity credentials.
- Confirm that standard 26-bit format is required.
- Verify the facility code supplied with the package.
- Review the credential-number range for duplicates.
- Confirm that the controller has capacity for 25 additional credentials.
- Use custom part number 830-0040C when another format is required.
- Confirm that the card printer supports ISO 7810 PVC cards.
- Document each card assignment before distribution.
- Confirm the site's procedure for lost, stolen, returned, or reassigned cards.
Professional Access-Control Advisory
Credential enrollment, badge printing, and access-level programming should be completed by an authorized administrator or qualified access-control technician. Test each card at every assigned reader and confirm that schedules, access levels, expiration dates, door permissions, and audit records operate correctly.
Immediately disable credentials that are lost, stolen, returned, or assigned to users who no longer require access. Access credentials must not bypass free-egress hardware, emergency release, fire access, mechanical override, or other required life-safety provisions.
Product Questions & Answers
What is included with Linear ISO125-H 830-00400?
The package contains 25 standard 26-bit, 125 kHz HID-compatible printable proximity cards. Readers, controllers, card printing, wiring, and enrollment are not included.
Which readers are compatible with ISO125-H cards?
ISO125-H is designed for select HID-compatible 125 kHz proximity readers. Linear BT125-W and NBT125-W readers support Linear 125 kHz credentials, but the complete reader and controller configuration must be verified.
Will ISO125-H work with every HID reader?
No. The reader must support the applicable 125 kHz HID-compatible credential technology, and the controller must accept the supplied 26-bit format, facility code, and credential-number range.
What credential format does part number 830-00400 use?
Part number 830-00400 is the standard 26-bit version. Verify the facility code and credential-number range from the package or supplier record before enrollment.
Can ISO125-H cards be printed as employee badges?
Yes. The glossy white PVC cards comply with ISO 7810 and can be printed using a compatible ISO 7810-compliant card printer.
What is the published read range of ISO125-H?
Nice/Linear lists the credential at up to approximately 7 inches, but actual range is limited by the reader and installation. Current BT125-W and NBT125-W readers publish ranges of up to approximately 3 inches.
Do ISO125-H cards arrive enrolled in the access controller?
No. Each card must be added to the controller and assigned the correct cardholder, doors, schedules, access level, and expiration settings.
What is the difference between 830-00400 and 830-0040C?
Part number 830-00400 is the standard 26-bit ISO125-H package. Part number 830-0040C is the custom-format version for systems requiring another credential configuration.
