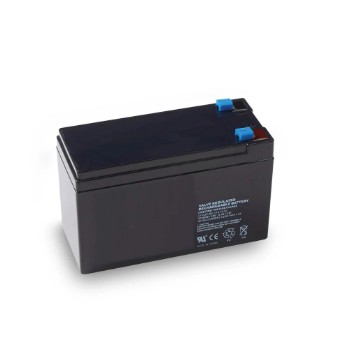

Mighty Mule FM150 12V 7Ah Gate Opener Battery Technical Details
The Mighty Mule FM150 is a maintenance-free 12-volt, 7 amp-hour rechargeable battery used as the operating power source in select Mighty Mule automatic gate opener systems. The operator's transformer or solar charging system maintains the battery, while the battery supplies the current needed to move the gate.
A weak or discharged battery can cause slow gate movement, clicking, intermittent operation, low-battery warnings, stalling under load, or failure after a power outage. These symptoms can also be caused by a failed transformer, undersized solar system, damaged wiring, corroded terminals, or a control-board charging problem.
Compatible With
Current manufacturer information confirms the FM150 for the following Mighty Mule applications:
- Mighty Mule HD272 dual swing gate opener
- Mighty Mule MM571W single swing gate opener
- Mighty Mule MM572W dual swing gate opener
- Mighty Mule MMB200 battery enclosure accessory
- Select MM271 installations using the MMB200 enclosure
- Select MM272 installations using the MMB200 enclosure
- Select MM371W installations using the MMB200 enclosure
- Select MM372W installations using the MMB200 enclosure
Legacy Applications Requiring Verification
Older manufacturer-backed product information also associates the FM150 battery with select FM402, MM462, FM500, MM560, FM502, MM562, MM-SL1000B, MM-SL2000B, and MM-LPS13 systems. Because battery arrangements can vary by model generation, production date, and control-box configuration, verify these legacy applications by the operator manual and original battery label before ordering.
Important Compatibility Warning
The FM150 is not a universal battery for every Mighty Mule gate opener. Historical manufacturer information specifically identifies the FM200, MM260, FM350, and MM360 as incompatible with this battery. Other operators may require an automotive, lawn tractor, marine, or differently sized sealed battery.
Do not select a replacement based only on the 12-volt rating. The amp-hour capacity, physical dimensions, terminal width, terminal position, polarity, enclosure clearance, harness, and charging-system requirements must also match.
Features and Specifications
| Specification | Details |
| Brand | Mighty Mule |
| Part Number | FM150 |
| Product Type | Automatic gate opener replacement battery |
| Nominal Voltage | 12 volts DC |
| Capacity | 7 amp-hours |
| Battery Chemistry | Valve-regulated lead-acid battery |
| Maintenance | Maintenance-free under normal use |
| Rechargeable | Yes |
| Typical Service Life | Approximately 2 to 3 years depending on use, temperature, and charging conditions |
| Package Contents | One replacement battery; enclosure and wiring accessories are not included unless specifically stated |
| Related Reference | RB500 appears in legacy installation documentation; verify before substitution |
Similar Batteries That Are Not Automatically Interchangeable
- Automotive or lawn tractor batteries required by certain Mighty Mule models
- Marine batteries installed in external weather-resistant enclosures
- 12V batteries with different amp-hour capacities or physical dimensions
- Batteries with different terminal widths, locations, or polarity
- 6V batteries or multiple-battery systems wired for a different operating voltage
- Aftermarket batteries that do not match the original enclosure or harness
Technician Note
The battery is the primary power source in many Mighty Mule systems, even when an AC transformer or solar panel is connected. The transformer or solar panel normally charges the battery rather than directly powering every gate cycle.
If a new battery repeatedly goes dead, test the transformer or solar input, charging voltage, battery harness, fuse, terminal connections, and control-board charging circuit. Do not bypass fuses, entrapment protection devices, or operator safety circuits while diagnosing a charging problem.
Before Ordering Checklist
- Confirm the complete Mighty Mule operator model number.
- Compare the original battery label with FM150 and 12V 7Ah ratings.
- Check the battery's physical dimensions and available enclosure space.
- Verify terminal width, terminal position, cable length, and polarity.
- Determine whether the operator uses an internal battery or an MMB200 enclosure.
- Inspect the battery harness, fuse, and connectors for corrosion or heat damage.
- Confirm that the transformer or solar charging system is operating correctly.
Installation and Service Notes
Disconnect the charging source before replacing the battery and prevent tools from contacting both battery terminals at the same time. Connect the red battery lead to positive and the black battery lead to negative. Reversing polarity can damage wiring, fuses, or control-board components.
Recycle the old lead-acid battery through an approved battery recycling location. Do not place it in household trash or expose it to fire. A leaking, swollen, cracked, or overheated battery should be handled cautiously and replaced only after the charging system has been inspected.
If the battery wiring is damaged, the charging voltage is unclear, or the operator continues to report charging faults, have the system checked by a qualified gate or low-voltage technician.
Product Questions and Answers
Is the FM150 compatible with every Mighty Mule gate opener?
No. Current confirmed applications include the HD272, MM571W, MM572W, and MMB200 enclosure setups used with select MM271, MM272, MM371W, and MM372W systems. Other models must be verified by the operator manual and original battery label.
Can the FM150 replace the battery inside an MMB200 enclosure?
Yes. Current manufacturer information identifies the FM150 as the replacement battery used with the MMB200 battery enclosure accessory.
What are the electrical ratings of the FM150 battery?
The FM150 is a rechargeable 12-volt battery with a 7 amp-hour capacity.
Is RB500 the same part as FM150?
RB500 appears in legacy installation documentation as a related 12-volt, 7 amp-hour battery reference. Verify the original battery label and operator manual before treating RB500 and FM150 as interchangeable.
Will a new FM150 fix a gate opener that will not operate?
It may correct a weak or failed battery problem, but it will not repair a failed transformer, solar panel, battery harness, fuse, wiring connection, or control-board charging circuit.
Does the FM150 include a battery enclosure or wiring harness?
The standard FM150 product is the replacement battery only. An enclosure, battery harness, mounting hardware, or fuse should not be assumed included unless the specific seller listing states otherwise.
Can the FM150 be used with an FM350, MM360, FM260, or FM200 opener?
No. Historical manufacturer-backed product information identifies the FM200, MM260, FM350, and MM360 as incompatible with the FM150 battery.
How often should a Mighty Mule FM150 battery be replaced?
Current manufacturer guidance indicates an expected service life of approximately 2 to 3 years. Actual life depends on gate use, temperature, charging performance, solar exposure, and the condition of the operator.
