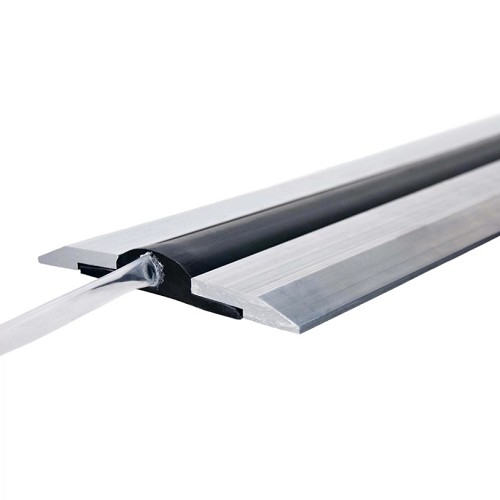

Miller Edge MEP190 10 ft Pneumatic PVC Treadle Switch Technical Details
The Miller Edge MEP190 10 ft pneumatic treadle is a black, all-weather PVC pressure-sensitive activation treadle used for select vehicle detection and signaling applications. It is commonly used where a vehicle driving over the treadle needs to activate a connected door, gate, alarm, or signaling control through an external pneumatic switch.
The MEP190 is the pneumatic version of the Miller Edge ME190 treadle family. It uses attached pneumatic tubing to send air pressure to an external pneumatic switch. The switch then converts that pressure into an electrical contact signal for the connected control equipment. Always confirm the required switch, tubing path, control input, and mounting method before ordering.
What This Part Does
The MEP190 treadle responds when a vehicle rolls over the PVC treadle body. That pressure creates an air pulse through the attached pneumatic tube. When connected to the correct pneumatic switch, such as a compatible Miller Edge PS-20A switch, the system can provide a contact output to a gate operator, garage door operator, signaling device, alarm panel, or access control circuit.
- Provides pressure-sensitive vehicle activation
- Uses pneumatic air pressure instead of electrical components inside the treadle
- Designed for indoor or outdoor use when properly installed
- Commonly used for gates, doors, parking facilities, service stations, car washes, and drive-through signaling
- Black PVC treadle body is built for vehicle traffic applications
- Works with a compatible external pneumatic switch
- Can be secured with an optional treadle retainer when required by the installation
Compatible With
This Miller Edge MEP190 treadle may be used with select control systems where a pneumatic pressure switch contact is an approved activation input. Compatibility depends on the switch used, the control circuit, the installation surface, the vehicle traffic pattern, and the intended function.
- Select automated gate activation systems
- Select motorized commercial door activation systems
- Parking garage entry and exit signaling applications
- Service station and car wash vehicle detection applications
- Drive-through signaling and alert systems
- Compatible pneumatic switches, commonly including Miller Edge PS-20A style applications
- Control inputs that accept the contact output provided by the selected pneumatic switch
Important Compatibility Warning
Do not order this item based only on the word "treadle." The Miller Edge ME190 treadle family includes different configurations. The MEP190 is the pneumatic treadle version, while the MAW190 is the Air-Wave treadle version. Pneumatic and Air-Wave systems use different switch styles and should not be treated as the same system.
The treadle itself does not replace the external pneumatic switch unless the product listing specifically includes one. Miller Edge product information indicates switches are sold separately for ME190 treadle systems. Confirm whether the PS-20A pneumatic switch, treadle retainer, mounting hardware, tubing fittings, and operator-side wiring are included or must be ordered separately.
Similar Parts That Are Not Automatically Interchangeable
- Miller Edge MAW190: Air-Wave treadle version. It is not the same as the MEP190 pneumatic treadle.
- Miller Edge MEP190 in other lengths: Same pneumatic treadle family, but length must match the application. The 10 ft version is the maximum standard length commonly referenced.
- Miller Edge PS-20A: External pneumatic switch used with pneumatic treadles and pneumatic sensing edges. It is the switch, not the treadle body.
- Miller Edge AW10 / AW12A / AW14: Air-Wave switches used with Air-Wave systems. These are not the same as the PS-20A pneumatic switch.
- Treadle retainer: Optional retainer used to secure the treadle to the ground. It does not replace the treadle or pneumatic switch.
- Loop detector systems: Vehicle detection loops use a buried or saw-cut loop and detector module. They are not the same as a pneumatic treadle.
- Photo eyes and light curtains: Non-contact safety devices. They do not provide the same pressure activation method as this treadle.
Not Intended For
- Pedestrian-only detection where a vehicle-rated treadle is not appropriate
- Replacing monitored photo eyes, monitored safety edges, or required entrapment protection
- Applications requiring a buried loop detector or radar motion sensor
- Air-Wave systems that require an MAW190 treadle and Air-Wave switch
- Control systems that do not accept the output from the selected pneumatic switch
- Sites where the treadle cannot be properly anchored or protected from damage
- Use as a standalone electrical switch without the proper pneumatic switch
- Bypassing gate, garage door, or commercial door safety circuits
Features and Specifications
| Specification | Details |
| Brand | Miller Edge |
| Model / Part Number | MEP190 |
| Product Family | ME190 treadle family |
| Product Type | Pneumatic pressure-sensitive treadle |
| Listed Length | 10 ft |
| Color | Black |
| Material | PVC |
| Configuration | Non-monitored pneumatic treadle |
| Detection Type | Pressure-sensitive vehicle activation |
| Common Applications | Parking garages, service stations, car washes, drive-through signaling, motorized doors, and automated gates |
| Approximate Dimensions | Approximately 3-11/16 in to 3-3/4 in wide x 3/4 in high |
| Sensitivity | Approximately 2 lb / 32 oz activation sensitivity |
| Lead Hose | Attached 5/16 in ID PVC pneumatic tubing |
| Outlet Location | End outlet |
| Operating Temperature | Approximately -30 degrees F to +158 degrees F |
| Electrical Components in Treadle | None inside the treadle body; requires external pneumatic switch for electrical contact output |
| Related Pneumatic Switch | Miller Edge PS-20A or compatible pneumatic switch, verify before ordering |
| Optional Accessory | Treadle retainer, verify if required and sold separately |
| Warranty | 1 year, subject to manufacturer terms |
| Country of Origin | Made in USA |
Package Contents and Switch Note
The product title may use the words "treadle switch," but the MEP190 treadle normally works with an external pneumatic switch. Confirm current package contents before publishing, picking, or shipping.
- MEP190 10 ft black pneumatic PVC treadle
- Attached pneumatic tubing
- External pneumatic switch only if specifically included with the listing
- Treadle retainer only if specifically included with the listing
- Mounting hardware, tubing fittings, and control wiring only if listed with the package
Also Known As / Related Part Numbers
- Miller Edge MEP190
- MEP190 10 ft pneumatic treadle
- Miller Edge ME190 pneumatic treadle
- Miller Edge 10 ft black PVC treadle
- ME-MEP190-10 - common store item reference
- ME190-10 - verify listing reference before using as the final part number
- PS-20A pneumatic switch - related accessory, normally separate
- MAW190 Air-Wave treadle - related treadle style, not the same as MEP190
Related Parts and Service Checks
Before replacing or installing a pneumatic treadle, review the entire activation system. A treadle will not correct a failed pneumatic switch, damaged tubing, wrong control input, poor mounting surface, water-filled tubing, or operator control fault.
- Confirm the job requires the pneumatic MEP190 version, not the MAW190 Air-Wave version.
- Confirm the required length is 10 ft.
- Check whether the PS-20A pneumatic switch is included or must be ordered separately.
- Verify the control system accepts the switch output being used.
- Plan the tubing route so it is protected from crushing, sharp bends, and water traps.
- Confirm whether a treadle retainer is needed to secure the treadle to the surface.
- Check the traffic direction, tire path, mounting surface, drainage, and exposure to vehicle damage.
- Confirm that required safety devices remain installed and functional.
Technician Note
The MEP190 is an activation treadle, not a monitored safety edge. It is often used where a vehicle needs to trigger a door, gate, signal, or alert by physically driving over the treadle. The external pneumatic switch is what provides the electrical contact back to the control system.
On outdoor installations, routing the pneumatic tube cleanly matters. Avoid low spots that can hold water, tight bends that restrict air movement, and exposed hose runs that can be crushed by traffic or maintenance equipment.
Before Ordering Checklist
- Confirm the needed product is Miller Edge MEP190 pneumatic treadle.
- Confirm the length needed is 10 ft.
- Do not confuse MEP190 with MAW190 Air-Wave treadle.
- Confirm whether a PS-20A pneumatic switch is included or required separately.
- Verify whether a treadle retainer is included or required separately.
- Confirm the control input accepts the pneumatic switch output.
- Check the outlet end and tubing route before ordering.
- Verify the treadle will be used for vehicle activation or signaling, not as a required monitored safety device.
- Confirm the mounting surface is suitable for a PVC treadle and vehicle traffic.
Installation and Service Notes
This treadle should be installed by a qualified door, gate, access control, low-voltage, or facility maintenance technician familiar with the equipment being controlled. The treadle, pneumatic tube, switch, and control input should be installed according to the manufacturer instructions and the connected operator or control panel documentation.
Do not bypass photo eyes, sensing edges, monitored safety inputs, loop detectors, warning devices, fire access controls, door reversal systems, or entrapment protection to make a gate or door run. If the treadle does not activate the system, diagnose the pneumatic tube, switch, contact output, wiring, and control input instead of defeating safety circuits.
Professional Advisory
A pneumatic treadle is part of an activation or signaling system, not a substitute for required safety devices. If the door, gate, or equipment moves unexpectedly, fails to stop, fails to reverse, or ignores safety inputs, stop using it until the operator, controls, and safety devices are checked by a qualified technician.
For South Florida customers, local pickup in the Hialeah Gardens area may be available when inventory allows. Confirm availability, package contents, switch requirements, and retainer needs before coming in for pickup.
Product Questions and Answers
What is the Miller Edge MEP190 10 ft treadle used for?
The Miller Edge MEP190 10 ft treadle is used for pressure-sensitive vehicle activation and signaling in select gate, door, parking garage, service station, car wash, and drive-through applications.
Is MEP190 the pneumatic treadle version?
Yes. MEP190 is the pneumatic version of the Miller Edge ME190 treadle family. It uses attached pneumatic tubing and requires a compatible external pneumatic switch to provide an electrical contact signal.
Is MEP190 the same as MAW190?
No. MEP190 is the pneumatic treadle version. MAW190 is the Air-Wave treadle version and uses Air-Wave style switching equipment. They should not be ordered interchangeably.
Does the MEP190 include the pneumatic switch?
Not automatically. Miller Edge treadle information indicates that switches are sold separately unless the listing specifically includes one. Confirm whether the PS-20A pneumatic switch is included before ordering.
What switch is commonly used with the MEP190 treadle?
The Miller Edge PS-20A pneumatic switch is commonly associated with pneumatic configured sensing edges and treadles. Confirm the switch output and enclosure needs before connecting it to the control system.
Can this treadle be used outdoors?
Yes. The MEP190 treadle is intended for indoor or outdoor applications when properly installed. The tubing route, switch enclosure, drainage, and retainer method should be planned for the site conditions.
Is this treadle a monitored safety device?
No. The pneumatic MEP190 treadle is a non-monitored pressure activation device. It should not be used as a substitute for required monitored photo eyes, monitored sensing edges, or UL 325 entrapment protection.
What should be checked before ordering the MEP190 10 ft treadle?
Confirm the 10 ft length, pneumatic configuration, switch requirement, tubing route, outlet location, retainer needs, mounting surface, control input compatibility, and whether the PS-20A switch or any accessories are included.
