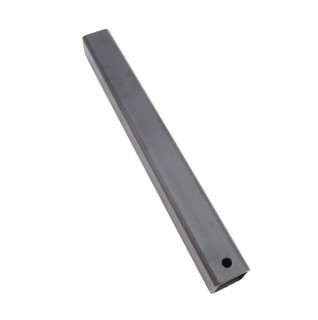

NICE / APOLLO 1116, PIVOT ARM f/ 15XX/16XX
The Nice Apollo 1116 pivot arm is a structural service part used in the mounting geometry of Apollo 15XX and 16XX swing gate operators. The pivot arm helps transfer movement from the actuator mounting arrangement into the gate installation while keeping the correct arc, leverage, and spacing for the operator. A bent, poorly welded, or incorrect pivot arm can cause binding, uneven travel, incorrect open/close limits, excessive actuator stress, and premature wear at the mounting points. This part is commonly used during actuator replacement, gate remounting, or repair of older Apollo swing gate systems. Because swing gate geometry changes by pull-to-open, push-to-open, post location, gate bracket position, and operator model, the installer should verify the original part number and mounting dimensions before welding or bolting anything in place.
Compatible With
- Apollo 1500 swing gate operators
- Apollo 1600 dual swing gate operator systems
- Apollo 1550 and 1550ETL swing gate operators
- Apollo 1650 and 1650ETL dual swing gate systems
- Select Nice Apollo Titan or actuator-style installations only when the parts diagram calls for 1116 or 10000415
- Apollo 15XX/16XX service applications using the weldable pivot arm design
Features & Specifications
| Manufacturer | Nice Apollo |
|---|
| Product Type | Pivot arm |
|---|
| Part Number | 1116 |
|---|
| Related Part Number | 10000415 |
|---|
| Application | Swing gate actuator mounting geometry |
|---|
| Compatible Operator Type | Apollo 15XX and 16XX swing gate operators |
|---|
| Material / Finish | Weldable steel style service arm |
|---|
| Notes | Verify gate geometry before welding or final mounting |
|---|
Also Known As / Related Part Numbers
- 1116
- 10000415
- NICE-1116
- Apollo 1116
- Nice Apollo 10000415
- Pivot arm for 1500/1600
- Pivot arm for 1550ETL/1650ETL
Technician Note
Match this part by the installed operator model, original part number, and current Nice Apollo parts diagram. Many Apollo service parts look similar across generations, but small differences in mounting, lead length, brackets, control-box style, or included hardware can make the wrong part unusable.
Before Ordering Checklist
- Confirm the complete operator model number and series.
- Compare the existing part to the part number shown on this page.
- Check mounting holes, bracket style, cable or lead length, and included hardware when applicable.
- Confirm whether this is a complete kit or only one component of the assembly.
- Do not bypass photo eyes, safety edges, or other required safety devices during troubleshooting.
Professional Advisory
Gate operator repairs should be performed with the gate secured and power disconnected where required. For high-voltage wiring, travel-limit problems, damaged barrier arms, or unsafe gate movement, use a qualified gate technician.
Product Questions & Answers
What is the Nice Apollo 1116 used for?
The 1116 is used as a pivot arm for compatible Nice Apollo gate operator systems where the original parts diagram calls for this part number.
Which operators or assemblies is 1116 compatible with?
It is compatible with select applications listed on this page, but the installed operator model, generation, mounting style, and original part number should be matched before ordering.
Is 1116 the same as the related part numbers shown?
The related numbers are included to help with searching and cross-reference work. Do not treat a related number as an exact replacement unless the manufacturer parts diagram or original label confirms it.
What should be checked before installing 1116?
Check the operator model, original part number, mounting points, hardware, wiring or lead style when applicable, and any required safety devices before returning the gate to service.
Can this part be installed by a homeowner?
Some mechanical service parts are simple, but gate operators can move with force and electrical parts can be unsafe. Use a qualified gate technician when the repair affects wiring, limits, safety devices, or gate movement.
