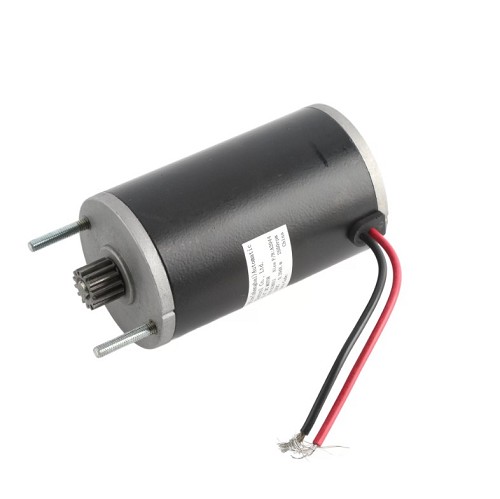

NICE / APOLLO A2014, ASSEMBLY, MOTOR & PINOR GEAR FOR 816 ACTUATOR
The Nice Apollo A2014 is the motor and pinion gear assembly used in compatible Apollo 416 and 816 style linear actuator gate arms. This assembly is part of the actuator drive system that moves the gate arm under control of the gate operator board. It is commonly replaced when the actuator motor is failed, noisy, weak under load, physically damaged, or when the pinion gear is worn or damaged. Because motor symptoms can also be caused by batteries, charging issues, control-board faults, binding gates, damaged gear train parts, or incorrect force settings, the actuator should be diagnosed before ordering. A2014 should be matched to the actuator model and not confused with external control boards, complete actuator arms, or different motor assemblies.
Compatible With
- Apollo 416 actuators
- Apollo 416X actuators
- Apollo 816 actuators
- Apollo 816X actuators
- Apollo 1500, 1550, 1551, 1600, and 1650 systems when those systems use compatible 416/816 style actuator arms
- Compatible actuator assemblies that specifically call for A2014 motor and pinion gear
Features & Specifications
| Manufacturer | Nice Apollo |
|---|
| Product Type | Motor and pinion gear assembly |
|---|
| Part Number | A2014 |
|---|
| Application | Actuator drive motor service assembly |
|---|
| Compatible Operator Type | Apollo 416/416X and 816/816X swing gate actuators |
|---|
| Notes | Motor and pinion gear assembly; verify actuator model before ordering. |
|---|
Also Known As / Related Part Numbers
- A2014
- 2014
- Apollo A2014
- 57010517 related supplier reference
- motor and pinion gear
- actuator motor with pinion gear
- motor & pinion gear for 416/816 actuator
- related but not the same as complete 416 or 816 actuator arm
Technician Note
Before replacing the motor, check that the gate swings freely by hand, the batteries and charging system are healthy, and the control board is not showing a wiring or overload issue. A new motor can be damaged if the gate is binding or the actuator gear train is seized.
Before Ordering
- Confirm the actuator is a 416, 416X, 816, or 816X style arm that calls for A2014.
- Diagnose battery voltage, charging output, control board output, and gate binding before replacing the motor.
- Inspect the pinion gear, spur gear, main screw, and actuator housing for related damage.
- Verify the motor leads and connector style match the original assembly.
- Use a qualified technician for electrical diagnosis or actuator disassembly if conditions are unsafe.
Professional Advisory
Gate operator parts should be installed with the operator powered down and the gate secured against movement. For electrical diagnosis, actuator disassembly, or unsafe gate movement, use a qualified gate technician. Do not bypass required safety devices or use this service part to defeat UL325 safety functions.
Important Ordering Warning
Do not replace the motor to overcome a dragging gate, seized hinge, bent actuator, or bypassed safety issue. Mechanical binding must be corrected before the operator is returned to service.
Product Questions & Answers
What is included with A2014?
A2014 is the motor and pinion gear assembly for compatible Apollo 416 and 816 style actuators.
Will A2014 fit an Apollo 816 actuator?
Yes, it is commonly listed for Apollo 816 and 816X actuators, as well as 416 and 416X actuators.
Can a bad control board mimic a bad motor?
Yes. Board output, battery condition, wiring, and charging problems can all look like motor failure, so diagnosis is important.
Is this a complete replacement actuator arm?
No. It is the motor and pinion gear assembly only, not the complete linear actuator.
What should be checked before installing a new motor?
Check gate swing, hinges, actuator gear train, batteries, charging system, wiring, and control-board output before replacing the motor.
