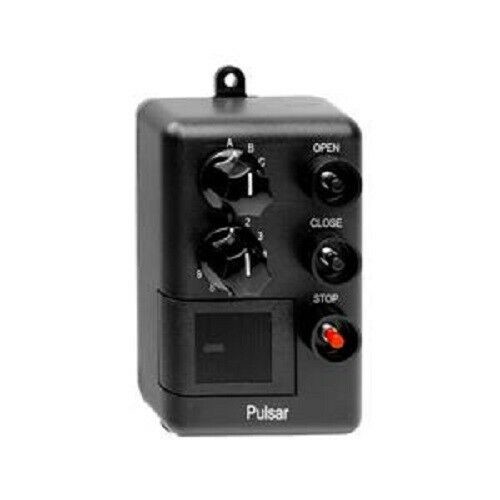

Pulsar 535T 318 MHz Wall Mount Open/Close/Stop Transmitter for 27 Doors
The Pulsar 535T is a stationary wall-mount transmitter for commercial Open/Close/Stop radio control. It gives the user separate Open, Close, and Stop pushbutton functions through a compatible 318 MHz receiver instead of a simple one-button open/close command.
This transmitter belongs to a family of commercial Pulsar / Allstar style OCS stations. The key difference between models is the number of doors the station can address. The 535T is the 27 doors version, with two selector dials, commonly A/B/C and 1-9 for 27-door selection. That matters because a one-door, three-door, nine-door, and twenty-seven-door station are not the same part even though the button style and frequency may be similar.
Compatible With
Commonly associated with the following receiver families and commercial applications when frequency, coding, and door count match:
- Pulsar 831 receiver family for Open/Close/Stop control
- Pulsar 831RE economy receiver when compatible with the installation
- Pulsar 831R 24 VAC receiver references
- Pulsar 831S / 831S110 110 VAC receiver references
- Compatible Allstar 318 MHz Open/Close/Stop receiver systems
- Compatible Allister 318 MHz Open/Close/Stop receiver systems
- Commercial sectional door operators with separate open, close, and stop inputs
- Commercial rolling door or grille operators with OCS control logic
- Gate operators or control panels set up for OCS radio control through a compatible receiver
- 27 Doors transmitter applications using 535T layout
Features and Specifications
| Specification | Details |
|---|
| Manufacturer | Pulsar / MMTC style radio control |
| Product Type | Wall-mount Open/Close/Stop transmitter |
| Part Number | 535T |
| Related Linear Number | 190-107475 |
| Frequency | 318 MHz |
| Button Function | Open / Close / Stop |
| Door Capacity | 27 Doors |
| Selector Style | two selector dials, commonly A/B/C and 1-9 for 27-door selection |
| Common Size | About 5-3/4 in. x 3 in. x 2-1/4 in. on common listings |
| Application | Commercial door or gate radio control |
Also Known As / Related Part Numbers
- 535T
- 535
- Pulsar 535T
- Pulsar 535T transmitter
- 535T Open Close Stop transmitter
- 190-107475
- Pulsar 535
- ADX535
- PDX535
- Allstar 535T compatible reference
- Allister 535T compatible reference
Technician Note
This is not a universal wall button. It is a radio transmitter for a matching commercial receiver. For replacement, match the old station model and receiver family first, then confirm whether the site needs 27 doors operation.
Before Ordering
- Confirm the existing receiver operates at 318 MHz
- Confirm the system uses separate Open, Close, and Stop commands
- Confirm the number of doors controlled by the old transmitter
- Match the dip-switch or trinary coding format
- Verify receiver voltage separately if the receiver is being replaced too
Professional Advisory
Commercial door and gate radio controls should be installed so open, close, and stop commands do not defeat monitored safety devices, entrapment protection, or required line-of-sight controls. If the operator wiring, voltage, or control inputs are uncertain, have a qualified gate or commercial door technician verify the installation.
Important Ordering Warnings
Do not use an Open/Close/Stop radio station to bypass a required hardwired stop circuit or monitored safety device. The receiver output must be connected according to the operator control requirements.
Product Questions and Answers
How many doors does the Pulsar 535T control?
The 535T version is intended for 27 doors when used with compatible 318 MHz Pulsar / Allstar style OCS receiver equipment.
Is this a regular garage door wall button?
No. It is a wall-mount radio transmitter that sends Open, Close, and Stop commands to a compatible receiver.
What receiver family is commonly used with this transmitter?
It is commonly associated with the Pulsar 831 receiver family and compatible Allstar / Allister 318 MHz Open/Close/Stop receiver systems.
Can I replace a 733T with this model?
Only if the door count and model number match. 831T, 733T, 639T, and 535T are related but different OCS transmitter layouts.
What should be checked before ordering?
Confirm frequency, receiver family, door count, button function, and coding format. If the receiver is also being replaced, confirm voltage and wiring requirements.
