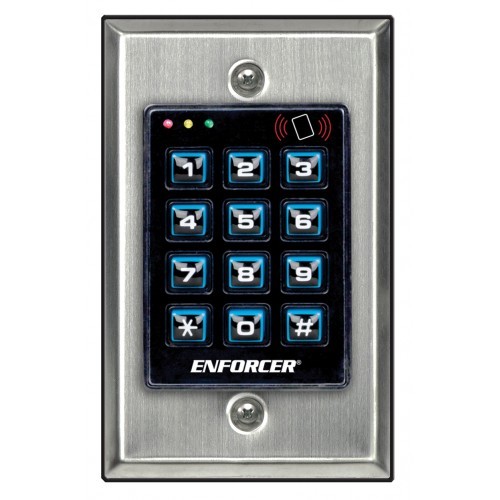

SECO-LARM SK-1131-SPQ Indoor Illuminated Access Control Keypad with Proximity Reader
The SECO-LARM SK-1131-SPQ combines an illuminated access keypad and proximity card reader in one indoor unit. It is typically used where a customer wants both keypad-code entry and card access without installing two separate devices. The keypad can be programmed directly from the face of the unit and is commonly used to trigger a low-voltage lock relay, access control input, gate operator open command, or similar controlled entry circuit. Because it is an indoor access keypad, it should be mounted in a protected interior or weather-sheltered location rather than treated as an outdoor post keypad. Correct fitment depends on the power supply, lock type, relay wiring, credential format, and whether the system needs stand-alone operation or connection to another controller.
Compatible With
- Indoor access-control doors, offices, lobbies, equipment rooms, and protected pedestrian entry points
- Electric strikes, magnetic locks, request-to-exit buttons, and door-position circuits when wired within rating
- Gate operator control inputs that accept a low-voltage dry-contact access command
- SECO-LARM proximity credential systems using compatible EM 125 kHz credentials, when programmed to the keypad
- Installations replacing or upgrading similar indoor SECO-LARM keypad/prox reader units where size, wiring, and programming match
Also Known As / Related Part Numbers
- SK-1131-SPQ
- SK1131SPQ
- SECO-LARM SK-1131-SPQ
- Enforcer SK-1131-SPQ
- Indoor illuminated keypad with proximity reader
- Related credential references: PR-K1S1-A proximity cards, PR-K1K1-AQ proximity key tags, when credential format is compatible
Features & Specifications
| Manufacturer | SECO-LARM / ENFORCER |
|---|
| Product Type | Indoor illuminated access keypad with proximity reader |
|---|
| Part Number | SK-1131-SPQ |
|---|
| Application | Indoor access control, controlled door entry, protected pedestrian gate control |
|---|
| Operating Voltage | 12 to 24 VAC/VDC auto-adjusting |
|---|
| User Capacity | Commonly listed up to 1,000 users/cards depending on output and programming |
|---|
| Outputs | Programmable access-control relay outputs; tamper output |
|---|
| Inputs | Egress input and related access-control inputs |
|---|
| Credential Technology | Proximity card reader, commonly EM 125 kHz credential family |
|---|
| Mounting | Indoor wall mount / protected location |
|---|
| Notes | Programmed from keypad; verify lock type, power, and credential format |
|---|
Technician Note
For gate use, connect only to the operator's proper low-voltage access input. Do not wire this keypad directly into high-voltage circuits or use it to bypass required monitored entrapment protection.
Before Ordering Checklist
- Confirm the installation is indoors or protected from weather.
- Match the power supply to the keypad and the connected lock or operator input.
- Confirm the credential family if proximity cards or tags will be used.
- Check whether the site needs fail-safe or fail-secure lock wiring.
- Save the master code and programming records before handing the system over to the customer.
Professional Advisory
Access-control wiring should be performed by a qualified technician when it involves electric locks, gate operators, fire/life-safety doors, or controlled building entry.
Important Ordering Warnings
- This is not a universal outdoor keypad.
- Credential compatibility is not guaranteed just because a card is 125 kHz; the format must be supported by the reader and programmed system.
- Do not connect relay terminals to loads above the published rating.
Product Questions and Answers
Is the SK-1131-SPQ for indoor or outdoor use?
The SK-1131-SPQ is best treated as an indoor or protected-location keypad. For exposed outdoor use, a weatherproof SECO-LARM keypad such as a compatible SK-1123, SK-1323, SK-2323, or Bluetooth post-mount model may be a better match.
Can this keypad open a gate operator?
Yes, it may be used with a gate operator if the operator has a proper low-voltage access-control input that accepts a dry-contact relay command. It should not be wired into high-voltage motor or power circuits.
Does it work with proximity cards?
Yes, this model includes a built-in proximity reader. The cards or tags still need to match the supported credential technology and be programmed into the keypad.
Does this replace every SECO-LARM keypad?
No. Match the model, voltage, mounting location, relay count, wiring, and credential needs before replacing an existing keypad.
Will it keep programming if power is lost?
The keypad uses EEPROM memory to help retain programmed information if power is interrupted, but programming records should still be saved by the installer or property manager.
