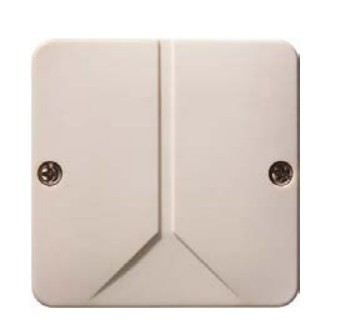

Transmitter Solutions RECTS433-LC 433 MHz Low Consumption Exterior Receiver Details
The Transmitter Solutions RECTS433-LC is the low-consumption configuration specifically listed by Transmitter Solutions for the HIVE Mini Outdoor 433 MHz receiver family. The manufacturer identifies the LC version for solar applications, making it useful where receiver standby power is an important part of the control system power budget.
The supplied RECTS433-LC catalog configuration is identified as a 2-channel, 85-memory exterior receiver. Current manufacturer documentation places RECTS433-LC on the Mini 2 Out Exterior Receiver product page, but the manufacturer does not currently publish a separate RECTS433-LC manual or cut sheet. The linked 2-relay Mini Outdoor manual identifies its receiver hardware as RECTSMINI2OUT. Verify the physical RECTS433-LC product label and hardware revision when exact current draw, relay layout, or replacement interchange is critical.
What the RECTS433-LC Receiver Does
The HIVE Mini Outdoor receiver accepts compatible 433.92 MHz rolling-code transmitter commands and activates relay outputs for compatible control equipment. The documented 2-relay receiver provides two output channels and uses push-to-learn transmitter programming.
The receiver family is designed for automatic closing and security control applications. It can provide control commands to compatible gate operators, garage door controls, rolling shutter controls, awning controls, anti-burglar equipment, and lighting control systems when the radio protocol, relay interface, and electrical requirements are correct.
All Verified HIVE Mini Outdoor Applications
- Automatic gate control.
- Garage door control.
- Automatic closing systems.
- Rolling shutter control.
- Awning control.
- Anti-burglar and security appliance control.
- Lighting control applications.
- Solar-powered control applications where the RECTS433-LC low-consumption configuration is suitable for the system power budget.
The receiver provides control relay outputs and does not replace the connected operator or controller's required safety logic. The connected equipment must use a compatible control input and remain within the applicable receiver relay requirements.
All Verified 433 MHz Transmitter Compatibility
The Transmitter Solutions 2-relay Mini Outdoor receiver manual specifically identifies the following transmitter models as usable with the receiver:
- Transmitter Solutions Stingray 433TSPW1V.
- Transmitter Solutions Stingray 433TSPW2V.
- Transmitter Solutions Monarch 433TSPW1K legacy manual reference.
- Transmitter Solutions Monarch 433TSPW2K legacy manual reference.
The current Transmitter Solutions transmitter catalog publishes Monarch models 433TSPW1K-C and 433TSPW2K-C. The linked receiver manual uses the older 433TSPW1K and 433TSPW2K formatting without the -C suffix. Do not assume a suffix change is irrelevant when exact transmitter compatibility is required. Confirm the current transmitter part number and receiver programming system before ordering.
433.92 MHz Rolling-Code Operation
The documented HIVE Mini Outdoor receiver uses a 433.92 MHz superheterodyne radio and KeeLoq Hopping Code rolling-code security. The transmitter code changes during operation and the receiver maintains synchronization with the compatible transmitter system.
Matching the 433 MHz frequency alone does not prove compatibility. Transmitter Solutions also offers 433 MHz DIP-switch and other programmable radio products. Confirm the transmitter part number and coding system before adding remotes to RECTS433-LC.
85-User Receiver Memory
Current Transmitter Solutions receiver family documentation lists push-to-learn programming for up to 85 remotes and specifies memory capacity for 85 user codes. The linked 2-relay manual also states that full memory is reached when 85 transmitters are stored.
The receiver manual documents individual transmitter deletion and complete memory erasure. Complete erasure removes all stored transmitters and should only be performed when the site's existing access users and reprogramming requirements are understood.
Two Relay Output Configuration
The linked Mini 2 Out manual identifies two receiver relays. The first documented relay provides Common and Normally Open contacts. The second relay provides Common, Normally Open, and Normally Closed contacts.
- First relay - C and NO contacts.
- Second relay - C, NO, and NC contacts.
The manufacturer manual identifies the relays on the board as K3 and K4 and the programming channels as ch3 and ch4. Confirm the physical RECTS433-LC board and terminal markings before transferring wiring from another receiver.
Momentary and Latching Relay Operation
The HIVE Mini Outdoor family is published with momentary or latching relay options. In the linked 2-relay manual, relay K4 can be changed between momentary and latch mode using jumper JP1.
- JP1 open - Momentary mode for K4.
- JP1 closed - Latch mode for K4.
The linked manual does not identify the first relay as jumper-selectable for latching operation. Do not assume both channels provide identical latching functions. Confirm the required relay behavior before replacing another 2-channel receiver.
Low Consumption Configuration for Solar Applications
The current Transmitter Solutions product page specifically identifies RECTS433-LC as the low-consumption version available for solar applications. This is the main feature that separates the LC catalog designation from a standard Mini Outdoor receiver configuration.
Current public manufacturer current-draw documentation is not fully consistent. The current product page contains a malformed low-consumption current line and separately lists general family consumption of 15 mA steady and 49 mA with two relays excited at 12 VDC, and 19 mA steady and 55 mA with two relays excited at 24 VDC.
The linked 2-relay manual instead lists 1.5 mA steady and 40 mA with two relays excited at 12 VDC, and 1.4 mA steady and 48 mA with two relays excited at 24 VDC. Because the current public page does not provide a clean LC-specific current table, verify the physical RECTS433-LC hardware revision and applicable specification when calculating solar panel, battery, or standby power capacity.
12/24 VAC/DC Power Requirements
The HIVE Mini Outdoor receiver family operates from 12 or 24 VAC/DC power. The linked 2-relay manual identifies separate Common, 12 VAC/DC, and 24 VAC/DC supply terminals.
Confirm the available control voltage and use the correct receiver power terminal for the installed system. For damaged solar charging systems, battery faults, transformer problems, unknown voltage, or unsafe operator wiring, have a qualified gate, garage, low-voltage, access control, or electrical technician inspect the system.
IP65 Exterior-Rated Housing
The documented Mini Outdoor receiver housing carries an IP65 protection rating and is specifically described by the manufacturer as suitable for external installations. The enclosure measures approximately 3-1/8 x 3-1/8 x 2 inches and weighs approximately 4.5 ounces.
Exterior rated does not mean the receiver should be installed carelessly in a location subject to flooding, standing water, damaged conduit, or improper cable entry. Mount the enclosure correctly and maintain the housing, cable openings, caps, and cover so the installation does not defeat the enclosure protection.
Whip Antenna Included and Coax Antenna Optional
The current Mini Outdoor receiver page and cut sheet list a whip antenna as included and a coax antenna as optional. The linked 2-relay manual also documents a 433 MHz coax antenna connection with separate antenna pole and antenna ground terminals.
When troubleshooting poor range, inspect the antenna, receiver mounting position, nearby metal, large magnetic fields, computer equipment, and other radio interference sources before replacing the receiver. Transmitter Solutions publishes a range of up to 1200 feet for the Mini Outdoor receiver family, but actual installed range can vary with site conditions.
Similar HIVE Receivers Are Not Automatically Interchangeable
- RECTSMINI2OUT: The linked 2-relay Mini Outdoor manual identifies this part number. RECTS433-LC is separately named on the current manufacturer page as the low-consumption solar configuration. Do not assume every RECTSMINI2OUT revision has the same standby current as RECTS433-LC.
- 4-channel Mini Outdoor receiver: The same HIVE exterior receiver family is available with four channels. A 4-relay receiver has a different relay count and should not be ordered as an exact 2-channel replacement without checking the application.
- 2-channel interior receiver: Transmitter Solutions separately publishes a Stand Alone 2 Channel Interior receiver. An interior receiver should not be substituted when the IP65 exterior enclosure is required.
- RECTSNANO433: The HIVE Nano 433 MHz receiver has one channel, 85-user memory, and an IP2X housing. Similar 433 MHz rolling-code operation does not make it a 2-channel exterior replacement.
- HIVE433DIP: This is a separate 433 MHz DIP-switch receiver system. Matching frequency does not make DIP-switch transmitters compatible with the rolling-code Mini Outdoor receiver.
Features and Specifications
| Feature | Specification |
| Brand | Transmitter Solutions |
| Part Number | RECTS433-LC |
| Product Family | HIVE Mini Outdoor Receiver |
| Configuration | Low consumption for solar applications |
| Receiver Type | Superheterodyne |
| Carrier Frequency | 433.92 MHz |
| Demodulation | AM/ASK |
| Local Oscillator | VCO / PLL |
| Local Oscillator Frequency | 6.6128 MHz |
| Channel Width | Greater than 25 KHz |
| Intermediate Frequency | 10.7 MHz |
| Input Sensitivity | -115 dBm |
| Local Oscillator Spurious Emissions | Less than -57 dBm |
| Input Load | 50 Ohm |
| Channels | 2 per supplied RECTS433-LC catalog configuration |
| Memory Capacity | Up to 85 remotes / 85 user codes per manufacturer receiver family documentation |
| Security Code | Rolling code / KeeLoq Hopping Code |
| Relay Count | 2 per supplied configuration and documented Mini 2 Out layout |
| First Relay Contacts | C-NO in linked 2-relay Mini Outdoor manual |
| Second Relay Contacts | C-NO-NC in linked 2-relay Mini Outdoor manual |
| Relay Modes | Momentary; second documented relay can be jumper-configured for latch mode |
| Power Supply | 12 or 24 VAC/DC |
| Low Consumption Current Draw | Exact current RECTS433-LC values should be verified by hardware revision because current public manufacturer documents contain conflicting or malformed current-draw figures |
| Linked 2-Relay Manual Current at 12 VDC | 1.5 mA steady; 40 mA with 2 relays excited |
| Linked 2-Relay Manual Current at 24 VDC | 1.4 mA steady; 48 mA with 2 relays excited |
| Maximum Applicable Power | 24 VA per Mini Outdoor family documentation |
| Published Range | Up to 1200 ft |
| Housing Protection | IP65 |
| Antenna | Whip antenna included per current family page; coax antenna optional |
| Operating Temperature | -4 to 158 degrees F |
| Weight | Approximately 4.5 oz per current family specifications |
| Dimensions | Approximately 3-1/8 x 3-1/8 x 2 inches |
Manufacturer Current-Draw Documentation Conflict
Customers selecting RECTS433-LC for a solar gate or other low-power installation should pay close attention to the receiver revision. The current manufacturer page specifically calls RECTS433-LC the low-consumption version for solar applications, but the low-consumption current text on that page is malformed.
The current page's general Mini Outdoor specifications list substantially different current figures from the linked 2-relay manual. For solar panel sizing, battery reserve calculations, or installations with a strict standby current limit, verify the physical RECTS433-LC label and current specification for the receiver being supplied rather than using a standard Mini Outdoor receiver current figure.
Also Known As and Related Product References
- RECTS433-LC - current manufacturer-listed low-consumption part number for solar applications.
- RECTSMINI2OUT - part number identified in the linked 2-relay External Mini Receiver manual; related Mini Outdoor hardware reference, not automatically an identical LC revision.
- Mini 2 Out - manufacturer 2-relay receiver designation.
- HIVE Mini Outdoor Receiver - current product family designation.
Package Contents
The current Mini Outdoor product page lists a whip antenna as included and a coax antenna as optional. The linked 2-relay manual identifies the receiver assembly as including the electronics box, cover, mounting screws, caps, antenna, antenna nut, and mounting screws with plugs.
The current manufacturer does not publish a separate RECTS433-LC package contents list. Confirm exact package contents for the LC production revision when specific mounting hardware or antenna accessories are required.
Technician Note
The LC suffix is the detail to watch on this receiver. RECTS433-LC is specifically named by Transmitter Solutions as the low-consumption version for solar applications. Do not replace it with a standard 433 MHz Mini Outdoor receiver based only on the enclosure and 85-memory specification when standby current matters. Also check the remote family - the Mini 2 Out manual specifically lists Stingray 433TSPW1V, 433TSPW2V and legacy Monarch 433TSPW1K and 433TSPW2K references.
Before Ordering Checklist
- Confirm exact part number RECTS433-LC.
- Verify the physical receiver label and hardware revision.
- Confirm that the low-consumption solar configuration is required.
- Verify 433.92 MHz operation.
- Identify the exact existing transmitter part number.
- Confirm the transmitter uses the compatible rolling-code system.
- Verify that 85-user memory meets the site requirement.
- Confirm that two receiver channels are required.
- Check whether the first channel requires C-NO contacts.
- Check whether the second channel requires NO or NC contact capability.
- Confirm whether momentary or latching operation is required.
- Verify 12 or 24 VAC/DC receiver power.
- For solar systems, confirm the LC receiver's actual standby and energized current specification before sizing batteries or solar charging capacity.
- Confirm the IP65 exterior enclosure is appropriate for the mounting location.
- Verify whether the included whip antenna or optional coax antenna arrangement is required.
- Confirm package contents for the receiver revision being ordered.
Installation and Service Notes
The linked Mini 2 Out manual documents push-to-learn programming using the P1 button. The first transmitter button is assigned to the first receiver relay and the second transmitter button is assigned to the second relay during the documented two-channel programming procedure.
When replacing a receiver because of short range, inspect the antenna, receiver position, nearby metal, radio emissions, large magnetic fields, and electronic equipment before assuming the receiver has failed.
Do not bypass photo eyes, monitored safety edges, entrapment protection, emergency access, fire access, garage door safety sensors, door reversal systems, wall-control safety functions, or operator safety circuits when installing or testing this receiver.
Professional Advisory
If the existing relay wiring, solar power budget, battery charging system, control voltage, receiver revision, or transmitter protocol cannot be positively identified, have a qualified gate, garage, low-voltage, or access control technician inspect the system. Damaged solar charging circuits, unknown electrical loads, or unsafe power wiring may also require a qualified electrical technician.
Product Questions and Answers
What makes RECTS433-LC different from a standard HIVE Mini Outdoor receiver?
Transmitter Solutions specifically identifies RECTS433-LC as the low-consumption version available for solar applications. The current public page does not provide a clean LC-specific current table, so verify the physical receiver revision when standby power is critical.
Is RECTS433-LC an exterior-rated receiver?
Yes. The HIVE Mini Outdoor receiver family is documented with an IP65 housing protection rating and the manufacturer states that the housing allows external installations. Install the enclosure correctly and maintain the cover, cable entries, and mounting seals.
Which transmitters are verified for the documented 2-relay Mini Outdoor receiver?
The Transmitter Solutions 2-relay receiver manual specifically lists Stingray 433TSPW1V and 433TSPW2V plus legacy Monarch 433TSPW1K and 433TSPW2K references. Current Monarch catalog numbers use -C suffixes, so confirm the exact transmitter part number before ordering.
Can any 433 MHz remote be programmed to RECTS433-LC?
No. The documented receiver uses a 433.92 MHz KeeLoq Hopping Code rolling-code system. Matching the 433 MHz frequency alone does not prove compatibility with a DIP-switch, fixed-code, or different programmable transmitter family.
How many remotes can the RECTS433-LC receiver store?
The current HIVE Mini Outdoor product page lists push-to-learn programming for up to 85 remotes and specifies 85 user-code memory. The linked 2-relay manual also identifies full memory when 85 transmitters are stored.
Do both RECTS433-LC relay channels have Normally Closed contacts?
No. The linked 2-relay Mini Outdoor manual documents the first relay with Common and Normally Open contacts and the second relay with Common, Normally Open, and Normally Closed contacts. Verify the physical LC board revision and terminal markings before wiring.
What power does the RECTS433-LC receiver require?
The HIVE Mini Outdoor receiver family is documented for 12 or 24 VAC/DC power. Because current public manufacturer documents contain conflicting or malformed low-consumption current figures, verify the exact RECTS433-LC current draw when calculating a solar or battery power budget.
Is a coax antenna included with RECTS433-LC?
The current Mini Outdoor product page lists a whip antenna as included and a coax antenna as optional. The manufacturer does not publish a separate RECTS433-LC package contents list, so confirm the exact antenna and mounting accessories supplied with the LC receiver revision.
