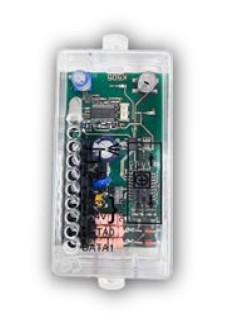

Transmitter Solutions RECTSWIE433-ADJ 433 MHz Adjustable Wiegand Receiver Compatibility Details
The Transmitter Solutions RECTSWIE433-ADJ is a HIVE 433 MHz adjustable-range Wiegand receiver for compatible access control transmitter applications. The receiver operates at 433.92 MHz using AM/ASK demodulation and provides 26-bit Wiegand DATA0 and DATA1 outputs.
The adjustable receiver includes a T1 sensitivity trimmer that allows receiver sensitivity to be adjusted for the installation. This can be useful where the receiver's effective radio coverage needs to be managed rather than simply operating at maximum available sensitivity.
The supplied catalog SKU is RECTSWIE433-ADJ. The official Transmitter Solutions adjustable receiver manual identifies the receiver board as RECTSWEI433. Verify the physical product label and adjustable-range hardware before replacing an existing receiver because the current public manufacturer documentation does not separately print the RECTSWIE433-ADJ catalog suffix.
What the Adjustable 433 MHz Receiver Does
The receiver accepts supported 433 MHz transmitter signals, applies its programmed manufacturer-key, facility-code, and button-type checks, and sends approved transmitter information through 26-bit Wiegand DATA0 and DATA1 outputs.
This is a Wiegand receiver. It is not documented with a standalone Normally Open or Normally Closed dry-contact relay for direct gate operator activation. The connected access control panel or compatible downstream controller must process the Wiegand credential and provide the required access command.
433.92 MHz Adjustable Sensitivity Operation
The official adjustable receiver manual identifies a T1 trimmer for sensitivity adjustment. The documented input sensitivity range is -40 to -80 dBm.
Adjusting T1 changes receiver sensitivity. It does not change the 433.92 MHz operating frequency, convert the receiver to another transmitter protocol, change the Wiegand format, or program an incompatible remote.
Receiver sensitivity should be set for the actual access area. Excessive receiver coverage can be undesirable at sites where transmitters should only be accepted near the intended gate, parking entrance, or controlled access point.
Linear, Sentex, and DoorKing Compatibility Options
Current Transmitter Solutions HIVE Wiegand receiver information lists compatibility with Linear, Sentex, and DoorKing applications. The adjustable 433 MHz manual also documents a receiver manufacturer-key check and states that a transmitter with the wrong manufacturer key is rejected.
Do not assume one RECTSWIE433-ADJ receiver automatically accepts Linear, Sentex, and DoorKing transmitters simultaneously. The exact compatibility option, manufacturer key, transmitter family, facility code, and receiver configuration must match the system being serviced.
When replacing an existing receiver, verify the original transmitter model and the exact receiver label. A 433 MHz remote from another protocol should not be considered compatible based on frequency alone.
26-Bit Wiegand Output Details
The adjustable receiver manual documents fixed 26-bit Wiegand output through open-collector DATA0 and DATA1 connections.
The documented 26-bit Wiegand frame is composed of:
- 1 even parity bit
- 6-bit facility code
- 18-bit transmitter serial number
- 1 odd parity bit
The Wiegand frame does not include transmitter button-type information. The connected access control system receives the documented facility code and serial number data in the 26-bit frame.
Receiver Initialization and Facility Code Filtering
The adjustable receiver does not send an approved Wiegand credential until the receiver has been initialized with a supported transmitter combination. The receiver checks the transmitter manufacturer key and can filter by facility code and button type.
The manufacturer manual documents an option to disable facility-code checking while retaining button-code checking. On managed access control systems, do not change facility-code filtering simply to make an unidentified remote operate. Confirm the approved facility code and credential management requirements first.
Documented Receiver Memory
The receiver EEPROM is documented to store up to 50 different facility-code and button-type combinations.
Supported transmitter button types are:
- Button A
- Button B
- Button C
- Button D
The manual specifically states that combined button types such as A+B or C+D are not allowed for this adjustable receiver programming method.
The 50-combination specification refers to facility-code and button-type combinations. It should not be described as a 50-transmitter serial-number capacity.
Antenna and Coax Requirements
The adjustable receiver provides separate Antenna Core and Antenna Shield terminals. The manufacturer manual specifies shielded RG58 cable with 50 Ohm impedance for the antenna connection.
The manual also identifies a 50 Ohm receiver input load and documents a 0 to 80 meter range with a wire antenna. Actual operating distance depends on sensitivity adjustment, transmitter condition, antenna position, coax condition, nearby metal, interference, and the installation site.
The manufacturer's current HIVE receiver page lists an optional coax antenna, while the current receiver cut sheet states that a coax antenna and wiring harness are included. The adjustable receiver manual does not separately provide a package-content list. Confirm the exact RECTSWIE433-ADJ package contents when a coax antenna or wiring harness is required.
Terminal Connections
- Terminal 1 - Antenna Core
- Terminal 2 - Antenna Shield
- Terminal 3 - Power Ground
- Terminal 4 - 12-24 VAC/DC power supply
- Terminal 5 - DATA0 open-collector output
- Terminal 6 - DATA1 open-collector output
The terminal arrangement shown for the adjustable receiver differs from the separate non-adjustable RECTSWEI433 manual. Do not transfer wiring by terminal number from a similar-looking 433 MHz receiver without checking the actual receiver board and applicable manual.
RECTSWIE433-ADJ and Standard RECTSWEI433 Are Not Automatically Interchangeable
The adjustable receiver manual shows T1 sensitivity control and a six-terminal layout with the antenna connected at terminals 1 and 2. The separate standard 433 MHz receiver manual shows no T1 sensitivity trimmer and uses a different eight-position terminal arrangement with antenna connections at terminals 7 and 8.
Both receivers are documented at 433.92 MHz with 26-bit Wiegand output, but the sensitivity specification, receiver layout, terminal arrangement, and programming details are not identical. Verify the physical receiver before moving wiring or ordering a replacement.
Not Intended For
- 295 MHz transmitter systems
- 318 MHz transmitter systems
- 418 MHz transmitter systems
- 30-bit Wiegand applications
- OSDP reader communication
- Standalone dry-contact relay control without a compatible Wiegand controller
- Universal 433 MHz remote reception based on frequency alone
Features and Specifications
| Feature | Specification |
| Brand | Transmitter Solutions |
| Catalog Part Number | RECTSWIE433-ADJ |
| Adjustable Manual Board Reference | RECTSWEI433 |
| Product Type | Adjustable-range Wiegand receiver |
| Receiver Type | Superheterodyne |
| Demodulation | AM/ASK |
| Operating Frequency | 433.92 MHz |
| Sensitivity Adjustment | T1 trimmer |
| Input Sensitivity | -40 to -80 dBm |
| Input Load | 50 Ohm |
| Power Supply | 12-24 VAC/DC |
| Current Consumption | 24 mA |
| Documented Wire Antenna Range | 0-80 m |
| Output Type | Wiegand |
| Wiegand Format | 26-bit |
| Wiegand Outputs | DATA0 and DATA1, open collector |
| Maximum Output Current | 250 mA |
| Memory Capacity | Up to 50 facility-code and button-type combinations |
| Documented Button Types | A, B, C, D |
| Antenna Cable | Shielded RG58, 50 Ohm |
| Documented Wiegand Cable Distance | Approximately 50 m maximum with shielded cable |
| Operating Temperature | -20C to +70C |
| Dimensions | 4.13 x 1.77 x 1.1 in |
| Weight | 65 g |
| Housing Protection | IP2X |
| Installation Environment | Indoor enclosure |
| Dry-Contact Relay Output | Not documented |
Package Contents Require Confirmation
Current Transmitter Solutions HIVE receiver documentation is not consistent on coax antenna package contents. The current product page identifies a wire harness and an optional coax antenna, while the HIVE receiver cut sheet states that a coax antenna and wiring harness are included. The adjustable receiver manual does not separately itemize package contents.
Confirm whether the specific RECTSWIE433-ADJ package includes the receiver, wiring harness, coax antenna, or other antenna hardware before ordering a complete installation.
Technician Note
The main ordering mistake with this receiver is treating "433 MHz" as the whole compatibility answer. The adjustable manual checks the transmitter manufacturer key, facility code, and button type. The HIVE family page lists Linear, Sentex, and DoorKing compatibility, but that does not prove one receiver accepts every protocol at the same time. Match the exact compatibility option and transmitter family, then verify that the access control panel accepts 26-bit Wiegand.
Before Ordering Checklist
- Verify the catalog SKU RECTSWIE433-ADJ and the physical receiver label.
- Confirm the receiver has the T1 adjustable sensitivity trimmer.
- Verify 433.92 MHz operation is required.
- Identify the exact transmitter manufacturer and model.
- Confirm the required Linear, Sentex, or DoorKing compatibility option.
- Verify the transmitter manufacturer-key and facility-code requirements.
- Confirm the access control panel accepts 26-bit Wiegand.
- Verify DATA0 and DATA1 wiring requirements.
- Confirm 12-24 VAC/DC power is available.
- Check the antenna connection and RG58 50 Ohm coax requirement.
- Confirm the required receiver sensitivity and access coverage area.
- Verify whether a coax antenna and wiring harness are included with the exact package.
Installation and Service Notes
Receiver and antenna position can directly affect radio performance. The manufacturer manual recommends locating the receiver away from large magnetic fields and radio interference and using shielded RG58 50 Ohm cable for the antenna connection.
Set receiver sensitivity for the intended access area and test operation from normal vehicle or pedestrian approach positions. Do not use the T1 sensitivity adjustment as a substitute for diagnosing damaged coax, poor antenna placement, weak transmitter batteries, or incompatible transmitters.
For unknown Wiegand wiring, damaged access control power circuits, or unclear credential-format problems, use a qualified gate or access control technician. Do not bypass gate safety devices, entrapment protection, emergency access, or fire access functions while testing receiver operation.
Product Questions and Answers
Is RECTSWIE433-ADJ the same part number shown in the Transmitter Solutions adjustable receiver manual?
The supplied catalog SKU is RECTSWIE433-ADJ, while the official adjustable 433 MHz receiver manual identifies the receiver board as RECTSWEI433. Verify the physical product label and T1 sensitivity trimmer before replacing an existing adjustable receiver.
Does RECTSWIE433-ADJ work with Linear, Sentex, and DoorKing transmitters at the same time?
Do not assume simultaneous multi-protocol compatibility. The HIVE receiver family documentation lists Linear, Sentex, and DoorKing compatibility, while the adjustable receiver manual documents manufacturer-key checking. Confirm the exact compatibility option and transmitter family before ordering.
What does the T1 trimmer adjust on RECTSWIE433-ADJ?
The T1 trimmer adjusts receiver sensitivity within the documented -40 to -80 dBm range. It does not change the 433.92 MHz frequency, Wiegand format, or transmitter protocol.
What Wiegand format does the adjustable 433 MHz receiver output?
The receiver outputs 26-bit Wiegand through open-collector DATA0 and DATA1 connections. The documented frame contains a 6-bit facility code, an 18-bit transmitter serial number, and the required parity bits.
How many transmitter combinations can the RECTSWIE433-ADJ receiver store?
The adjustable receiver manual documents storage for up to 50 facility-code and button-type combinations. This is not described as a 50-transmitter serial-number capacity. Supported button types are A, B, C, and D.
Does RECTSWIE433-ADJ have a relay output for direct gate operator control?
No standalone dry-contact relay output is documented. The receiver provides open-collector Wiegand DATA0 and DATA1 outputs for connection to a compatible access control system.
Is a coax antenna included with RECTSWIE433-ADJ?
Current Transmitter Solutions documents conflict on antenna package contents. The receiver product page lists an optional coax antenna, while the HIVE cut sheet states that a coax antenna and wiring harness are included. Confirm the exact RECTSWIE433-ADJ package before ordering.
What should I verify before ordering Transmitter Solutions RECTSWIE433-ADJ?
Verify the catalog SKU and physical receiver label, T1 adjustable sensitivity control, 433.92 MHz frequency, Linear, Sentex, or DoorKing compatibility option, transmitter family, facility code, 26-bit Wiegand requirement, 12-24 VAC/DC power, antenna connection, and package contents.
