Transmitter Solutions TRAITASATL2641E16 433 MHz Rolling Code Compatibility Details

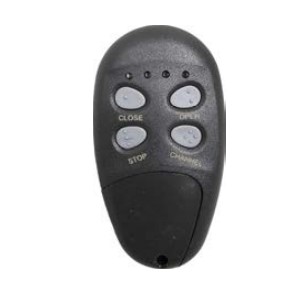

The Transmitter Solutions TRAITASATL2641E16 is identified as a black, four-button visor-style transmitter operating at 433 MHz with rolling code technology. This transmitter should be matched to a receiver system using the same radio frequency, rolling code protocol, and transmitter generation.
Exact public compatibility with specific receiver or operator models could not be fully confirmed from current Transmitter Solutions documentation. The complete transmitter label and installed receiver model should be checked before ordering this remote as a replacement or additional transmitter.
What This Transmitter Does
The TRAITASATL2641E16 provides four physical transmitter buttons for wireless control through a matching 433 MHz rolling code receiver system. Depending on the compatible receiver installation, separate buttons may be assigned to different authorized receiver channels or controlled access points.
Rolling code transmitters are not programmed by copying a DIP-switch pattern. The transmitter and receiver must use a compatible rolling code radio system, and the transmitter normally requires enrollment according to the procedure for the matching receiver generation.
Verified Product Characteristics
- 433 MHz operating frequency.
- Four physical transmitter buttons.
- Rolling code transmitter type.
- Visor-style transmitter housing.
- Black transmitter color.
Exact Receiver Compatibility Requires Confirmation
Exact public receiver compatibility for TRAITASATL2641E16 could not be fully confirmed from current Transmitter Solutions documentation. Do not assume that every Transmitter Solutions or third-party 433 MHz receiver will recognize this transmitter.
For replacement work, verify the complete old transmitter identification and the receiver model number. The receiver must support the same 433 MHz rolling code protocol and product generation.
Rolling Code Is Different From DIP-Switch Coding
The TRAITASATL2641E16 is identified as a rolling code transmitter. It should not be confused with a fixed-code remote that uses internal DIP switches to establish the transmitter code.
A rolling code receiver and a DIP-switch receiver may operate in the same 433 MHz frequency range while using completely different coding systems. Matching frequency does not make the transmitters interchangeable.
Current 433 MHz Transmitter Families Are Not Automatic Replacements
Current Transmitter Solutions documentation separates its 433 MHz transmitters into DIP-switch and programmable transmitter families. Current listed products include Stinger2, Firefly3, Monarch, and Stingray models.
Current models such as 433TSD21V2, 433TSD22V2, 433TSD21K3, 433TSD22K3, 433TSPW1K-C, 433TSPW2K-C, FLA433TSPW4K2, 433TSPW1V, 433TSPW2V, and 433TSPW4V should not be treated as automatic replacements for TRAITASATL2641E16. Exact radio protocol compatibility must be confirmed before changing transmitter families.
Four-Button Application
The TRAITASATL2641E16 has four physical push buttons. A four-button transmitter may be used with a compatible multi-channel receiver arrangement, but the number of transmitter buttons does not prove compatibility with a particular four-channel receiver.
Verify how the existing transmitter buttons are assigned before replacing the remote. For multi-gate, gate-and-garage, or multiple-access-point systems, record which button currently operates each authorized receiver.
Features and Specifications
| Feature | Specification |
| Brand | Transmitter Solutions |
| Catalog SKU | TRAITASATL2641E16 |
| Product Type | Wireless visor transmitter |
| Operating Frequency | 433 MHz |
| Number of Buttons | 4 |
| Coding Type | Rolling code |
| Color | Black |
| Mounting Style | Visor-style transmitter |
| Specific Receiver Models | Exact public compatibility could not be fully confirmed |
| Programming Method | Verify matching rolling code receiver enrollment procedure |
| Battery Type | Verify physical transmitter or applicable legacy manufacturer documentation |
| Package Contents | Confirm current package contents when battery or visor clip inclusion is required |
Similar Parts Are Not Automatically Interchangeable
A 433 MHz four-button DIP-switch transmitter is not an automatic replacement for this rolling code transmitter. DIP-switch models use fixed coding and require a compatible fixed-code receiver.
Current Transmitter Solutions 433 MHz programmable transmitters are also separate product models. Do not substitute a Stingray or Monarch transmitter solely because the remote operates at 433 MHz.
The previously identified TRAITASATL39433E16 is described as a white 433 MHz four-button transmitter with 16 selectable channels. It should not automatically be substituted for the black rolling code TRAITASATL2641E16. The channel system and rolling code protocol must be matched to the receiver.
Also Known As and Product References
- TRAITASATL2641E16 - supplied Gate Openers Unlimited catalog SKU.
- 433 MHz four-button rolling code visor transmitter.
- Black 433 MHz rolling code remote.
Technician Note
The biggest ordering mistake with TRAITASATL2641E16 is matching only "433 MHz" and "4 button." Those two specifications do not identify the radio protocol. This transmitter is identified as rolling code, so check the complete old remote label and receiver model. A 433 MHz DIP-switch or different programmable transmitter may look suitable but may never enroll to the receiver.
Before Ordering Checklist
- Verify the complete TRAITASATL2641E16 catalog or transmitter identification.
- Confirm the receiver operates at 433 MHz.
- Record the exact installed receiver model number.
- Verify the receiver supports the matching rolling code radio protocol.
- Confirm four physical transmitter buttons are required.
- Record which existing button operates each gate, door, or authorized receiver channel.
- Do not order a DIP-switch transmitter as a rolling code replacement.
- Do not substitute a current 433 MHz transmitter family without confirmed receiver compatibility.
- Check the physical transmitter for battery type before ordering a replacement battery.
- Confirm package contents when battery or visor clip inclusion is important.
Programming and Service Notes
Use the transmitter enrollment procedure specified for the matching rolling code receiver. Exact public programming instructions for TRAITASATL2641E16 could not be fully confirmed from current manufacturer documentation.
Do not copy programming steps from a DIP-switch transmitter or a different 433 MHz rolling code family. If an existing authorized transmitter works and the replacement will not enroll, verify the receiver model, transmitter protocol, receiver memory status, and applicable programming procedure.
If the transmitter operates only at very short range, check the transmitter battery and inspect the receiver antenna installation. Radio interference or receiver problems can also reduce range. Receiver wiring or operator input faults should be diagnosed by a qualified gate, garage door, or access control technician when the failure is unclear.
Professional Advisory
Do not bypass photo eyes, monitored safety edges, entrapment protection, door reversal systems, or operator safety circuits to correct a transmitter or receiver problem. If the receiver, operator input, or access control wiring has an electrical or safety-circuit fault, have the system inspected by a qualified gate, garage door, or access control technician.
Product Questions and Answers
Is TRAITASATL2641E16 compatible with every 433 MHz receiver?
No. Matching 433 MHz frequency does not prove compatibility. The receiver must support the same rolling code radio protocol and transmitter generation used by TRAITASATL2641E16.
Does TRAITASATL2641E16 use DIP switches?
The TRAITASATL2641E16 is identified as a rolling code transmitter, not a fixed-code DIP-switch transmitter. Do not order it as a replacement for a DIP-switch remote without confirmed receiver compatibility.
Which receiver models are compatible with TRAITASATL2641E16?
Exact public receiver model compatibility could not be fully confirmed from current Transmitter Solutions documentation. Verify the installed receiver model and complete old transmitter label before ordering.
Can I replace TRAITASATL2641E16 with a Transmitter Solutions 433TSPW4V?
Do not substitute the 433TSPW4V automatically. It is a separate current Transmitter Solutions 433 MHz programmable transmitter model. Exact protocol compatibility with TRAITASATL2641E16 must be confirmed before changing transmitter families.
Is the white TRAITASATL39433E16 the same as the black TRAITASATL2641E16?
No automatic interchangeability has been confirmed. TRAITASATL39433E16 is identified as a four-button transmitter with 16 selectable channels, while TRAITASATL2641E16 is identified as a rolling code transmitter. Verify the receiver system before substituting either model.
How is the TRAITASATL2641E16 programmed to a receiver?
Use the enrollment procedure for the matching rolling code receiver. Exact public programming instructions for TRAITASATL2641E16 could not be fully confirmed, so do not use DIP-switch or unrelated 433 MHz transmitter instructions.
What battery does the TRAITASATL2641E16 use?
The exact battery specification could not be positively confirmed from current public manufacturer documentation. Check the physical transmitter battery compartment and product label before ordering a replacement battery.
What should I check if an existing remote works but TRAITASATL2641E16 will not program?
Verify the exact receiver model, 433 MHz frequency, rolling code protocol, receiver memory status, and correct enrollment procedure. If those items match and programming still fails, the receiver or access control system may require diagnosis by a qualified technician.
