US Automatic 630007 Patriot Actuator Wiring Harness 8 ft with Connectors

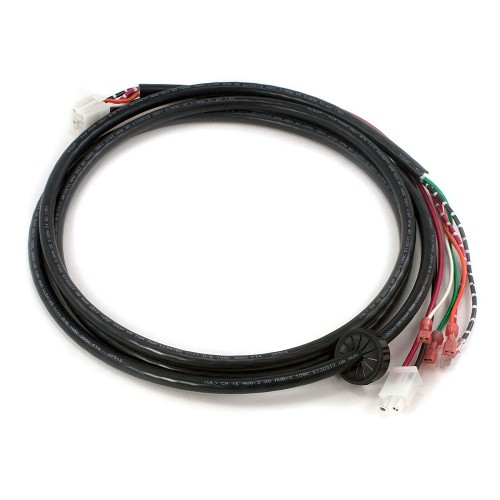

The US Automatic 630007 is an 8 ft actuator wiring harness used with compatible Patriot linear actuator assemblies. It includes the connectors needed to replace a damaged or deteriorated actuator harness without replacing the complete actuator.
A failed harness can cause symptoms that look like a bad control board or actuator, including intermittent movement, no movement in one direction, blown fuses, low-voltage faults, or inconsistent limit behavior. Before replacing expensive electronics, inspect the harness for cuts, corrosion, crushed jacket, loose pins, or moisture inside the connector.
This harness is commonly referenced as the replacement for older 630006 harnesses, but it still must match the actuator and connector style in the field. Routing matters because swing gate arms move every cycle and can damage an incorrectly positioned cable.
Compatible With
- Select US Automatic Patriot swing gate linear actuator applications using the matching 8 ft harness and connector style
- Older Patriot actuator harness reference 630006 where 630007 is the supported replacement
- Patriot actuator service where the original harness includes the same connectors and length
- Not for Patriot RSL slide operators, Ranger 500 actuators, Ranger HD actuators, Sentry 300 actuators, or non-US Automatic harnesses unless specifically documented
Features and Specifications
| Manufacturer | US Automatic / USAutomatic |
|---|
| Product Type | Actuator wiring harness |
|---|
| Part Number | 630007 |
|---|
| Application | Select Patriot swing gate actuator wiring |
|---|
| Length | 8 ft |
|---|
| Included Components | Harness with connectors |
|---|
| Related Old Number | 630006 |
|---|
| Notes | Match connector style and actuator application before ordering |
|---|
Also Known As / Related Part Numbers
- 630007
- US-630007
- 630006 replacement
- Patriot actuator harness
- Patriot 8 ft actuator cable
- Patriot actuator wiring harness with connectors
- USAutomatic 630007
Technician Note
Harness failures are often caused by cable movement, bad routing, UV exposure, rodents, or water entry at the connector. Replace the harness only after checking that the actuator and control board are not being damaged by a shorted circuit.
Before Ordering Checklist
- Confirm the actuator is a compatible Patriot linear actuator
- Compare connector style, pin count, and cable length to the old harness
- Check whether the old part number is 630006 or 630007
- Inspect actuator grommets, strain relief, and cable routing
- Test batteries and board outputs if the actuator still does not move after harness replacement
Professional Advisory
Do not splice actuator wiring casually in a moving gate arm area. Poor splices can create voltage drop, intermittent limits, or water intrusion that damages the board or actuator.
Product Questions and Answers
What does the 630007 harness replace?
The 630007 harness is commonly listed as the direct replacement for older US Automatic 630006 Patriot actuator harness references.
Is this harness 8 feet long?
Yes. It is commonly listed as an 8 ft Patriot actuator wiring harness with connectors.
Can this be used on a Patriot RSL slide opener?
No. This is written for compatible Patriot swing actuator wiring, not Patriot RSL slide operator wiring.
What symptoms can a bad actuator harness cause?
A damaged harness can cause intermittent actuator movement, no movement, blown fuses, false limit issues, or poor connection at the actuator plug.
Should I replace the whole actuator instead?
Not always. If the actuator is good and only the harness or connectors are damaged, replacing the harness may be the correct service path. Confirm by testing first.
